AutoCAD electrical 2014

Recommended Posts

cadmando2

Working on project that I layout PLC panel I/O modules and wiring diagrams.

I use the insert PLC modules command and have inserted most of the modules but 1769-ASCII card I can't find in the Parametric list.

has anyone created a 1769-ASCII block.

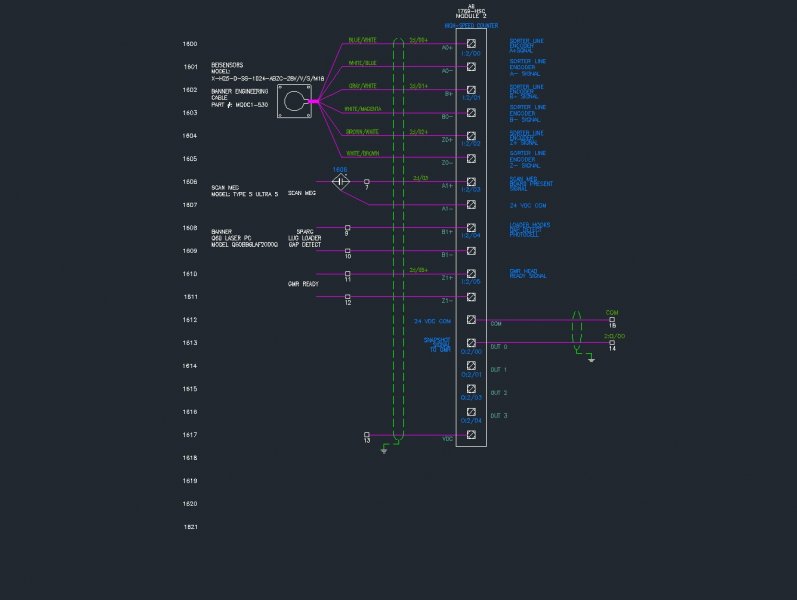

Hear is a sample typical I/O card12025-1324-SD-N013.jpg


Share this post


Link to post
Share on other sites
Kemphas

2015 doesn't have it in the library. It would be quicker for you to make it than wait for a response here...



I would recommend u make it in the MDB file rather than the parametric PLC editing tool it would be much quicke.
