Dim text linked to another Dim using a dynamic text field

Recommended Posts

Manila Wolf

That very helpful chap Lee Mac compiled a very good lisp for me called Dim2Att. (See Code below). It links a dimension text to an attribute as a field.

Can this lisp be easily modified to link a dimension text to a 2nd dimension text as a field? Hopefully Lee or indeed somebody else may be able to help.



This process can be done manually in the following way, but a lisp would of course be so much quicker: -

1. Using "DDEDIT" select your target dim.

2. DELETE the original text (the dimension value).

3. Click the "Insert Field" button or press "Ctrl F".

4. Under field category choose "Objects" and under field names choose "Object".

5. Under object type, Select your source dimension.

6. Under property, choose "Measurement".

7. Under format chose "Current Units".

8. Under additional format, choose to "Suppress trailing Zero's".





;; Link Dimension to Attribute  -  Lee Mac
;; Prompts for selection of a Dimension and references the Dimension
;; value using a Field located in a selected block attribute.
;; http://www.cadtutor.net/forum/showthread.php?66989-Highligting-a-selection&highlight=dim2att.lsp
;; Minor mod by Mark D to suppress trailing Zero's

(defun c:Dim2Att ( / *error* ad at el en g1 g2 gr ms ob p1 st )

   (defun *error* ( msg )
       (if en (redraw en 4))
       (if ad (vla-endundomark ad))
       (if (not (wcmatch (strcase msg) "*BREAK,*CANCEL*,*EXIT*"))
           (princ (strcat "\nError: " msg))
       )
       (redraw) (princ)
   )

   (while
       (progn (setvar 'ERRNO 0) (setq en (car (entsel "\nSelect Dimension to Link: ")))
           (cond
               (   (= 7 (getvar 'ERRNO))
                   (princ "\nMissed, try again.")
               )
               (   (eq 'ENAME (type en))
                   (if (not (wcmatch (cdr (assoc 0 (entget en))) "*DIMENSION"))
                       (princ "\nObject is not a Dimension.")
                   )
               )
           )
       )
   )
   (if en
       (progn
           (setq ad (vla-get-activedocument (vlax-get-acad-object))
                 el (entget en)
                 p1 (trans (cdr (assoc 11 el)) en 1)
                 ob (vlax-ename->vla-object en)
                 st (strcat
                        "%<\\AcObjProp Object(%<\\_ObjId "
                        (if
                            (and
                                (vl-string-search "64" (getenv "PROCESSOR_ARCHITECTURE"))
                                (vlax-method-applicable-p (vla-get-utility ad) 'getobjectidstring)
                            )
                            (vla-getobjectidstring (vla-get-utility ad) ob :vlax-false)
                            (itoa (vla-get-objectid ob))
                        )
                        (if (eq "" (cdr (assoc 1 el)))
                            ;">%).Measurement \\f \"%lu6\">%"
                            ">%).Measurement \\f \"%lu6%zs8\">%"; <<< This line repaces the line above to suppress trailing Zero's - By Mark D.
                            ">%).TextOverride>%"
                        )
                    )
           )
           (vla-startundomark ad)
           (redraw en 3)
           (princ (setq ms "\nSelect Attribute to Link to Dimension: "))
           (while
               (progn
                   (setq gr (grread t 13 2)
                         g1 (car  gr)
                         g2 (cadr gr)
                   )
                   (cond
                       (   (= 5 g1)
                           (redraw)
                           (grdraw p1 g2 3 1)
                           t
                       )
                       (   (= 3 g1)
                           (redraw)
                           (if (setq at (car (nentselp g2)))
                               (if (eq "ATTRIB" (cdr (assoc 0 (entget at))))
                                   (progn
                                       (vla-put-textstring (vlax-ename->vla-object at) st)
                                       (vl-cmdf "_.updatefield" at "")
                                       (princ ms)
                                   )
                                   (princ (strcat "\nObject is not an Attribute." ms))
                               )
                               (princ (strcat "\nMissed, try again." ms))
                           )
                           t
                       )
                   )
               )
           )
           (redraw en 4)
           (redraw)
           (vla-endundomark ad)
       )
   )
   (princ)
)
(vl-load-com) (princ)

Share this post


Link to post
Share on other sites
pBe

To clarify, You are wanting to override the dimension value of a dimension entity with a field value from another dimension?



..Missing variable AD... see post#4 for updated code

Edited by pBe

Share this post


Link to post
Share on other sites
Manila Wolf

Hi pBe,

Thanks for responding.



Rather than try and explain in words, I created a quick sample drawing to try and explain the requirement more clearly.

See the attached drawing "Dim2Dim"

On the drawing, Detail A shows what I am hoping to achieve.

Detail B shows a possible but more cumbersome method of achieving the same end result.



There are various others ways to achieve a result i.e. Exploding dims, using a Dynamic block or with multiple viewports, but I am trying to simplify the

process as much as possible.

Dim2Dim.dwg

Share this post


Link to post
Share on other sites
pBe

Oh i see, for one thing there's a missing variable on the code i posted.



First, the dimension style OBLIQUE needs to change to "0" precision at "Primary units" tab on Dimstyle to get rid of the decimal values.

... writing code..



Try this code, then we will do a code clean-up after you give the A-OK.

Edited by pBe

Share this post


Link to post
Share on other sites
Manila Wolf

Hi pBe,



Wow...Nearly there I think. Thank you. I did change one line of the code and it seems to work very well. The precision problem has gone away after this change.

The line I changed is now: - ">%).Measurement \\f \"%lu6%zs8\">%"



I am wondering if the "rubber band" affect that is in Dim2Att.lsp can be incorporated into this one?



Cheers.



(defun c:demo ( / en target ad el p1 ob ad)
 (while
   (and (setq en (car (entsel "\nSelect Source Dimension Value:")))
(setq target (car (entsel "\nSelect Target Dimension Value:")))
   )
;;; snippet from LM c:Dim2Att ;;;
      (setq ad (vla-get-activedocument (vlax-get-acad-object))
el (entget en)
    p1 (trans (cdr (assoc 11 el)) en 1)
    ob (vlax-ename->vla-object en))
  (setq   st (strcat
 "%<\\AcObjProp Object(%<\\_ObjId "
 (if
   (and
     (vl-string-search
"64"
(getenv "PROCESSOR_ARCHITECTURE")
     )
     (vlax-method-applicable-p
(vla-get-utility ad)
'getobjectidstring
     )
   )
    (vla-getobjectidstring
      (vla-get-utility ad)
      ob
      :vlax-false
    )
    (itoa (vla-get-objectid ob))
 )
 (if (eq "" (cdr (assoc 1 el)))
   ">%).Measurement \\f \"%lu6%zs8\">%";<<<<<[b]AMENDED HERE[/b]
   ">%).TextOverride>%"
 )
)
      )

      (setq target (vlax-ename->vla-object target))
      (vla-put-TextOverride target st)
    )
(princ)
)

Share this post


Link to post
Share on other sites
pBe
Hi pBe,



Wow...Nearly there I think. Thank you. I did change one line of the code and it seems to work very well. The precision problem has gone away after this change.

The line I changed is now: - ">%).Measurement \\f \"%lu6%zs8\">%"



Good for you Manila Wolf :)



I am wondering if the "rubber band" affect that is in Dim2Att.lsp can be incorporated into this one?

Also, can a "Regen" be incorprated at the end of the code?

Cheers.



Yes we can do that. Question: will there be more two or more "link" to one dimension value similar to LM_Dim2Att ? or one pair at a time?

Share this post


Link to post
Share on other sites
Manila Wolf

Thanks pBe, I really appreciate your help.



For this lisp I envisage only linking one pair of dims at each run.



Many thanks. :)

Share this post


Link to post
Share on other sites
pBe
Thanks pBe, I really appreciate your help.



For this lisp I envisage only linking one pair of dims at each run.



Many thanks. :)



OK, hang on...

Share this post


Link to post
Share on other sites
Jhun

I'm a newbie in AutoLisp. How can I save your lisp to work on my PC?



Share this post


Link to post
Share on other sites
BIGAL

Open Notepad copy the lisp from here then paste into notepad. Save as say Dimtxtlink.lsp note the .lsp as file name not txt. You need to save some where you can find it. I suggest a directory like c:\Mylisps.



You can use Appload to load the program, a menu or toolbar to load, drag and drop from windows explorer.



To make life easier in Autocad you can use shorthand version for loading a lisp as Autocad knows where to look.

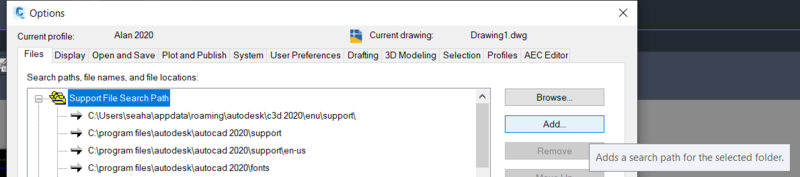

OPTIONS

FILES

Add the directory using ADD

Repeat for

Trusted paths








Share this post


Link to post
Share on other sites
