Small Dimensioning Question...Again

Recommended Posts

Akitirija

Hi again.

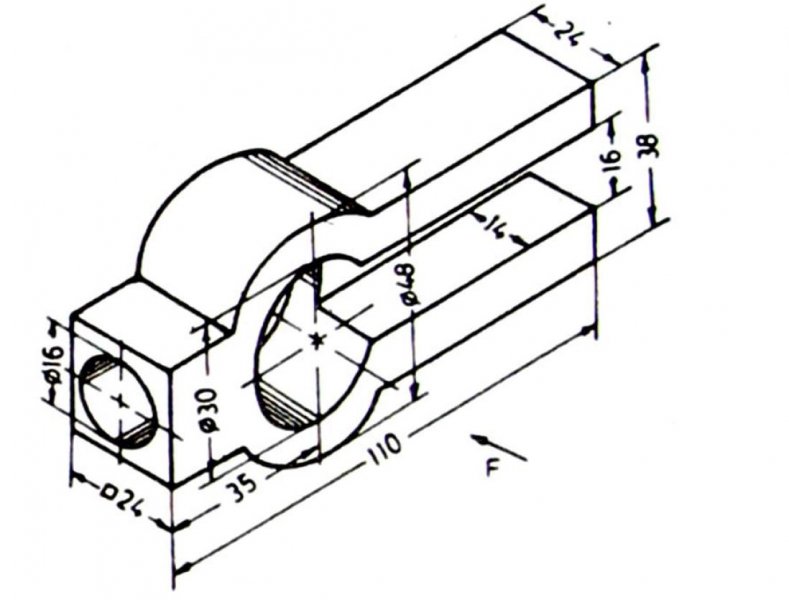

Just a small question concerning dimensions. I've attached a drawing just to use as an example.



Usually, the depths of the holes seem to be undefined. Does this automatically imply "to the next surface"? Or is it just because the drawings are ment for students and thus it does not much matter?



Also, does anyone have any advice on books concerning these questions? I feel like I should use your time (since I feel like I use a lot of it) on SolidWorks related questions instead of design related.:oops:


Share this post


Link to post
Share on other sites
shift1313

Typically there would be a note ot GD&T icon for it. Id say it goes into the 30mm bore. Cant really go much deeper without going into the back 2mm of the back wall.

Share this post


Link to post
Share on other sites
Akitirija

Thanks, shift1313!
