What is this feature called?

Recommended Posts

chubarka

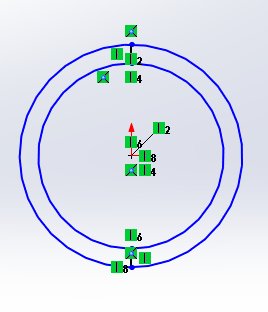

I have attached an image of a feature in Solidworks that I am unfamiliar with. I am speaking of the small square green labels that are peppered throughout the sketch. Would someone please tell me the name of the feature and where to toggle it off?

Thanking you in advance is:

Chubarka


Edited by chubarka

Share this post


Link to post
Share on other sites
shift1313

Those are sketch relations. The things like "concentric" to keep 2 circles center points aligned. You can toggle the view from the glasses icon on the heads up display(top center of the modeling window) or through the edit menu. You can choose to hide just that display type. Not that when you hide them you will still see relations that apply when you select a sketch entity.

Share this post


Link to post
Share on other sites
chubarka

Thank you!
