Pipe profile view invert levels

Dolan

By Dolan
in Civil 3D & LDD

 Share

Recommended Posts

Dolan Newbie

Dolan

Posted
Posted

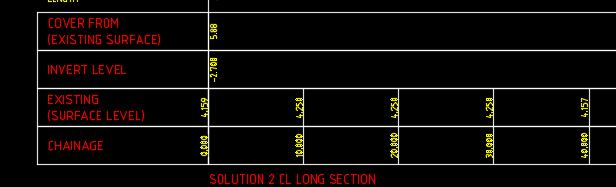

I am new to Civil 3d and mainly work with pipes. I am trying to set up my profile views. I want my profile to view levels at set chainages (major and minor stations) see attached image. I have not been successful at this hence my post. can anyone help with this. My hope is for this to remain in the bands and therefore automated.
