Cut polymesh with another polymesh?

Recommended Posts

vanowm

Hello.

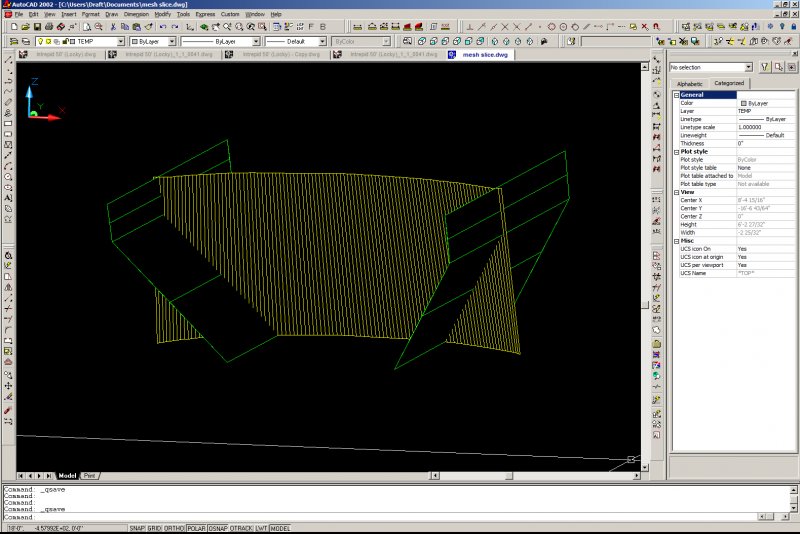

I have a polimesh (yellow) that I need to cut with another polimesh (green)



How can I do that?



Thank you.



P.S.

Using AutoCAD 2002

mesh slice.jpg

mesh slice.dwg

Edited by vanowm
Updated .dwg

Share this post


Link to post
Share on other sites
ReMark

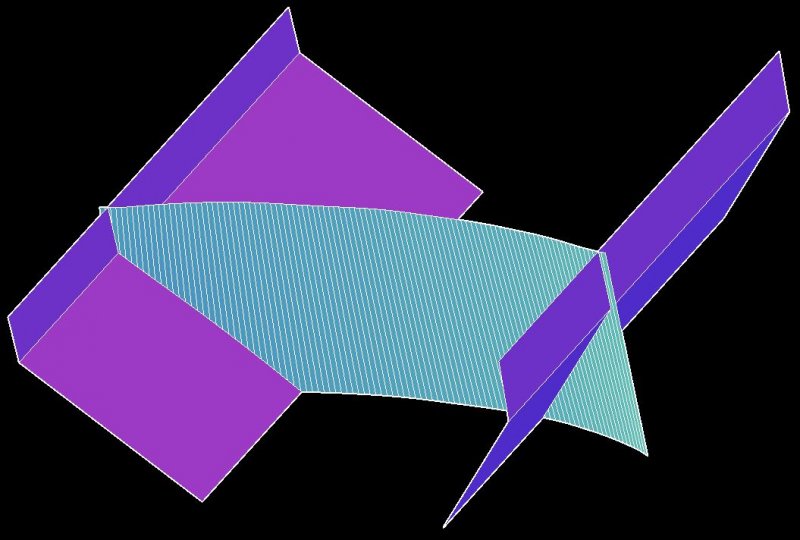

I had no luck slicing your polymesh. I also had no luck converting it to a surface. So I redrew the base geometry using 3Dpolylines which I then lofted to created lofted surfaces at which point I was able to slice the yellow colored object in your drawing. This is the result. It's cyan colored because I drew my new geometry on two different layers with distinctly different colors. Only the result of the slice is depicted.




Share this post


Link to post
Share on other sites
ReMark

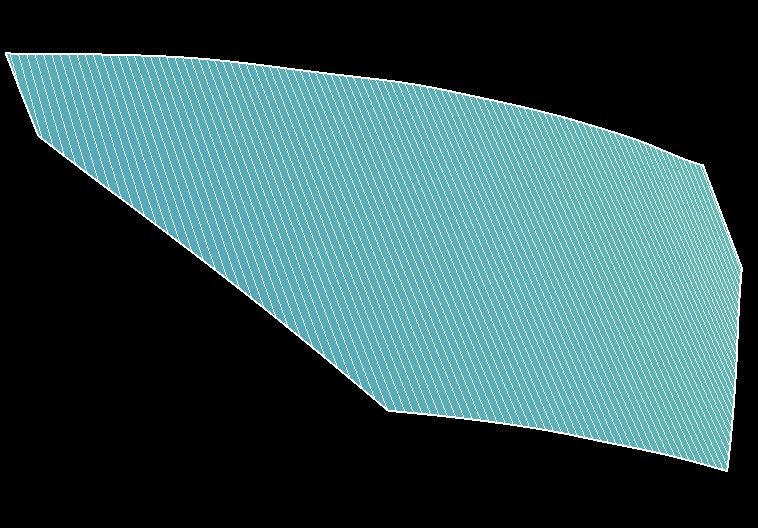

All three pre-slice objects....




Share this post


Link to post
Share on other sites
vanowm

Unfortunately LOFT is not available in ACAD 2002

Share this post


Link to post
Share on other sites
ReMark

Did you use EDGESURF to create your meshes originally?

Share this post


Link to post
Share on other sites
vanowm

No, I use RULESURF



I have top and bottom splines between which RULESURF was used to create mesh. Later I "unfold" it to make it flat.



P.S.

Updated .dwg sample

Edited by vanowm

Share this post


Link to post
Share on other sites
