How to offset multiple polyline from one segment

[handasa]

Greetings everyone ...

iam looking for a way to solve this problem



i have a lisp that conncect multiple blocks to one base block in the drawing

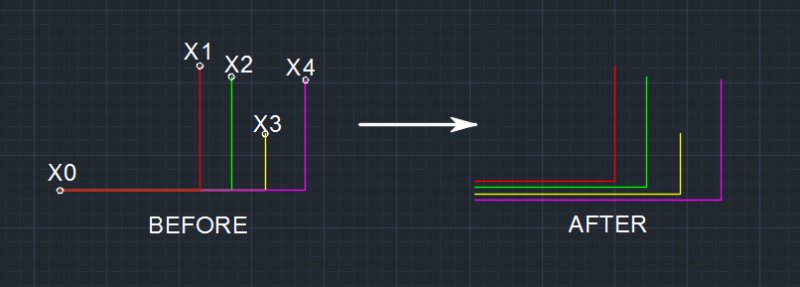

... it will draw polylines as the case called "before" in this attached image



the resulted polylines will coincide at the base point ...

so i want to sort these polylines by there dist=(Xn-X0) distance

so that the polyline with the smaller dist will be offseted higher and so on ...



only the coincide segment will be offseted ... X1 TO Xn will keep their locations

any suggestions ?



thank you in advance

[BIGAL]

Getting the order is easy if you use ssget "F" fence option and drag over verticals it will select them in correct order.



(setq lst (list (getpoint"pick left") (getpoint "Pick Right"))) ; pick left and right
(setq ss (ssget "f" lst)) ; make selection set
(setq obj (ssname ss x)) ; x starts at 0 and is (- (sslength ss) 1) long



What appears to me is to offset plines down then reset the last vertice Y value. I dont have anything right now so may post later on.

[handasa]

iam working to modify this lisp

 Copyright(c)2005-2011 Version 3.0(US)
  Tom Davis (tdavis@metzgerwillard.com)

;------------------------------------------------------------------------------
(defun c:reverse ( / oldecho oldsnap ent e etyp)
 ;reverse text, line, arc, circle, ellipse, spline, or polyline
 (setq oldecho (getvar "cmdecho")
       oldsnap (getvar "osmode")
 )
 (setvar "cmdecho" 0)                                           ;turn off echo
 (if (< oldsnap 16384) (setvar "osmode" (+ oldsnap 16384)))     ;turn off osnap
 (command "_select" "")                                         ;deselect all
 (while (setq ent (nentsel "\nSelect reversible object: "))
   (setq e    (car ent)
         etyp (cdr (assoc 0 (entget e)))
   )
   ;exclude block components that are neither text nor hatching
   (if (or (< (length ent) 4)(= etyp "TEXT")(= etyp "MTEXT")(= etyp "HATCH"))
     (progn
       (while (= (cdr (assoc 0 (entget e))) "VERTEX")           ;skip vertices
         (setq e (entnext e))
       )
       (if (= (cdr (assoc 0 (entget e))) "SEQEND")              ;get hwpolyline
         (setq e (cdr (assoc -2 (entget e))))                   ;    or ellipse
       )
       (setq etyp (cdr (assoc 0 (entget e))))
       (princ etyp)
       (command "_undo" "_begin")
       (cond
         ((= etyp "LWPOLYLINE")(revlwpline e))
         ((= etyp "POLYLINE")  (revhwpline e))
         ((= etyp "LINE")      (revline    e))
         ((= etyp "ARC")       (revarc     e))
         ((= etyp "CIRCLE")    (revcircle  e))
         ((= etyp "HATCH")     (revhatch   e))
         ((= etyp "ELLIPSE")   (revellipse e))
         ((= etyp "MTEXT")     (revmtext   e))
         ((= etyp "TEXT")      (revtext    e etyp))
         ((= etyp "ATTRIB")    (revtext    e etyp) (entupd e))
         ((= etyp "RTEXT")     (revrtext   e))
         ((= etyp "SPLINE")    (command "_splinedit" e "_e" ""))
       )
       (if (> (length ent) 3)(entupd (car (cadddr ent))))       ;block text
                                                                ;or hatching
       (command "_undo" "_end")
     )
     (princ "INSERT")
   )
 )
 (setvar "cmdecho" oldecho)
 (setvar "osmode"  oldsnap)
 (princ)
)
;------------------------------------------------------------------------------
;LWPOLYLINE

(defun revlwpline (e / footer done vertices header flag)
 ;reverse lightweight polyline
 (foreach item (reverse (entget e))
   (cond
     ((not done)
       (cond
         ((= (car item) 40)
           (setq footer (cons (cons 41 (cdr item)) footer)      ;swap width
                 done t
           )
         )
         ((= (car item) 41)
           (setq footer (cons (cons 40 (cdr item)) footer))     ;swap width
         )
         ((= (car item) 42)
           (setq footer (cons (cons 42 (- (cdr item))) footer)) ;negate bulge
         )
         ((= (car item) 210)
           (setq footer (cons item footer))
         )
       )
     )
     ((= (car item) 10)
       (setq vertices (cons item vertices))
     )
     ((= (car item) 40)
       (setq vertices (cons (cons 41 (cdr item)) vertices))     ;swap width
     )
     ((= (car item) 41)
       (setq vertices (cons (cons 40 (cdr item)) vertices))     ;swap width
     )
     ((= (car item) 42)
       (setq vertices (cons (cons 42 (- (cdr item))) vertices)) ;negate bulge
     )
     (t (setq header (cons item header)))
   )
 )
 (setq flag (assoc 70 header))
 (if (< (cdr flag) 128)                 ;turn on linetype generation
   (setq header (subst (cons 70 (+ (cdr flag) 128)) flag header))
 )
 (entmod (append header (reverse vertices) footer))
)
;------------------------------------------------------------------------------
;POLYLINE

(defun revhwpline (e / oldname old ent1 buldge end start ent tangent radians
                      vertex vertices flag)
 ;reverse heavyweight polyline
 (setq oldname  e
       old   (entget oldname)
       e     (entnext e)
       ent1  (entget e)                 ;get first vertex
       bulge (cdr (assoc 42 ent1))
       end   (cdr (assoc 41 ent1))
       start (cdr (assoc 40 ent1))
       e     (entnext e)
       ent   (entget e)                 ;get second vertex
 )
 (while (= (cdr (assoc 0 ent)) "VERTEX")
   (if (= (logand (cdr (assoc 70 ent)) 2) 2)
     (setq tangent (assoc 50 ent)
           radians (- (cdr tangent) pi) ;reverse tangent
           ent     (subst (cons 50 radians) tangent ent)
     )
   )
   (setq vertex   (subst (cons 42 (- bulge))(assoc 42 ent) ent)    ;negate bulge
         vertex   (subst (cons 41 start)    (assoc 41 ent) vertex) ;swap width
         vertex   (subst (cons 40 end)      (assoc 40 ent) vertex) ;swap width
         bulge    (cdr  (assoc 42 ent))
         end      (cdr  (assoc 41 ent))
         start    (cdr  (assoc 40 ent))
         vertices (cons vertex vertices)
         e        (entnext e)
         ent      (entget e)            ;get next vertex or seqend
   )
 )
 (setq flag (assoc 70 old))
 (if (< (cdr flag) 128)                 ;turn on linetype generation
   (setq old (subst (cons 70 (+ (cdr flag) 128)) flag old))
 )
 (entmake old)                          ;make new polyline
 (foreach ent vertices (entmake ent))   ;make new vertices
 (if (= (logand (cdr (assoc 70 ent1)) 2) 2)
   (setq tangent (assoc 50 ent1)
         radians (- (cdr tangent) pi)   ;reverse tangent
         ent1    (subst (cons 50 radians) tangent ent1)
   )
 )
 (setq ent1 (subst (cons 42 (- bulge))(assoc 42 ent1) ent1) ;negate bulge
       ent1 (subst (cons 41 start)    (assoc 41 ent1) ent1) ;swap width
       ent1 (subst (cons 40 end)      (assoc 40 ent1) ent1) ;swap width
 )
 (entmake ent1)                         ;make last new vertex
 (entmake ent)                          ;make new seqend
 (entdel oldname)                       ;delete old polyline
)
;------------------------------------------------------------------------------
;LINE

(defun revline (e / ent start end)
 ;reverse line
 (setq ent   (entget e)
       start (assoc 10 ent)
       end   (assoc 11 ent)             ;swap line endpoints
       ent   (subst (cons 10 (cdr end)) start ent)
       ent   (subst (cons 11 (cdr start)) end ent)
 )
 (entmod ent)
)
;------------------------------------------------------------------------------
;ARC

(defun revarc (e)
 ;reverse arc
 (command "_pedit" e "_y" "_l" "_on" "");turn arc into polyline
 (setq e (entlast))
 (if (> (getvar "plinetype") 0)
   (revlwpline e)
   (revhwpline e)
 )
)
;------------------------------------------------------------------------------
;CIRCLE

(defun revcircle (e / ent radius center pt1 pt2)
 ;reverse circle
 (setq ent    (entget e)
       radius (cdr (assoc 40 ent))
       center (cdr (assoc 10 ent))
       pt1    (mapcar '+ center (list radius 0 0))
       pt2    (mapcar '- center (list radius 0 0))
 )
 (command "_break" e pt1 pt2)                ;turn circle into semicircle
 (command "_pedit" e "_y" "_l" "_on" "_c" "");turn semicircle into closed polyline
 (setq e (entlast))
 (if (> (getvar "plinetype") 0)
   (revlwpline e)
   (revhwpline e)
 )
)
;------------------------------------------------------------------------------
;HATCH

(defun revhatch (e / ent solid item ang pi2 new y)
 ;reverse hatch
 (setq ent   (entget e)
       solid (cdr (assoc 70 ent))                   ;solid fill flag
       pi2   (* 2 pi)
 )
 (cond
   ((= solid 0)                                     ;pattern fill
     (foreach item (reverse ent)
       (cond
         ((or (= (car item) 52) (= (car item) 53))  ;pattern or line angle
           (setq ang (+ (* pi 0.5) (cdr item)))     ;rotate 90°
           (if (>= ang pi2) (setq ang (- ang pi2))) ;normalize angle
           (setq new (cons (cons (car item) ang) new))
         )
         ((or (= (car item) 43) (= (car item) 45))  ;line origin or offset x
           ;rotate line origin or offset 90°: new y = old x; new x = - old y
           (setq new (cons (cons (1+ (car item)) (cdr item)) new)
                 new (cons (cons (car item) (- y)) new))
         )
         ((or (= (car item) 44) (= (car item) 46))  ;line origin or offset y
           (setq y (cdr item))
         )
         (t (setq new (cons item new)))
       )
     )
     (entmod new)
   )
   ((= solid 1)                                     ;solid fill
     (if (= (cdr (assoc 450 ent)) 1)                ;gradient fill
       (progn
         (setq item (assoc 460 ent)                 ;gradient angle
               ang  (+ pi (cdr item))               ;rotate 180°
         )
         (if (>= ang pi2) (setq ang (- ang pi2)))   ;normalize angle
         (setq ent (subst (cons 460 ang) item ent))
         (entmod ent)
       )
     )
   )
 )
)
;------------------------------------------------------------------------------
;RTEXT

(defun revrtext (e / ent ins w h rot ang hd vd new)
 ;reverse rtext
 (command "_explode" e)                         ;explode rtext into mtext
 (setq ent  (entget (entlast))                  ;get mtext
       w    (cdr (assoc 42 ent))                ;width
       h    (cdr (assoc 43 ent))                ;height
 )
 (command "_undo" 1)
 (setq ent  (entget e)                          ;get rtext
       ins  (assoc 10 ent)                      ;insertion point
       rot  (assoc 50 ent)                      ;rotation
       ang  (cdr rot)
       hd   (polar '(0 0 0)    ang           w) ;horizontal displacement
       vd   (polar '(0 0 0) (- ang (/ pi 2)) h) ;vertical displacement
       new  (mapcar '+ (cdr ins) hd vd)         ;new insertion point
       ang  (rem (+ ang pi) (* 2 pi))           ;normalize angle
       ent  (subst (cons 50 ang) rot ent)       ;reverse direction
       ent  (subst (cons 10 new) ins ent)       ;set new insertion point
 )
 (entmod ent)
)
;------------------------------------------------------------------------------
;TEXT or ATTRIB

(defun revtext (e etyp / vc ent box hj vj rot ang p1 p2 h w
                        dist phi hd vd new gf gfs sn p s done)
 ;reverse text or attribute
 (if (= etyp "TEXT")
   (setq vc 73) ;text
   (setq vc 74) ;attribute
 )
 (setq ent (entget e)
       box (textbox ent)                              ;((x1 y1 z1)(x2 y2 z2))
       gf  (cdr (assoc 71 ent))                       ;generation flag
       sn  (cdr (assoc  7 ent))                       ;style name
       hj  (cdr (assoc 72 ent))                       ;horizontal justification
       vj  (cdr (assoc vc ent))                       ;vertical justification
       rot (assoc 50 ent)                             ;rotation
       ang (cdr rot)                                  ;angle
       p1  (assoc 10 ent)                             ;first  alignment point
       p2  (assoc 11 ent)                             ;second alignment point
       h   (cdr (assoc 40 ent))                       ;displacement height
       p   1                                          ;rewind pointer
 )
 (while (not done)                      ;traverse style table
   (setq s   (tblnext "Style" p)
         p   nil                        ;reset pointer
   )
   (if (= sn (cdr (assoc 2 s)))         ;find style name
     (progn
       (setq done t
             gfs  (cdr (assoc 71 s))    ;style generation flag
       )
       (if (= (logand (cdr (assoc 70 s)) 4) 4)
         (setq gf (1+ gf))              ;vertical
       )
     )
   )
 )
 (if  (= gfs (logand gf gfs)) ;exclude conflicting generation flags
   (progn
     (cond                                            ;displacement width
       ((= hj 0)                        ;left
         (setq w (+ (caadr box) (caar box)))
       )
       (t                               ;otherwise
         (setq dist (distance (cdr p1) (cdr p2))
               phi  (angle    (cdr p1) (cdr p2))
               dist (abs (* dist (cos (- phi ang))))
         )
         (if (= (logand gf 2) 2) (setq dist (- dist)))       ;backward
         (if (or (= hj 5) (= hj 3))
           (setq w (-(+ (caar box) (caadr box))      dist))  ;fit or aligned
           (setq w (-(+ (caar box) (caadr box)) (* 2 dist))) ;right, center, middle
         )
       )
     )
     (if (= vj 1)                       ;bottom
       (setq dist (distance (cdr p1) (cdr p2))
             phi  (angle    (cdr p1) (cdr p2))
             dist (abs(* dist (sin (- phi ang))))     ;descender depth
             h    (+ h (* 2 dist))
       )
     )
     (if (= (logand gf 1) 1)            ;vertical
       (cond
         ((or (> hj 2) (= hj 1))                      ;center,aligned,middle,fit
           (setq h 0)
         )
         (t                                           ;otherwise
           (setq h (- (cadadr box) (cadar box)))
           (if (= (+ hj vj) 0) (setq h (- h)))        ;baseline left
           (cond
             ((and (= hj 0) (> vj 0)) (setq vj 3))    ;bottom,middle,top left
             ((= hj 2) (setq vj 0))                   ;right
           )
         )
       )
     )
     (if (= (logand gf 4) 4) (setq h (- h)))          ;upside down
     (setq hd   (polar '(0 0 0)    ang           w)   ;horizontal displacement
           vd   (polar '(0 0 0) (+ ang (/ pi 2)) h)   ;vertical displacement
     )
     (cond                              ;compute new alignment point
       ((or (and (= vj 0) (= hj 1))     ;center
            (and (= vj 0) (= hj 2))     ;right
            (= vj 1))                   ;bottom
         (setq new (mapcar '+ (cdr p2) hd vd))
       )
       ((or (= vj 2) (= hj 4))          ;middle
         (setq new (mapcar '+ (cdr p2) hd))
       )
       ((= vj 3)                        ;top
         (setq new (mapcar '+ (cdr p2) hd)
               new (mapcar '- new vd)
         )
       )
     )
     (cond
       ((= (+ hj vj) 0)                 ;left
         (setq new (mapcar '+ (cdr p1) hd vd)
               ent (subst (cons 10 new) p1 ent)         ;set new alignment point
               ent (subst (cons 50 (+ ang pi)) rot ent) ;reverse direction
         )
       )
       ((or (= hj 5) (= hj 3))          ;fit or aligned
         (setq new (mapcar '+ (cdr p2) vd hd)
               ent (subst (cons 10 new) p1 ent)         ;swap alignment points
               new (mapcar '+ (cdr p1) vd hd)
               ent (subst (cons 11 new) p2 ent)
         )
       )
       (t
         (setq ent (subst (cons 11 new) p2 ent)         ;set new alignment point
               ent (subst (cons 50 (+ ang pi)) rot ent) ;reverse direction
         )
       )
     )
     (entmod ent)
   )
   (alert (strcat "The selected text object is not compatible with\n"
                  "its text style.  When the text style is upside\n"
                  "down or backwards, the text object should also    \n"
                  "be upside down or backwards."))
 )
)
;------------------------------------------------------------------------------
;MTEXT (including dimension text)

(defun revmtext (e / ent ins w h just lss ls ch rot hd vd new)
 ;reverse mtext or dimension text
 (setq ent  (entget e)
       ins  (assoc 10 ent)              ;insertion point
       w    (cdr (assoc 42 ent))        ;width
       h    (cdr (assoc 43 ent))        ;displacement height
       just (cdr (assoc 71 ent))        ;justification
       rot  (assoc 50 ent)              ;rotation
       lss  (cdr (assoc 73 ent))        ;line spacing style
       ch   (cdr (assoc 40 ent))        ;character height
       ls   (/ ch 3)                    ;interline half-space
      ;ls = (5 ch/3 - ch)/2 = ch/3
 )
 (cond
   ((and (= lss 2) (> just 6))          ;exact bottom
     (setq h (+ h ls))
   )
   ((and (= lss 2) (< just 4))          ;exact top
     (setq h (- h ls))
   )
   ((= lss 2)                           ;exact middle
     (setq h ls)
   )
   ((and (> just 3) (< just 7))         ;at least middle
     (setq h 0)
   )
 )
 (setq hd   (polar '(0 0 0)    (cdr rot)           w) ;horizontal displacement
       vd   (polar '(0 0 0) (- (cdr rot) (/ pi 2)) h) ;vertical displacement
 )
 (cond                                  ;compute new insertion point
   ((= just 1)                          ;top left
     (setq new (mapcar '+ (cdr ins) hd vd))
   )
   ((= just 2)                          ;top center
     (setq new (mapcar '+ (cdr ins) vd))
   )
   ((= just 3)                          ;top right
     (setq new (mapcar '- (cdr ins) hd)
           new (mapcar '+ new vd)
     )
   )
   ((= just 4)                          ;middle left
     (setq new (mapcar '+ (cdr ins) hd)
           new (mapcar '- new vd)
     )
   )
   ((= just 5)                          ;middle center
     (setq new (mapcar '- (cdr ins) vd))
   )
   ((= just 6)                          ;middle right
     (setq new (mapcar '- (cdr ins) hd vd))
   )
   ((= just 7)                          ;bottom left
     (setq new (mapcar '+ (cdr ins) hd)
           new (mapcar '- new vd)
     )
   )
   ((= just                           ;bottom center
     (setq new (mapcar '- (cdr ins) vd))
   )
   ((= just 9)                          ;bottom right
     (setq new (mapcar '- (cdr ins) hd vd))
   )
 )
 (setq ent (subst (cons 10 new) ins ent)              ;set new insertion point
       ent (subst (cons 50 (+ (cdr rot) pi)) rot ent) ;reverse direction
 )
 (entmod ent)
)
;------------------------------------------------------------------------------
;ELLIPSE

(defun revellipse (e / old oldent center p1 ratio start end major a b rot
                      minor inc tol 2pi i j phi closed p tan ent flag)
 ;reverse ellipse
 (setq old    e
       oldent (entget old)
       center (cdr (assoc 10 oldent))
       p1     (cdr (assoc 11 oldent))
       ratio  (cdr (assoc 40 oldent))
       start  (cdr (assoc 41 oldent))
       end    (cdr (assoc 42 oldent))
       major  (mapcar '+ center p1)
       a      (distance center major)
       b      (* ratio a)
       rot    (angle center major)
       minor  (polar center (+ rot (/ pi 2)) b)
 )
 (setq inc 64                           ;number of vertices on full ellipse
       tol 1e-5                         ;closure tolerance
       2pi (* 2 pi)
       i   (1+ (fix (+ (* (/ inc 2pi) start) 0.5))) ;start index
       j       (fix (+ (* (/ inc 2pi)   end) 0.5))  ;end index
       phi (list start)
 )
 (while (< i j)                         ;build parameter list
   (setq phi (cons (* (/ 2pi inc) i) phi)
         i   (1+ i)
   )
 )
 (if (and (< start tol) (< (abs (- end 2pi)) tol))
   (setq closed t)
   (setq closed nil
         phi    (cons end phi)
   )
 )
 ;parametric ellipse in object coordinate system
 ;  x = a cos(q);  y = b sin(q);  r = b/a
 ;  dx/dq = -a sin(q);  dy/dq = b cos(q)
 ;  dy/dx = -b/a cot(q) = -r^2 x/y
 ;  tangent direction = atan(dy/dx)

 (setq p   (mapcar '(lambda (q)         ;compute OCS points on ellipse
                      (list (* a (cos q)) (* b (sin q)))
                    )
                    phi
           )
       tan (mapcar '(lambda (q)         ;compute WCS tangent directions
                      (+ (atan (* (- (expt ratio 2)) (car q)) (cadr q)) rot)
                    )
                    p
           )
 )
 (command "_ucs" "_n" 3 center major minor)         ;create OCS
 (setq p (mapcar '(lambda (q)(trans q 1 0)) p))     ;transform from OCS to WCS
 (command "_ucs" "_p")                              ;restore UCS
 (command "_pline")
 (mapcar 'command p)
 (command "")
 (command "_matchprop" old (entlast) "")
 (if closed
   (command "_pedit" (entlast) "_l" "_on" "_c" "_f" "");force hwpline creation
   (command "_pedit" (entlast) "_l" "_on"      "_f" "")
 )
 (setq e   (entnext (entlast))
       ent (entget e)                   ;get first vertex
       i   0
 )
 (while (= (cdr (assoc 0 ent)) "VERTEX")
   (setq flag (assoc 70 ent))
   (if (/= (logand (cdr flag) 1) 1)     ;skip curve fitting vertices
     (progn                             ;set tangent and flag bit
       (setq ent (subst (cons 50 (nth i tan)) (assoc 50 ent) ent)
             i   (1+ i)
             ent (subst (cons 70 (+ (cdr flag) 2)) flag ent)
       )
       (entmod ent)
     )
   )
   (setq e   (entnext e)
         ent (entget e)                 ;get next vertex or seqend
   )
 )
 (command "_pedit" (entlast) "_f" "")   ;update fit
 (entdel old)                           ;delete ellipse
)
(princ)



to help me to reach to my goal .... can you please modify it for me so that it accept a selection set from another lisp

i use "SS1" to get SELECTION SET OF these polylines



                    (setq bbx (LM:blockboundingbox (vlax-ename->vla-object ss0)))
                   (setq ss1
                       (ssget "_C"
                           (trans (car   bbx) 0 1)
                           (trans (caddr bbx) 0 1)
                          '((0 . "ARC,ELLIPSE,CIRCLE,LINE,XLINE,SPLINE,*POLYLINE"))
                       )
                   )



while the lisp created by Tom Davis use (command "_select" "") and nentsel



it's only my first steps in lisp language

thanks in advance

[BIGAL]

Mine is way shorter please test it seems to be working for me only 1 bug plines must go left to right. But that could be solved.

; adjust pline vertical only and maintain last point
; By Alan H
(defun c:test ( / x newpts obj j yval incy)
(setq incy (getreal "enter offset +ve or -ve"))
(setq pt1 (getpoint "pick 1st point"))
(setq lst (list pt1 (getpoint pt1 "get 2ndpoint")))
(setq ss (ssget "F" lst))
(setq yval 0)
(repeat (setq k (sslength ss))
(setq yval (+ incy yval))
(setq obj (vlax-ename->vla-object (ssname ss (setq k (- k 1)))))
(setq pts (vlax-get obj 'coordinates))
(setq newpts '())
(setq x 0)
(repeat (- (/ (length pts) 2) 1)
(setq newpts (cons (nth x pts) newpts))
(setq newpts (cons (+ yval (nth (+ x 1) pts)) newpts))
(setq x (+ x 2))
)
(setq newpts (cons (nth x pts) newpts))
(setq newpts (cons (nth (+ x 1) pts) newpts))
(vlax-put obj 'coordinates (reverse newpts))
)
)

Edited May 20, 2017 by BIGAL

[handasa]

Mine is way shorter please test it seems to be working for me only 1 bug plines must go left to right. But that could be solved.

; adjust pline vertical only and maintain last point
; By Alan H
(defun c:test ( / x newpts obj j yval incy)
(setq incy (getreal "enter offset +ve or -ve"))
(setq pt1 (getpoint "pick 1st point"))
(setq lst (list pt1 (getpoint pt1 "get 2ndpoint")))
(setq ss (ssget "F" lst))
(setq yval 0)
(repeat (setq k (sslength ss))
(setq yval (+ incy yval))
(setq obj (vlax-ename->vla-object (ssname ss (setq k (- k 1)))))
(setq pts (vlax-get obj 'coordinates))
(setq newpts '())
(setq x 0)
(repeat (- (/ (length pts) 2) 1)
(setq newpts (cons (nth x pts) newpts))
(setq newpts (cons (+ yval (nth (+ x 1) pts)) newpts))
(setq x (+ x 2))
)
(setq newpts (cons (nth x pts) newpts))
(setq newpts (cons (nth (+ x 1) pts) newpts))
(vlax-put obj 'coordinates (reverse newpts))
)
)



... this is a good strat for me to reach to my goal ...

if you can fix the bug polyline it will be great ... anyway thanks for your time and good lisp

thanks mr.BIGAL

[BIGAL]

The solution to the pline direction would require possibly an extra pick pt or maybe use pt1 to compare start and end pts distance from the point1 so if end is shorter use reverse on the pline and maybe re do the selection set. If you run the lisp and one comes out wrong do a undo "U" till back to original and do a "REVERSE" on the pline/s that came out wrong then do again and all should be good.



; a sample reverse pts check swap start and end
(setq d1 (distance pt1 pt3))
(setq d2 (distance pt2 pt3))
(if (> d1 d2)
(progn
(setq temp pt1)
(setq pt1 pt2)
(setq pt2 temp)
)
)

[aaron.gonzalez]

the solution could be with the offset function of cad with erase the pline and incremental distance between plin



[aaron.gonzalez]

something like that https://forums.autodesk.com/t5/visual-lisp-autolisp-and-general/automatically-offsetting-simple-geometries-using-autolisp/m-p/3330183#M302307
