Need help turning this into a solid

Recommended Posts

wezzo18

I have tried everything and I need it done in the next 6 hours. Please Someone Help me


Share this post


Link to post
Share on other sites
BIGAL

Is it an angle with the ends chopped or is it hollow ? Just start with extruding that shape then make other shapes and "Subtract" if hollow it still has a wall thickness, use press pull.


Edited by BIGAL

Share this post


Link to post
Share on other sites
ReMark

Attach a copy of the drawing to your next post and someone here will take a look at it.

Share this post


Link to post
Share on other sites
BIGAL

Your to quick Remark hopefully what I posted is close.

Share this post


Link to post
Share on other sites
ReMark

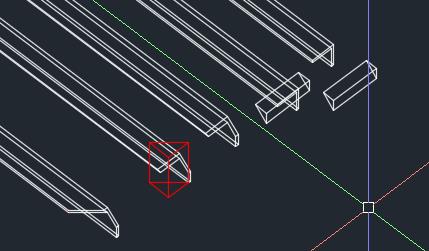

I think the OP extruded a bunch of lines and ended up with surfaces as opposed to extruding a single continuous polyline profile or using PRESSPULL.





wezzo: Here is sample drawing illustrating the difference between extruding a group of lines versus a single continuous polyline. The drawing was saved in 2010 file format so you should have no trouble opening it.

Sample extrusions.dwg

Edited by ReMark

Share this post


Link to post
Share on other sites
f700es

+1 to BigAl. All too easy.

Share this post


Link to post
Share on other sites
wezzo18

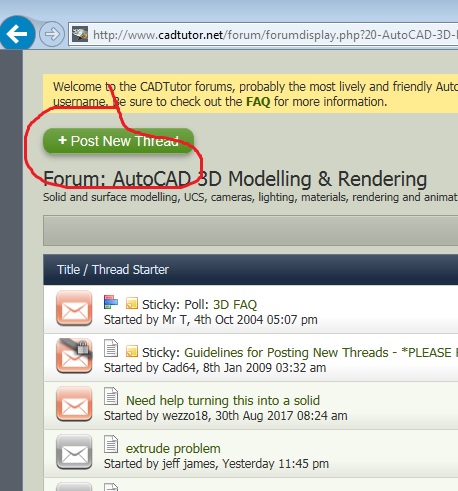

how do i post a new thread or post a new problem?

Share this post


Link to post
Share on other sites
steven-g

How did you start this one?


Share this post


Link to post
Share on other sites
wezzo18

I have been looking for it but i dont know how to get to there through my profile

Share this post


Link to post
Share on other sites
