MrFolgers92

Looked through threads and couldn't find any images of the HVAC elective project. If anyone has the project or can find images of the 4 plates could you please post it? Thanks in advance

Share this post


Link to post
Share on other sites
ReMark

This wouldn't be HVAC Project 9 would it?



If not, can you attach a copy of the PDF that describes the project?

Edited by ReMark

Share this post


Link to post
Share on other sites
MrFolgers92

Yes ReMark this is the HVAC elective Project 9. I would just like an image of the plates just to make sure I'm on the right track. Its tough figuring out the ductwork without an image of what it should look like. I'm a visual learner

Share this post


Link to post
Share on other sites
ReMark

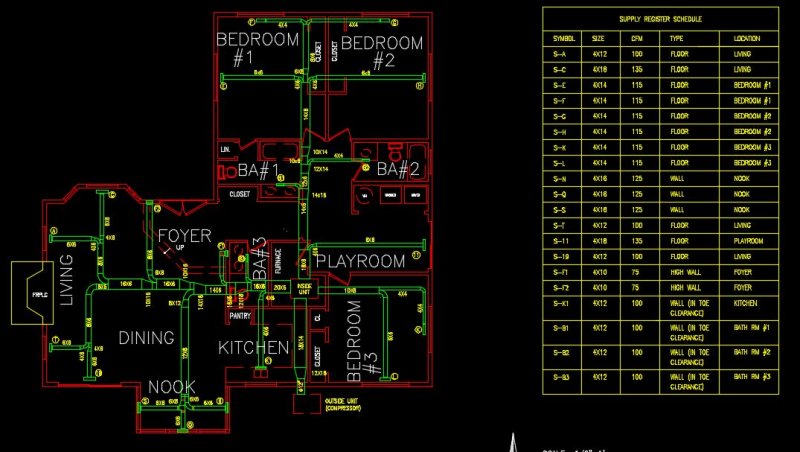

Does the image below match up with the project scope for plate 1?



Proj 9 HVAC plt 1.jpg

Share this post


Link to post
Share on other sites
MrFolgers92

That's it! Thanks for finding it for me!!

Share this post


Link to post
Share on other sites
MrFolgers92

Is there anyway you could find the last 3 plates for this project? or direct me to a thread about this elective?

Share this post


Link to post
Share on other sites
ReMark

You do realize that part of this learning process is the ability to follow written instructions? You are not always going to get a drawing of the object(s) you are supposed to draw. It some cases you'll be lucky if you get a rough sketch.



The three remaining plates as per your request.

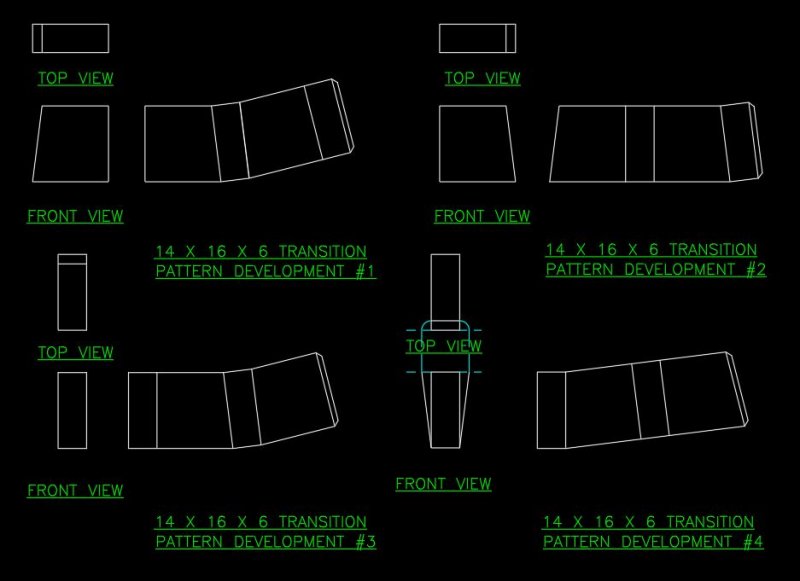

Plate 2

proj 9 HVAC plt 2.jpg

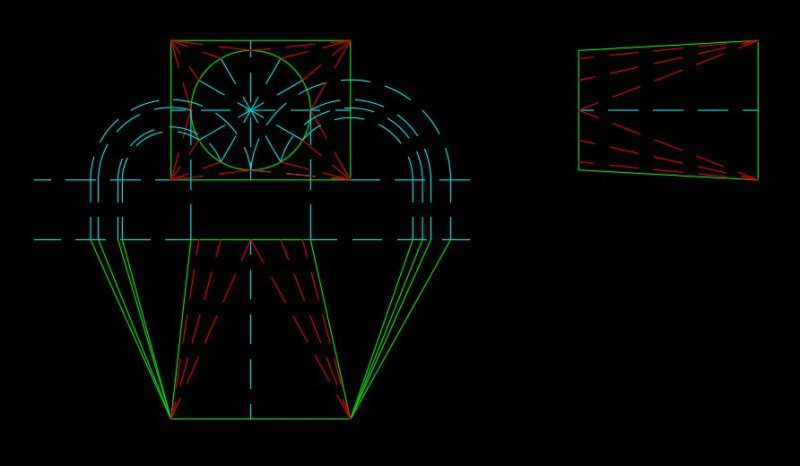

Plate 3

proj 9 HVAC plt 3.jpg

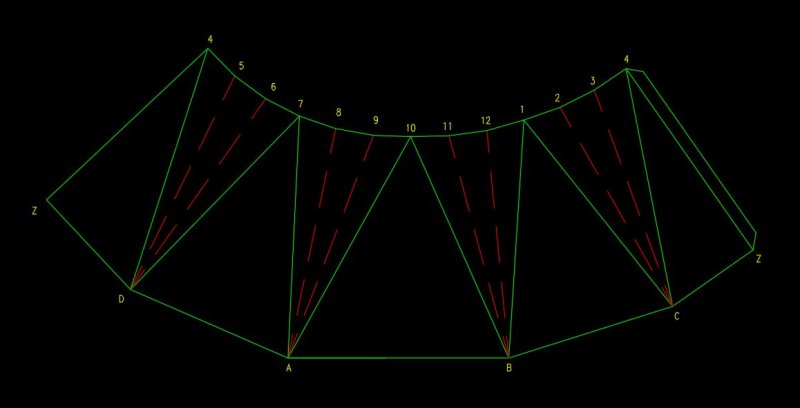

Plate 4

proj 9 HVAC plt 4.jpg
