3D Sweep help!

Recommended Posts

Greendamo

Hi,

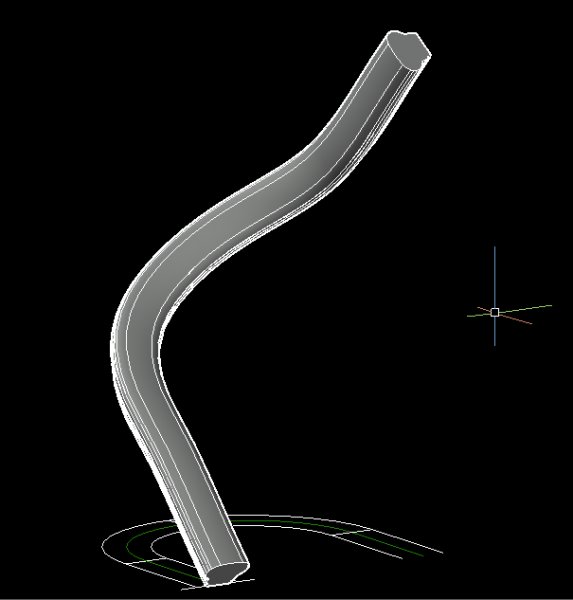

When using the sweep command on handrail profile, is there a way of stopping the sweep from twisting the profile out of shape? i have attached an image showing what i get.

I know there is a command in sketchup called 'follow me' which works well. I cant find anything in Autocad that gives me the correct results!



Thanks for you help in advance.



Damian

HR - Sweep.jpg

Share this post


Link to post
Share on other sites
ReMark

Can you attach a copy of the drawing to your next post? Thanks.

Share this post


Link to post
Share on other sites
Greendamo
Can you attach a copy of the drawing to your next post? Thanks.



It wont let me attach. says the file size exceeds the limit!

Share this post


Link to post
Share on other sites
ReMark

We need a drawing with the railing profile and the "path" the railing will ultimately follow. Nothing else.

Share this post


Link to post
Share on other sites
SLW210

Have you looked at the command line options as you sweep?



What have you tried? There is Alignment and Twist (which has options).





The following prompts are displayed.

Objects to Sweep

Specifies an object to use as the sweep profile.

Sweep Path

Specifies the sweep path based on the object you select.

Mode

Controls whether the sweep action creates a solid or a surface. Surfaces are swept as either NURBS surfaces or procedural surfaces, depending on the SURFACEMODELINGMODE system variable.

Alignment

Specifies whether the profile is aligned to be normal to the tangent direction of the sweep path.



If the profile is not perpendicular (normal) to the tangent of the start point of the path, then the profile automatically aligns. Enter No at the alignment prompt to prevent this.

Base Point

Specifies a base point for the objects to be swept.

Scale

Specifies a scale factor for a sweep operation. The scale factor is uniformly applied to the objects that are swept from the start to the end of the sweep path.

• Reference. Scales the selected objects based on the length you reference by picking points or entering values.

Twist

Sets a twist angle for the objects being swept. The twist angle specifies the amount of rotation along the entire length of the sweep path.

Bank. Specifies whether the curve(s) being swept will naturally bank (rotate) along a 3D sweep path (3D polyline, spline, or helix).

Share this post


Link to post
Share on other sites
SEANT

This one I tried with an ArrayAlongPath/Loft methodology. Not perfect, but not too bad either.

HR - Loft.dwg

Share this post


Link to post
Share on other sites
Greendamo

Hi Seant,



That looks great... shame i cant get that command to do the same for some reason :-(

Share this post


Link to post
Share on other sites
