When I try to render an image of my 3D drawing, the material shows up correctly but the text on the drawing doesn't show up. I would appreciate some help. Thanks.

Share this post


Link to post
Share on other sites
SLW210

Can you post some images and a .dwg to show what is going on?

Share this post


Link to post
Share on other sites
f700es

I don't think you can render text. You will probably have to add any annotation to the rendered image in some image editing software.

Share this post


Link to post
Share on other sites
David Bethel

If you are using a fillied TrueTypeFont and have given it some thickness, it should render. Autocad's shx fonts are the same. -David

Share this post


Link to post
Share on other sites
f700es

+1 to David, yes that should work.

For me, I'd still rather do it in an image editor but to each their own.

Share this post


Link to post
Share on other sites
Cad64

If he's talking about dimensions then not only will he need to use the TrueTypeFont font with a thickness, but he will also have to do something about the extension lines, arrowheads, etc. I'm with f700es. I would add the text and dimensions in an image editor after rendering.



A simple way to do this would be to set up a viewport with your model, text, dimensions etc. Then do a render to get your image. After that, turn off your model in the viewport and print a pdf of your text and dimensions. Then simply composite the two together in your image editor. I have done this sort of thing before and it's very quick and easy.

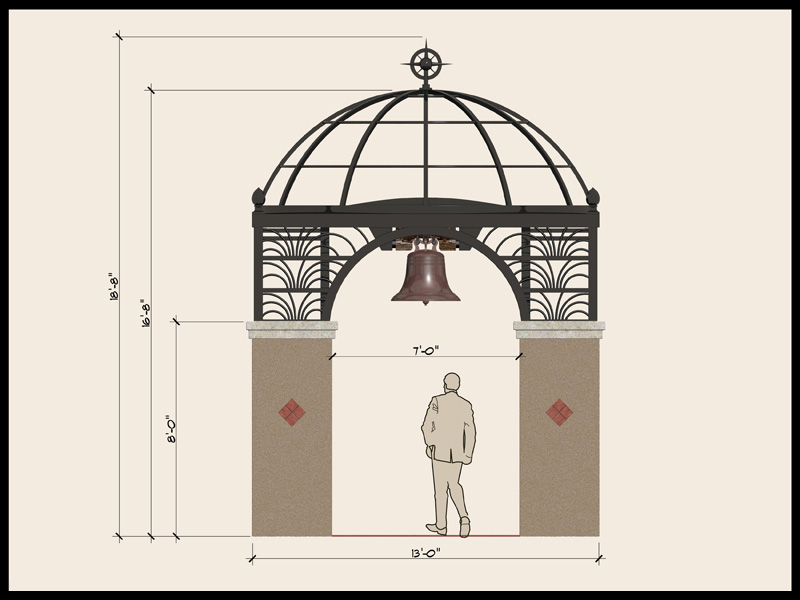

Here's one I did a while back using the procedure I mentioned above.


Share this post


Link to post
Share on other sites
f700es

Why slow down the render with things you can add in afterwords?

Share this post


Link to post
Share on other sites
Cad64
Why slow down the render with things you can add in afterwords?



Like I always say, work smart, not hard. ;)

Share this post


Link to post
Share on other sites
f700es

Yep, I'd add those in with Illustrator, Corel Draw or Inkscape.

Share this post


Link to post
Share on other sites
f700es

OMG at the auto-wreck typo! "afterwards" ftw

Share this post


Link to post
Share on other sites
Cad64
OMG at the auto-wreck typo! "afterwards" ftw



:rofl: ____________

Share this post


Link to post
Share on other sites
f700es

:notworthy:
