Explode a REGION or BODY into line work

Recommended Posts

David Bethel

I know I am very lacking when it comes to 3DSOLIDs.



Can either a region or body be converted into 3D lines ?





I'm seeing some old VB stuff but it doesn't look too good





Thanks! -David

Share this post


Link to post
Share on other sites
ReMark

Explode a 3D solid and the result would be regions. Explode the regions and you get lines.

Share this post


Link to post
Share on other sites
David Bethel

See how little I know



I've found a work around.

Save everything back to Release 13 ( it recognizes 3DSOLIDs )

Saveas R12 ( it doesn't ) 3DSolids are converted to line work ( so far )



It's a cludge, but what the heck



-David

-David

Share this post


Link to post
Share on other sites
ReMark

What exactly are you trying to accomplish?



Have you tried Extract Edges?

Share this post


Link to post
Share on other sites
David Bethel

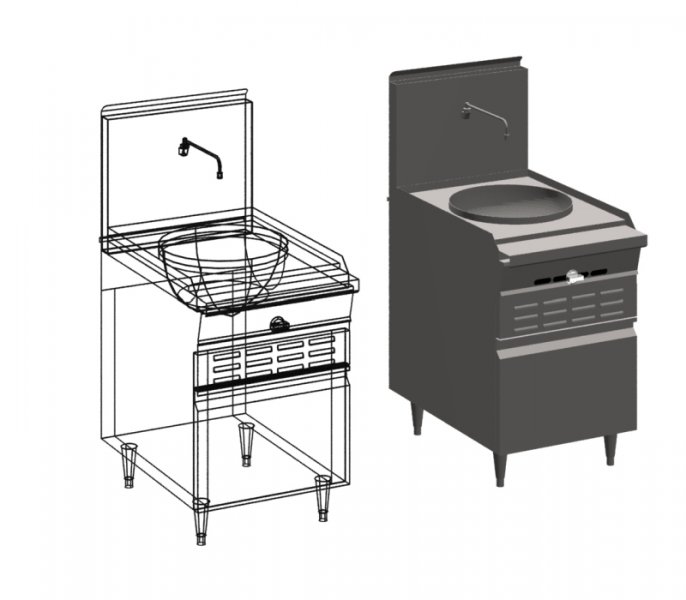

To take models that are made with solids and make them see through wire frame edges



-David


Share this post


Link to post
Share on other sites
halam

Look at

Xedges

Share this post


Link to post
Share on other sites
ReMark

Extract Edges = Xedges...Exactly what I said to take a look at in post #4.

Share this post


Link to post
Share on other sites
David Bethel

I've tried a couple test s with xedges. I guess it will take me some time. Results we so so in 2012. Thanks -David

solid1.dwg

Edited by David Bethel

Share this post


Link to post
Share on other sites
