Filters not printing onto the PDF

Cheap Belt

Recommended Posts

I'm iusing a fill pattern for my mechanical equipment via filter, it displays correctly but doesn't print. I have tried changing several settings but nothing I do will make it print on the PDF aside from changing the model style from hidden to wireframe. This then displays the drawing incorrectly and makes it less clear.

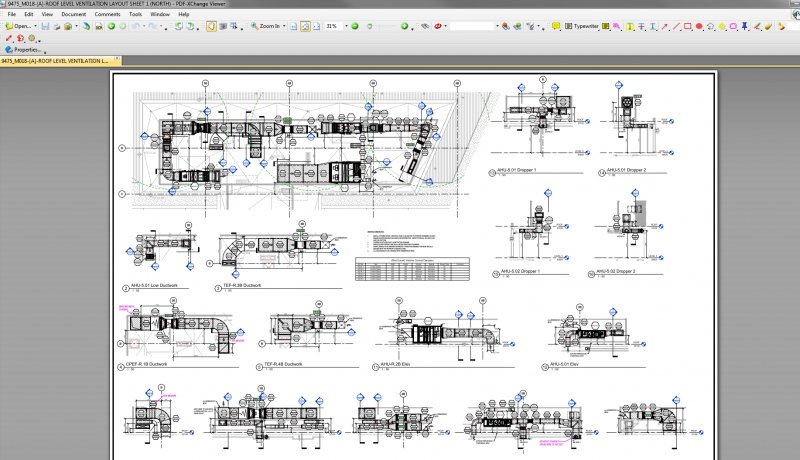

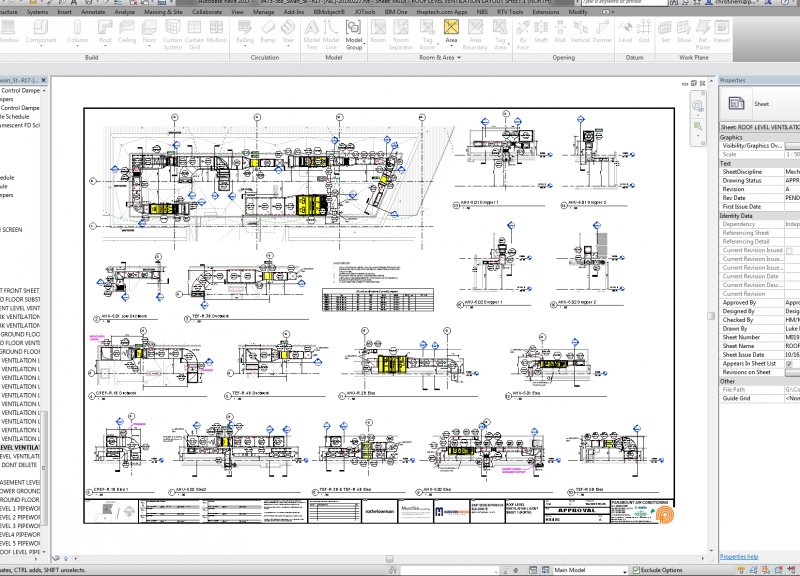

See attached screenshot for further details of this problem, would love to know how to fix it. :D



Link to comment
Share on other sites

Interestingly, when I add a view to the sheet that has a shaded view style - it prints the filters in the plan/section views. I think some graphical error may be happening behind the scenes somewhere

Link to comment
Share on other sites

  • 1 year later...

I know this is an older thread now, but you just have to print using raster processing and not vector.
Located in print settings dialog box. 👍
