cosmetic thread does not work

Recommended Posts

sanchez

Hello,

I am using a student version of 2017 solidworks and the cosmetic thread tool does not work. I know it is supposed to be toggled on in document properties which I did, and it still does not work. I am unsure whether or not the student version has limitations, maybe that could be it. I have all the parameters filled out properly except the last two which I do not understand.

Diego


Share this post


Link to post
Share on other sites
weim

I think you need to select the circumferential surface for this feature to work not the edge...........

Share this post


Link to post
Share on other sites
cadasio

actually you can use an edge.



You may find that you cosmetic thread is being added...

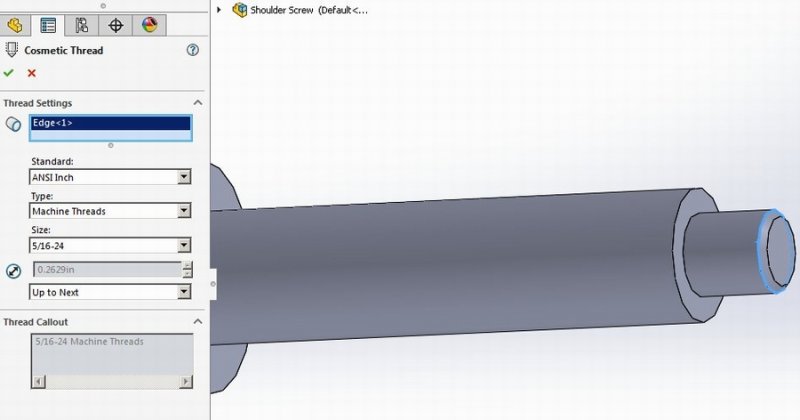

check under your feature (e.g. boss) and you may see cosmetic thread - you can just about see it on the screenshot below

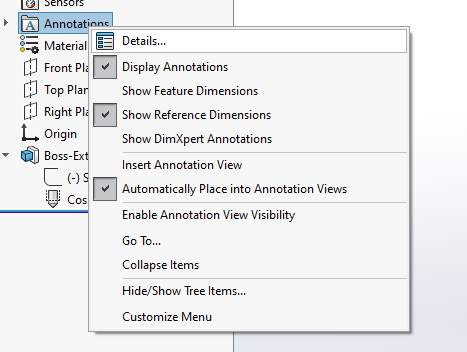

also right click on the annotations folder in your feature manager make sure display annotations is ticked, then choose details, a new window will pop up

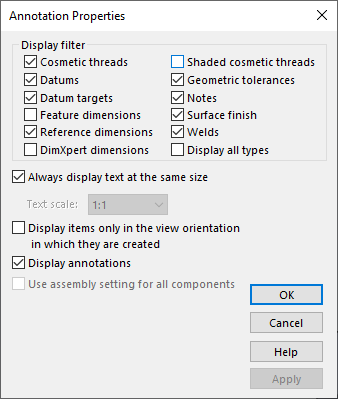

make sure cosmetic threads and shaded cosmetic threads are both ticked and you should see them

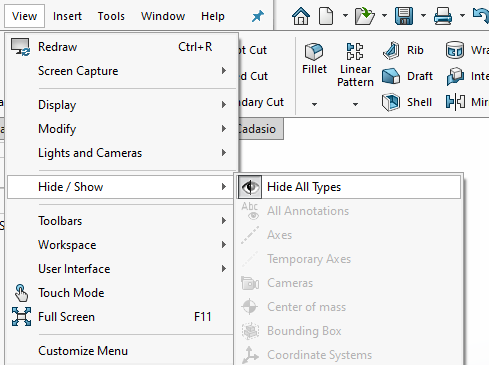

finally make sure hide all isnt switched on..






if you still don't see shaded cosmetic threads, it may be due to your current hardware setup - e.g. not having a supported graphics card can sometimes mean you get odd behaviour
