Can't trim 3d object

Recommended Posts

Chris442

Hi,



I have this drawing I am working on and it's been almost 10 years I have worked on AutoCAD and I would like some help with this.

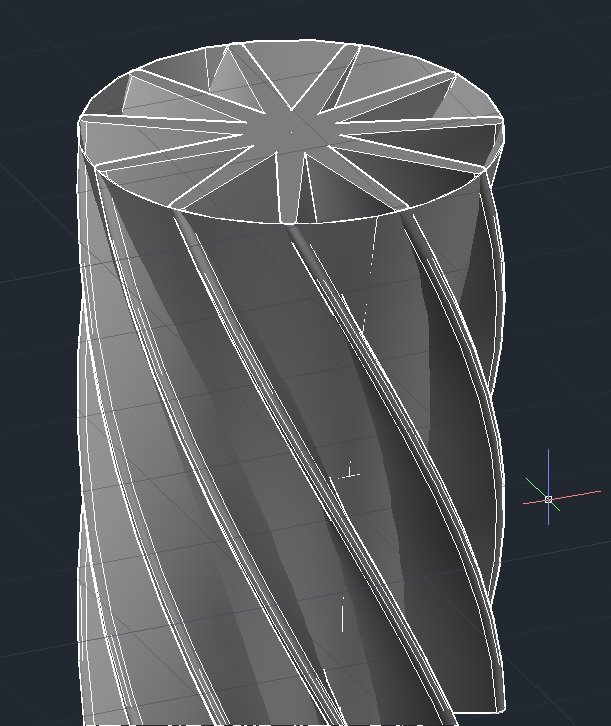

The drawing is following and I am trying to trim the fins protruding out of the funnel.


Share this post


Link to post
Share on other sites
ReMark

One option would be to use the SLICE command which has a handful of options (ex. - Object).  Another option would be to use the SUBTRACT command and subtract a cylinder equal to the OD of the funnel and max OD of the fins protruding out from the funnel.
