Creating Workplane at an Angle from Origin

Recommended Posts

gbradley

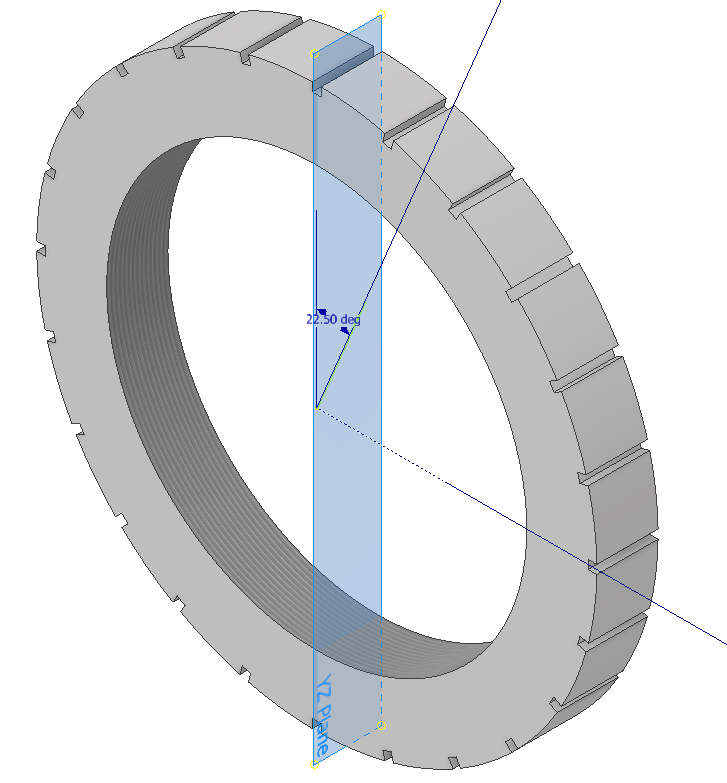

How can I create a workplane 22.5° off from YZ Plane?



AutoDesk Inventor 2019




Share this post


Link to post
Share on other sites
gbradley

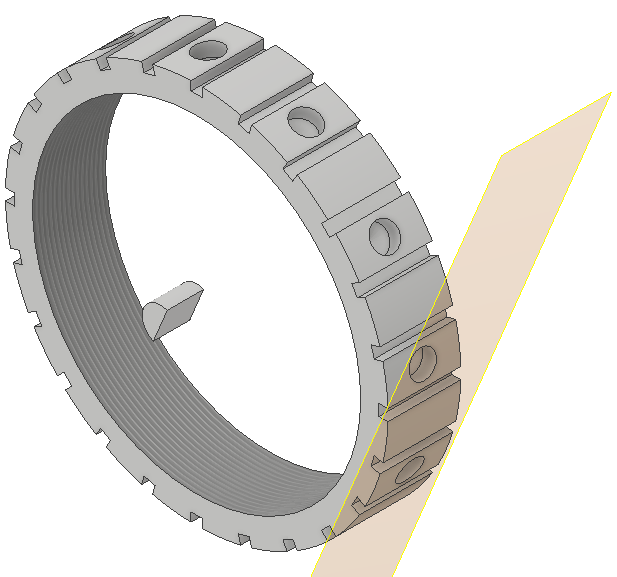

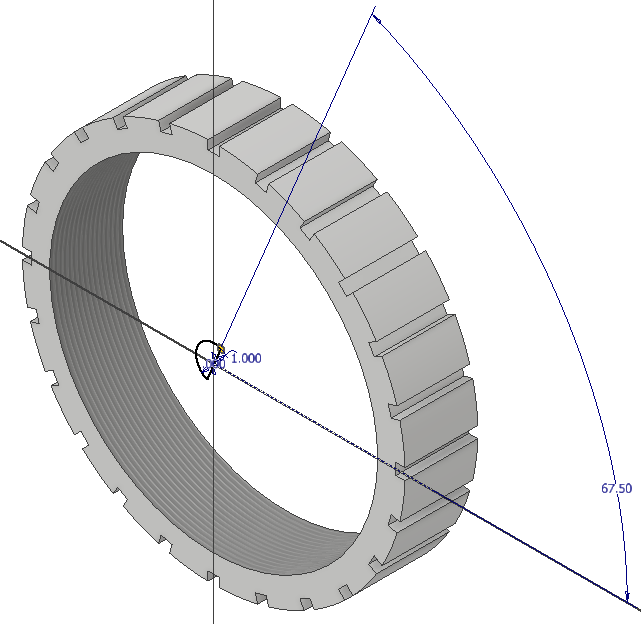

I ended up creating a Sketch with a Flat Face, and then created a plane parallel with the Face Tangent with the outside Diameter.

Then I cut away my extrusion.





Share this post


Link to post
Share on other sites
nigh

Create plane ► select Z axis ► select YZ plane  input angle.

  • Like 1

Share this post


Link to post
