Custom Line Styles

Recommended Posts

Bob F

Hi All.

I'm new to custom line styles but was doing OK until I tried to draw my custom line from right to left.

This is the code I wrote:

*FOUL_PIPE,Foul Pipe --FP[B1]----FP[B1]----FP[B1]----FP[B1]----FP[B1]----FP[B1]--
A,1.5,-1.5,["FP(B1)",STANDARD,S=.2,U=0.0,X=-1.25,Y=-0.1],-.01

and below is the result I got.

As you can see, I've set the rotation U=0 as advised on the web.

I believe it has something to do with the insertion point of the text, but I'm at a loss how to resolve it.

Any help much appreciated

Thanks, Bob

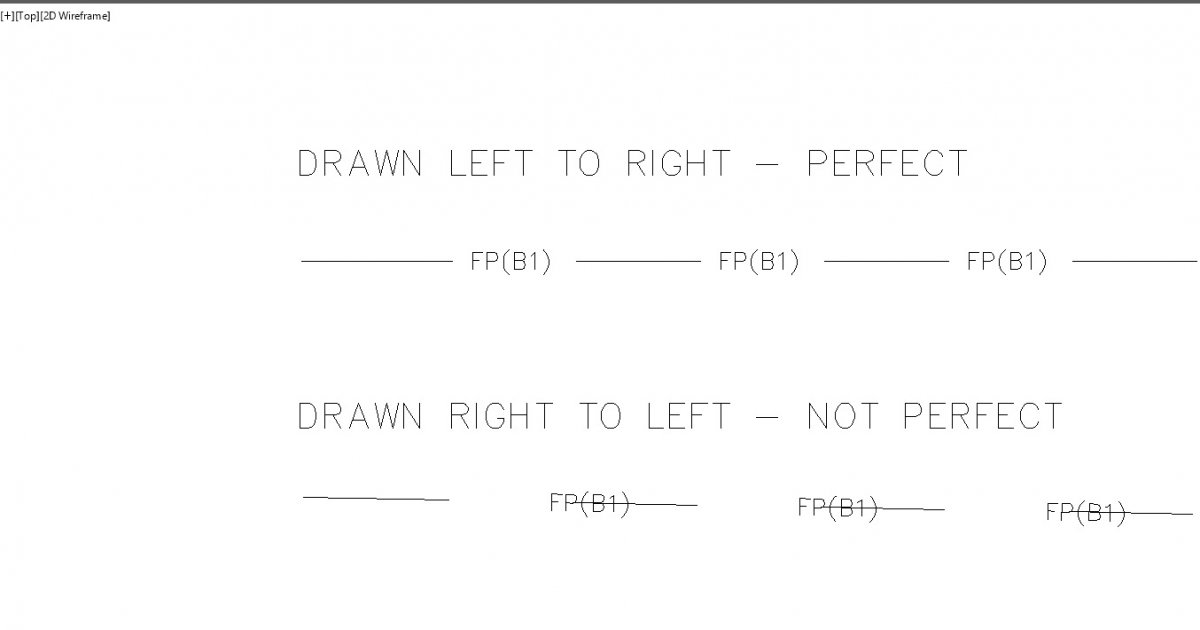

Wrong Lines.jpg

Share this post


Link to post
Share on other sites
eldon

Unfortunately, the culprit is the U factor which always assures that the text is upright, and in the linetype definition, the text is left justified.



Until AutoCAD set up a middle justification of the text, the best thing to do is make the line a polyline, and reverse its direction.

Share this post


Link to post
Share on other sites
Bob F

Thanks Eldon. If I do this it'll reverse all the text that is correct i.e. drawn drawn left t right. I think I may have found the solution by creating the line style within Express Tools. I'll continue to tinker and update the post.

Share this post


Link to post
Share on other sites
