How does a person know which DIMENSION STYLE is being used while drawing in an IDW??

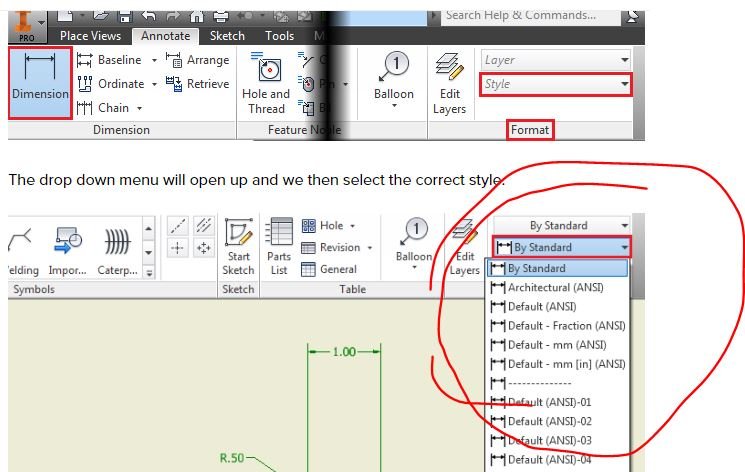

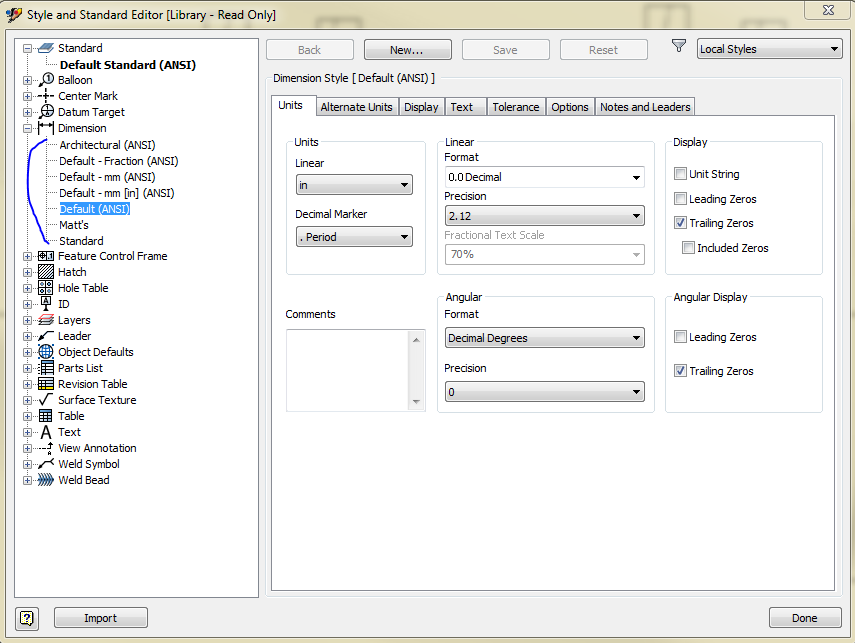

I go to the styles editor, and see this:




But how do I know which is CURRENT? Or which to alter to change what I see when DIMENSIONS are placed on the sheet??



Tips, comments, etc are appreciated.....



-MR

Share this post


Link to post
Share on other sites
mattador04

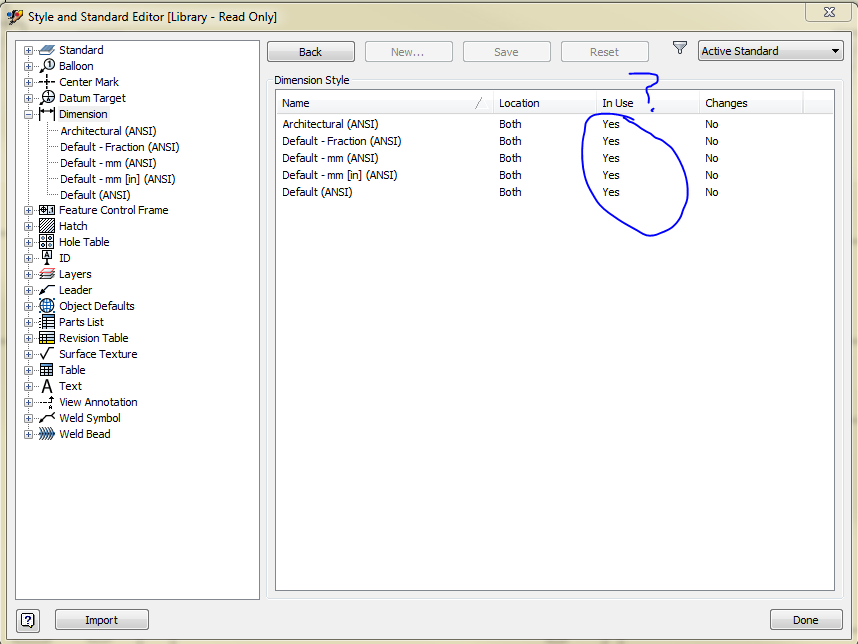

Also, what the heck is this? They can't ALL be in use at once!




Share this post


Link to post
Share on other sites
mattador04

Folks, I really need some advice on this issue....



Please help!!



-MR
