Lisp convert several polyline with width to hatch solid?

[CAD]

hELLO,

Is there a lisp that could change several Polyline with random thickness to Hatch pattrene Solid, with a lisp, when u type command P2H

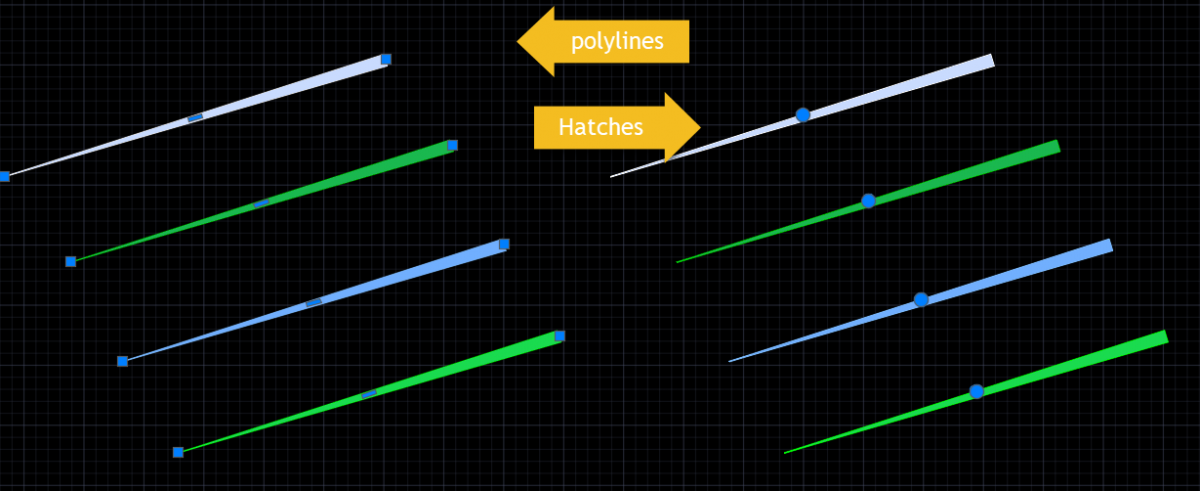

see attachment.

test2.dwg

[ronjonp]

Use Lee's Polyline Outline then hatch them.

[CAD]

Hello Ronjonp, the lisp is almost perfect, but can u make it, so by command P2H, it autom. select all Polyline and make the hatch solid? like attachment?

[ronjonp]

(defun c:mpolyoutlineh (/ b d e h i s)
  (if
    (setq s (ssget "_:L" '((0 . "LWPOLYLINE") (-4 . "<NOT") (-4 . "<>") (42 . 0.0) (-4 . "NOT>"))))
     (progn (initget "Yes No")
	    (setq d (/= "No" (getkword "\nDelete Original? [Yes/No] <Yes>: ")))
	    (setq b (vlax-get (vla-get-activedocument (vlax-get-acad-object))
			      (if (= (getvar 'cvport) 1)
				'paperspace
				'modelspace
			      )
		    )
	    )
	    (repeat (setq i (sslength s))
	      ;; RJP mod to apply solid hatch to outlines
	      ;; Odd results if you have self intersecting plines
	      (foreach c (lm:polyoutline (setq e (ssname s (setq i (1- i)))))
		(cond ((setq h (vlax-invoke b 'addhatch achatchobject "SOLID" :vlax-true))
		       (vlax-invoke h 'appendouterloop (list (vlax-ename->vla-object c)))
		       (vla-evaluate h)
		       (vla-put-layer h (cdr (assoc 8 (entget e))))
		      )
		)
	      )
	      (if d
		(entdel e)
	      )
	    )
     )
  )
  (princ)
)



[CAD]

Hello Ronjonp,



I load the lisp and type mpolyoutlineh, then the lisp still ask me to select te object etc? but doesn't automatic convert the Pline to Hatch solid?

it would be great, if the lisp not asking all the questions.

Edited January 21, 2019 by CAD

[ronjonp]

Not sure .. works here? Are you calling the correct code ? c:mpolyoutlineh

[CAD]

1 hour ago, ronjonp said:

when i type mpolyoutlineh  it ask me to select objects? is there any settings i not have done?



Edited January 21, 2019 by CAD

[ronjonp]

I'm confused. The prompt to select objects is to select the polylines you want to convert.

You also have to load all of the code from Lee's site as it is the base of the program.

[CAD]

sorry confuse You, but my idea is, when i type mpolyoutlineh the lisp Lee or the yours it turns all Polylines to outline and instant change to Hatch solid. so i dont have to select the polylines. Just 1 lisp do all the work, with one command like mpolyoutlineh

Edited January 21, 2019 by CAD

[ronjonp]

Try attached.

mpolyoutlineh.lsp

[CAD]

still asking select objects, iam using acad 2017 is that maybe a problem?



Command:  MPOLYOUTLINEH

Select objects: Specify opposite corner: 3 found

Select objects: Specify opposite corner: 3 found (3 duplicate), 3 total

Select objects:
Delete Original? [Yes/No] <Yes>:

Edited January 21, 2019 by CAD

[ronjonp]

Sorry .. I'm not sure what you want.

[CAD]

SOrry thx for yur time! The lisp works good, but there are severals steps 2 do it, Like when i type MPOLYOUTLINEH, it ask me select object, i then select objects, then it ask me delete yes or no, and i click Yes, then it finish.

I would like to see the lisp that don't have do step bij step, but instant change it. I do apolgize for all my mistaken/request.

Edited January 21, 2019 by CAD

[ronjonp]

Try this:

(defun c:mpolyoutlineh (/ b e h i s)
  (if
    (setq s (ssget "_X" '((0 . "LWPOLYLINE") (-4 . "<NOT") (-4 . "<>") (42 . 0.0) (-4 . "NOT>"))))
     (progn (repeat (setq i (sslength s))
	      ;; RJP mod to apply solid hatch to outlines
	      ;; Odd results if you have self intersecting plines
	      (foreach c (lm:polyoutline (setq e (ssname s (setq i (1- i)))))
		(setq b (vlax-ename->vla-object (cdr (assoc 330 (entget e)))))
		(cond ((setq h (vlax-invoke b 'addhatch achatchobject "SOLID" :vlax-true))
		       (vlax-invoke h 'appendouterloop (list (vlax-ename->vla-object c)))
		       (vla-evaluate h)
		       (vla-put-layer h (cdr (assoc 8 (entget e))))
		      )
		)
	      )
	      ;; If the layer is locked nothing will be deleted
	      (entdel e)
	    )
     )
  )
  (princ)
)



Edited January 21, 2019 by ronjonp

[CAD]

I think this is perfect  ,with one command, job is done, tomorrow i will test it more, but i looks like it runs perfect sofar!!

[CAD]

I think the lisp works fine thanks alot!!!!  Ronjonp

Edited January 22, 2019 by CAD

[ronjonp]

1 minute ago, CAD said:

I think the lisp works fine thanks alot!!!!  Ronjonp

Glad to help, although you really should be thanking Lee since his code is the 'magic sauce' that even makes it possible.

[CAD]

You the best!! Lee lisp combine with you works perfect

[Lee Mac]

3 hours ago, ronjonp said:

Glad to help, although you really should be thanking Lee since his code is the 'magic sauce' that even makes it possible.



Thanks Ron

[granat]

 IT DONT MAKE THE CURVE
