Need help with Extrude Cut 4 holes...........Autocad 2017 3D

Recommended Posts

Sengna

first of all this is not a table, i tried to extrude cut 4 holes (.25 in Dia) through the .10 in plate.   what i did was that i extruded the 4 holes through, then i used subtract command, first i pick the plate and then i pick each hole to subtract but nothing happen, how would you do it?  the final product would be the plate with 4 holes for monitor mounting bracket.  thanks.

monitor bracket.jpg

Share this post


Link to post
Share on other sites
ReMark

It does not look like the four tubes have actually penetrated through the plate.  Can you upload a copy of the drawing?



Another way of doing it would have been to create a 2D profile (using a polyline) of the plate, add the circles for the holes, use the REGION command to create 5 regions (plate plus four holes), use the SUBTRACT command to subtract the "regioned" holes from the plate (it will appear as though nothing has changed) then use either EXTRUDE or PRESSPULL to give the plate the required depth.

Edited by ReMark
  • Like 1

Share this post


Link to post
Share on other sites
Sengna

i might did wrong, what i did was i create the whole profile in autocad 2D and i create block and i copy and paste in the 3d but i had to explode it in 3D, i should try the way you suggested me.

bracket.dwg

Edited by Sengna

Share this post


Link to post
Share on other sites
ReMark

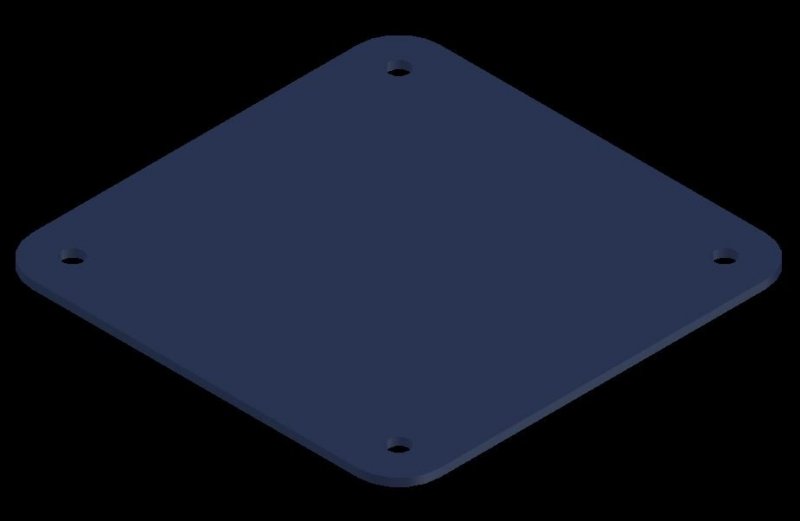

Is this what you are attempting to achieve?





3D Plate with holes.JPG

Share this post


Link to post
Share on other sites
ReMark
1 minute ago, Sengna said:

ok, can you show me, thanks

bracket.dwg

Just as I guessed.  The tubes do NOT penetrate all the way through the plate.  They stop at the bottom face.



Another option would have been to draw the four circles after the plate was extruded and use the PRESSPULL command to push the circles through the plate in order to create the holes.

Share this post


Link to post
Share on other sites
Sengna
4 minutes ago, ReMark said:

Is this what you are attempting to achieve?

wow, yes this is exactly what i want to get , not the table Lol  i will try the method you gave me



3D Plate with holes.JPG



Share this post


Link to post
Share on other sites
Sengna
9 minutes ago, ReMark said:

Just as I guessed.  The tubes do NOT penetrate all the way through the plate.  They stop at the bottom face.



Another option would have been to draw the four circles after the plate was extruded and use the PRESSPULL command to push the circles through the plate in order to create the holes.

i also did this method, my issue was that i had a hard time drawing Ellipses for 4 circles on the plate, i the axis went to different direction.

Share this post


Link to post
Share on other sites
ReMark

As with anything else one attempts to do with AutoCAD there can be multiple ways to achieve the intended result.

Share this post


Link to post
Share on other sites
ReMark
Just now, Sengna said:

i also did this method, my issue was that i had a hard time drawing Ellipses for 4 circles on the plate, i the axis went to different direction.

Ellipses are not required; circles are.  I typically work in a SE Isometric view to better observe what is going on.  Only after I have achieved the desired result do I then rotate the object if required.  Work smarter not harder.

Share this post


Link to post
Share on other sites
Sengna
45 minutes ago, ReMark said:

It does not look like the four tubes have actually penetrated through the plate.  Can you upload a copy of the drawing?



Another way of doing it would have been to create a 2D profile (using a polyline) of the plate, add the circles for the holes, use the REGION command to create 5 regions (plate plus four holes), use the SUBTRACT command to subtract the "regioned" holes from the plate (it will appear as though nothing has changed) then use either EXTRUDE or PRESSPULL to give the plate the required depth.

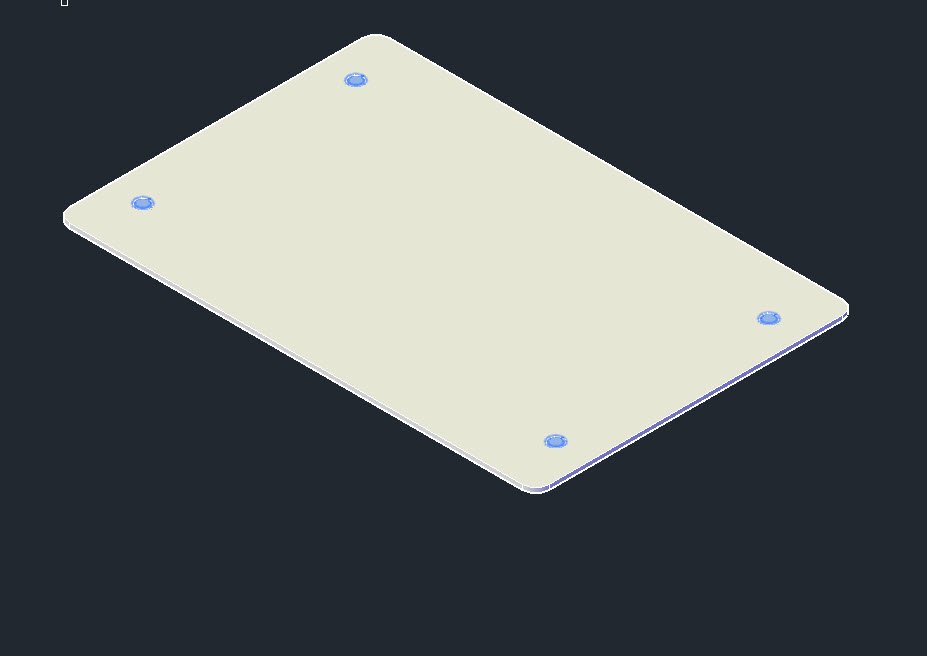

i was able to follow this method by using the PEDIT command for the plate and after that i use REGEN command, and i was able to subtract the plate and the circles and the holes were cut through, that is cool.  thank you Remark.

3d mounting.jpg

Share this post


Link to post
Share on other sites
ReMark

Glad to hear you achieved the desired effect.  You're entirely welcomed.
