What is easiest way to drawing this pipe run 3D

Recommended Posts

Sengna

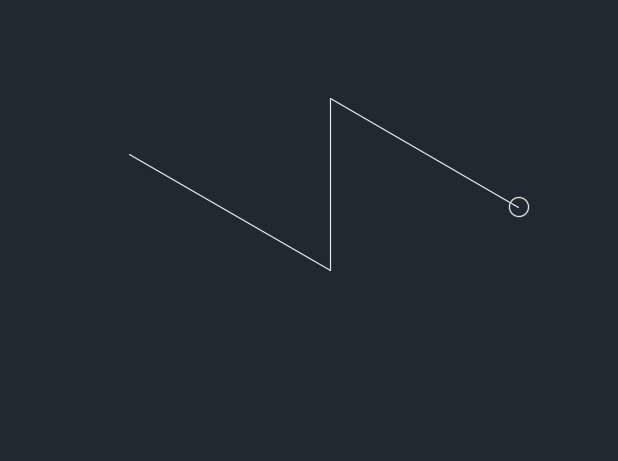

I am using AutoCAD 2018 with 3D,  how would you guys draw this pipe run in 3d? I have very less experience with 3D, can i started as shown on the right by draw pipe run and circle then extrude or sweep?  any suggestion. thank you

3D piping PT.jpg

3d piping.jpg

Share this post


Link to post
Share on other sites
maratovich

We do this (dwg file attached):


Sampl222.dwg

Share this post


Link to post
Share on other sites
ReMark
Posted (edited)

One option would be to place all fittings (elbows, tees, reducers, etc.) and valves, if there are any, then connect everything up with your straight pipe runs.  Another option would be to buy an add-on program such as CADworx Plant Design Suite.

Edited by ReMark

Share this post


Link to post
Share on other sites
Sengna
Posted (edited)
9 hours ago, maratovich said:

We do this (dwg file attached):


Sampl222.dwg 567.84 kB · 0 downloads

are you using regular Autocad 3D or different type of CAD?

Edited by Sengna

Share this post


Link to post
Share on other sites
maratovich

Yes, the usual AutoCAD 3D. Without additions.

Why didn't you see the sample file?
We use 3D objects and blocks.

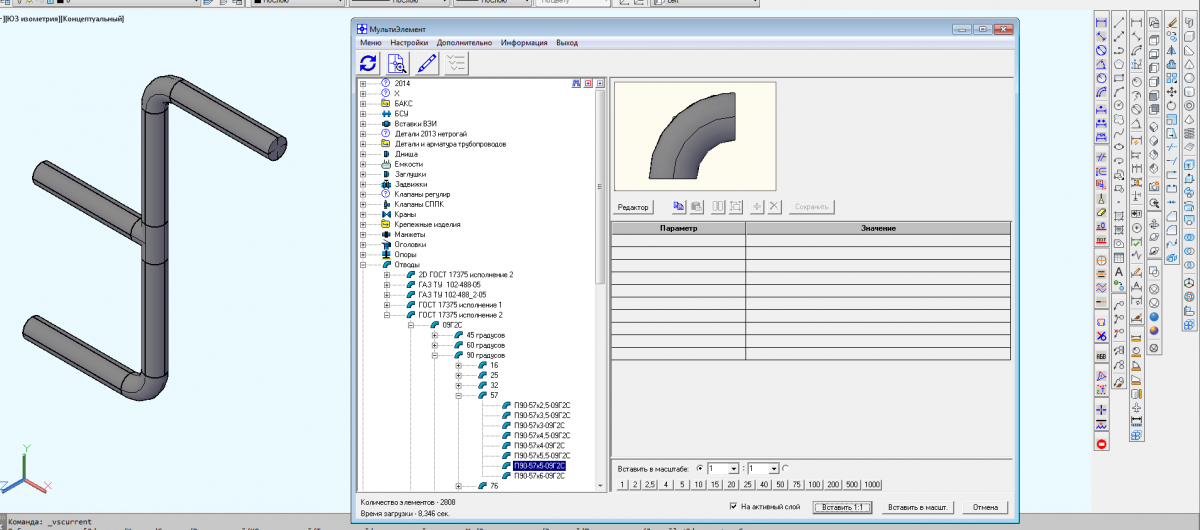

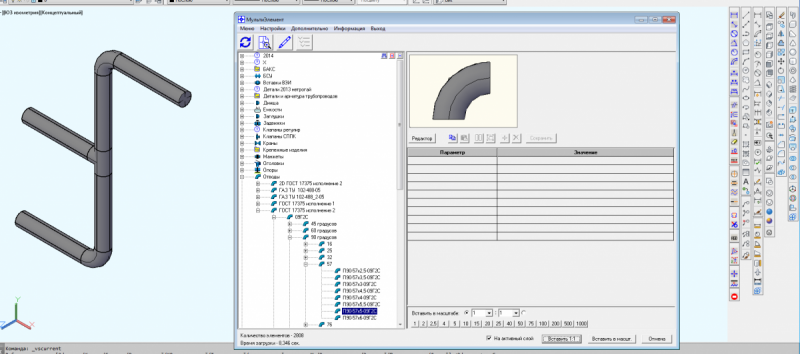

We use the program to store blocks, it allows you to visually display and insert a block from a folder. (on the picture)

Share this post


Link to post
Share on other sites
Sengna
3 hours ago, ReMark said:

One option would be to place all fittings (elbows, tees, reducers, etc.) and valves, if there are any, then connect everything up with your straight pipe runs.  Another option would be to buy an add-on program such as CADworx Plant Design Suite.

as far as the method to draw, do i need to draw a line and circle perpendicular to it and extrude to show 3D? i am just don't know how to start, i started from scratch, do i need to have all the fitting drawing individually in 3d and bring in?

Share this post


Link to post
Share on other sites
Sengna
Posted (edited)
3 hours ago, maratovich said:

Yes, the usual AutoCAD 3D. Without additions.

Why didn't you see the sample file?
We use 3D objects and blocks.
We use the program to store blocks, it allows you to visually display and insert a block from a folder. (on the picture)

ok  i will check the way you did

Edited by Sengna

Share this post


Link to post
Share on other sites
ReMark

I created my own library of fittings and valves over a period of time.  So I had 3D models of that fit 1/2", 1", 1 1/2", 2", 3", 4" and 6".  I also created one inch tall hollow pipe sections (Sch. 40 and Sch. 80) in 3D for all of the same sizes.

I did not open your drawing as my response, like this one, was generated from my laptop that does not have AutoCAD loaded on it.

A former CADTutor member ASMI wrote a couple of lisp routines expressly for creating 3D pipe runs.  Not sure if they are still available on this site.

Share this post


Link to post
Share on other sites
BIGAL

Thought as I dont do pipes normally using 1st principles of solids but very slow, the way to go is like Maratovich and Remark.




  • Like 1

Share this post


Link to post
Share on other sites
SLW210

I draw individual center lines (each pipe and elbow) then sweep a circle (or region) of the pipes.

  • Like 1

Share this post


Link to post
Share on other sites
CafeJr

Hi to all, I don't know if this thread was finished, but just one suggest, It's possible to draw a 3D Polyline (3DPOLY) and extrude it after (option path), I normally use this way, similar to the Bigal's post.

  • Like 1

Share this post


Link to post
Share on other sites
Sengna
On 3/8/2019 at 2:53 PM, BIGAL said:

Thought as I dont do pipes normally using 1st principles of solids but very slow, the way to go is like Maratovich and Remark.




Good, idea, i will give this a try, than you for your suggestion, i am still learning

Share this post


Link to post
Share on other sites
Sengna
On 3/11/2019 at 4:07 AM, SLW210 said:

I draw individual center lines (each pipe and elbow) then sweep a circle (or region) of the pipes.

OK thank you SLW210.

Share this post


Link to post
Share on other sites
Sengna
On 3/11/2019 at 7:58 AM, CafeJr said:

Hi to all, I don't know if this thread was finished, but just one suggest, It's possible to draw a 3D Polyline (3DPOLY) and extrude it after (option path), I normally use this way, similar to the Bigal's post.

I am still working on this.   I will give this a try when i get a chance. thanks.

Share this post


Link to post
Share on other sites
tzframpton

If you want to keep this in plain AutoCAD, do a little prepwork first. Create each pipe OD and ID and extrude it 1" to make a pup piece. Then, use a catalog like Weldbend to create your 90s and 45s, etc. Make blocks of each one, throw them on a Tool Palette.



Utilize Dynamic UCS where you can. Place these items, and use the Grips to stretch the pipe solids, and connect the elbows as necessary. If you're going to this length though I would consider a piping package such as AutoCAD MEP.



Made a quick and dirty video, hope this helps:

https://www.screencast.com/t/YRBlq6BYz0W



-TZ

  • Like 1

Share this post


Link to post
Share on other sites
BIGAL

I watched a Mep demo and thats what it did just keep adding pipes and bend changing direction etc so fast just hang a bend, "T" on end. The way to go.

Share this post


Link to post
Share on other sites
Sengna
On 3/12/2019 at 10:13 PM, tzframpton said:

If you want to keep this in plain AutoCAD, do a little prepwork first. Create each pipe OD and ID and extrude it 1" to make a pup piece. Then, use a catalog like Weldbend to create your 90s and 45s, etc. Make blocks of each one, throw them on a Tool Palette.



Utilize Dynamic UCS where you can. Place these items, and use the Grips to stretch the pipe solids, and connect the elbows as necessary. If you're going to this length though I would consider a piping package such as AutoCAD MEP.



Made a quick and dirty video, hope this helps:

https://www.screencast.com/t/YRBlq6BYz0W



-TZ

That is great suggestion, thank you so much tzframton

Share this post


Link to post
Share on other sites
tzframpton

I would go on to say forget the ID/OD. Too much effort and a performance hit to have hollowed pipe and fittings. Just make it all solids that match the OD and you should be good.



-TZ

Share this post


Link to post
Share on other sites
