How to draw this intertwined thing?

Recommended Posts

Zox

Really, I was looking at this and was wondering how do I draw it in 3D? My guess is it probably is done by 'sweep' command but then I have to have the line first but how do I then draw the line to go like that?



Share this post


Link to post
Share on other sites
nukecad
Posted (edited)

Interesting project to play with.



TBH as it's a camera tripod I think I'd be tempted to draw it with the legs straight, or splayed out as they would be in use.

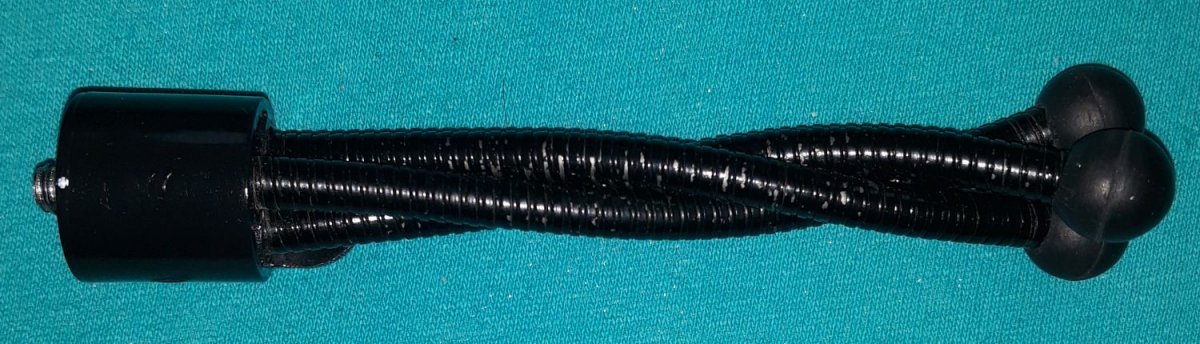

Flexible leg mini-tripod.

Edited by nukecad

Share this post


Link to post
Share on other sites
lrm

I would start with a helix but then because the ends are splayed a bit I would trace over the helix to make a spline with 4 fit points. I would then move the end point out radially a bit to make room for the sphere.  You can then use polar array to make the 3 legs.

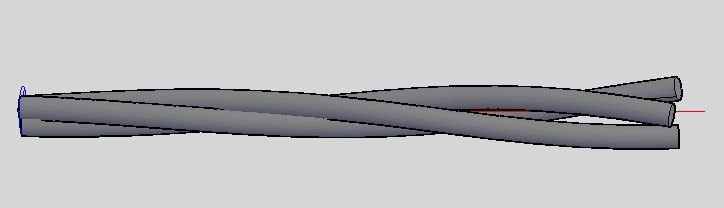

For the model below I set the helix height to 60 and the number of turns to 0.5.  The circle I swept could be a bit larger.


  • Like 1

Share this post


Link to post
Share on other sites
Zox

Thanks, lrm. To be honest I didn't know about helix and polar array and now in few minutes I made a shape that kind of looks like what I was trying to make. BTW is there perhaps some quick way to make those "ribs" or dimples?
