Shil143

AutoCAD Attributes to Excel Template

Recommended Posts

Shil143

Any One Help me to Update Attribute Tag Name, Coordinate and Level a From AutoCAD to Attached Excel Tamplate....

If select in CAD automatically update in Excel.


SAMPLE_DATA_SHEET_SWALE.xlsx SAMPLE_SWALE.dwg

Share this post


Link to post
Share on other sites
BIGAL
Posted (edited)

There is a huge amount of info about taking block attributes to excel, I would suggest you do a bit of a google. You should be able to find something close and then it can be edited to suit your block name and attributes required.



The first step is to make columns of the blocks, you can then copy and paste the second set of columns.



Maybe look at DATAEXTRACTION its built in.  https://allaboutcad.com/autocad-tutorial-extract-attributes/

Edited by BIGAL

Share this post


Link to post
Share on other sites
Shil143
Posted (edited)

Hi BIGAL,

 i need to update Same template, There is ATTOUT also but i need in This Excel Template

Edited by Shil143

Share this post


Link to post
Share on other sites
BIGAL

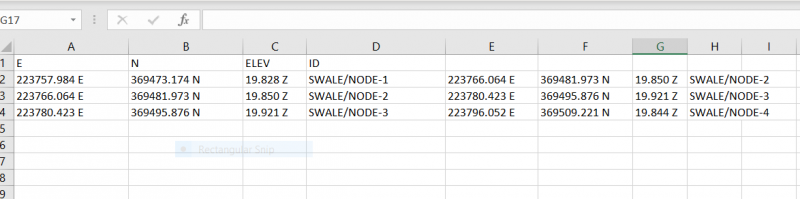

I did dataextraction made a csv opened it in excel and made this took a couple of minutes.
