DUCTWORK DOESNT DISPLAY WHEN i DO A SECTION?

Recommended Posts

raj banerjee

i have used the section mark command in mep to creat a section, the building is displayed byt no ductwork?



anybody know the reason for this? the ducts were drawn in mep using the ductwork workspace tools

Share this post


Link to post
Share on other sites
LifeoRiley0

Are you using the single line feature?

Share this post


Link to post
Share on other sites
raj banerjee

single line feature? havnt a clue what the even is? lol if I xref the layout into a new drawing and do a section that way it displays all the info. really confusing

Share this post


Link to post
Share on other sites
LifeoRiley0

If we do a section and the pipe is in single line then it doesn't show. I have had duct show in plan view but not in iso view. I had to copy and paste the duct into another drawing to get it to show up. Yes, very confusing and glitchy.

Share this post


Link to post
Share on other sites
dumfatnhappy
i have used the section mark command in mep to creat a section, the building is displayed byt no ductwork?



anybody know the reason for this? the ducts were drawn in mep using the ductwork workspace tools

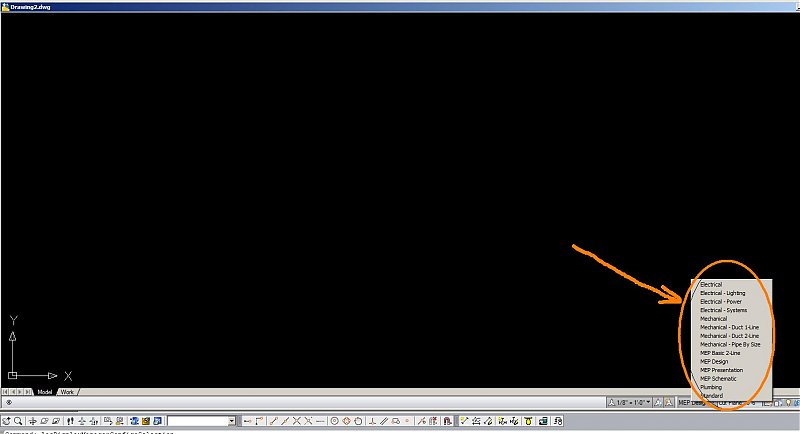

check these settings....(attached)



play with them I found MEP Design keeps my pipe from disappearing :o
