Inventor Frame Analysis Know-how / Location of End Cap in Content Library


Recommended Posts

Posted

1. I've been encountering challenges on the use of the frame and stress analysis in inventor. Can someone help on how to calculate and apply loads to members?

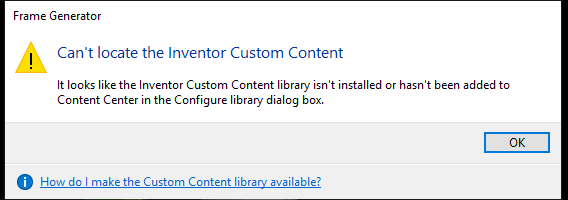

2. Currently using inventor 2020 and there is tool that makes it easier to apply end caps to frames but whenever i try using it, i get this message; 2066781660_Endcap.PNG.706a89891ec452f84e9bb21e2b010907.PNG



Can someone please help on this?
