Cannot remove dimension lines in Layout view


PJ01

Recommended Posts

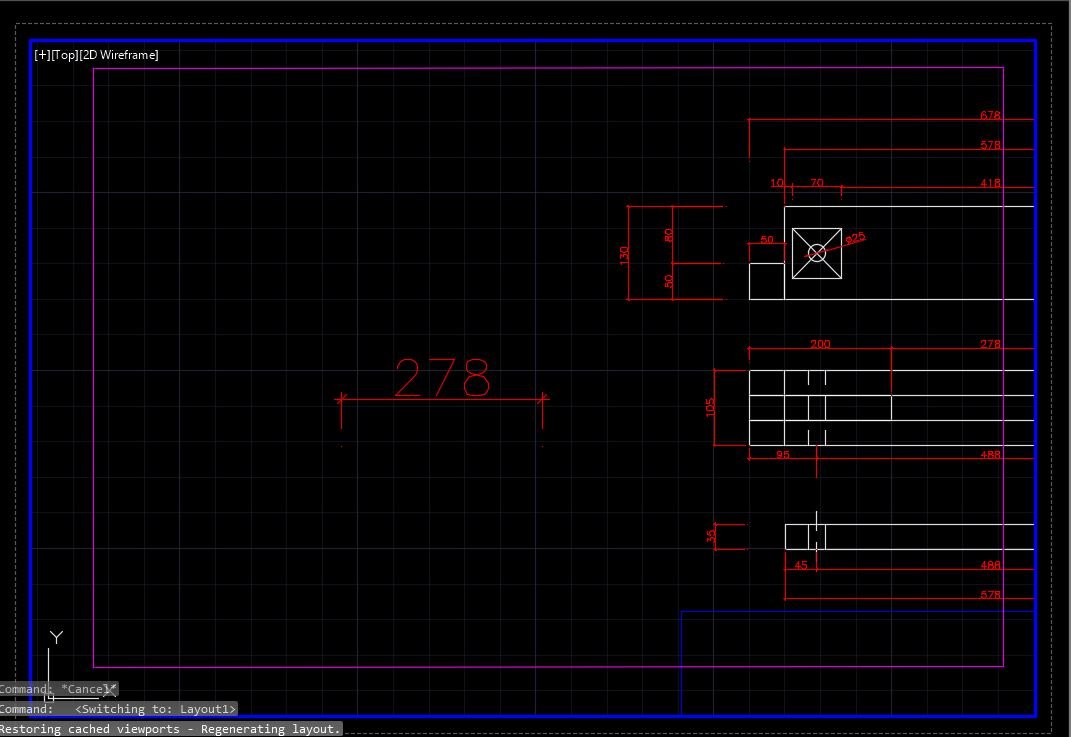

Hello, I  have drawn dimension lines in the Layout view by mistake, and now cannot remove them. In the attached pic it is the dimension "278" on the left of the page



Can anyone please advise how to remove this?  The dimension is not shown on the Model screen



regards,



PJ





moxon error.JPG

Link to comment
Share on other sites

All tabs other than "model" are always paperspace.  The viewports are like transparent windows looking into model space (if that makes sense) :)



In some cases it's easier to put callouts and notes and stuff in paperspace over the viewport depending on the situation but, generally speaking, the meat and potatoes of your drawing are going to be in model space.



ChriS

Link to comment
Share on other sites

  • 3 weeks later...
4 hours ago, rohitmittal said:

It appears the dimensions are in Paperspace, not in the viewport.  On the Layout Tab, toggle into Paperspace by clicking the word "Model" right in the middle of the Statusbar.  When it changes to "Paper" you'll be able to select (and erase) any objects in Paperspace

It is customary to read the responses to the OP in order to know that someone already answered the question two days prior.
