Border lines are coming zig zag

Recommended Posts

alark

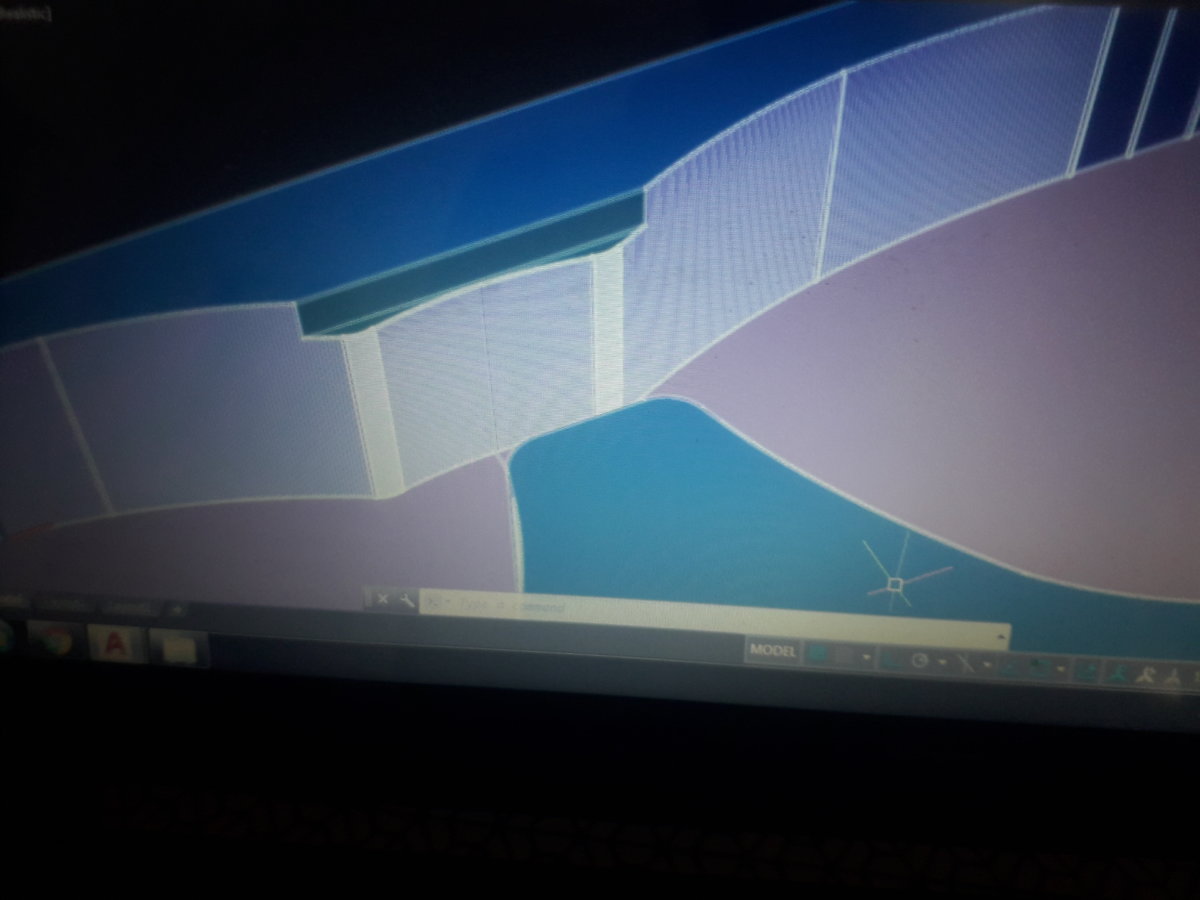

Hi. I am drawing this object 3d model in my unregistered autocad 2k18 version. The object is having smooth lines in my system.

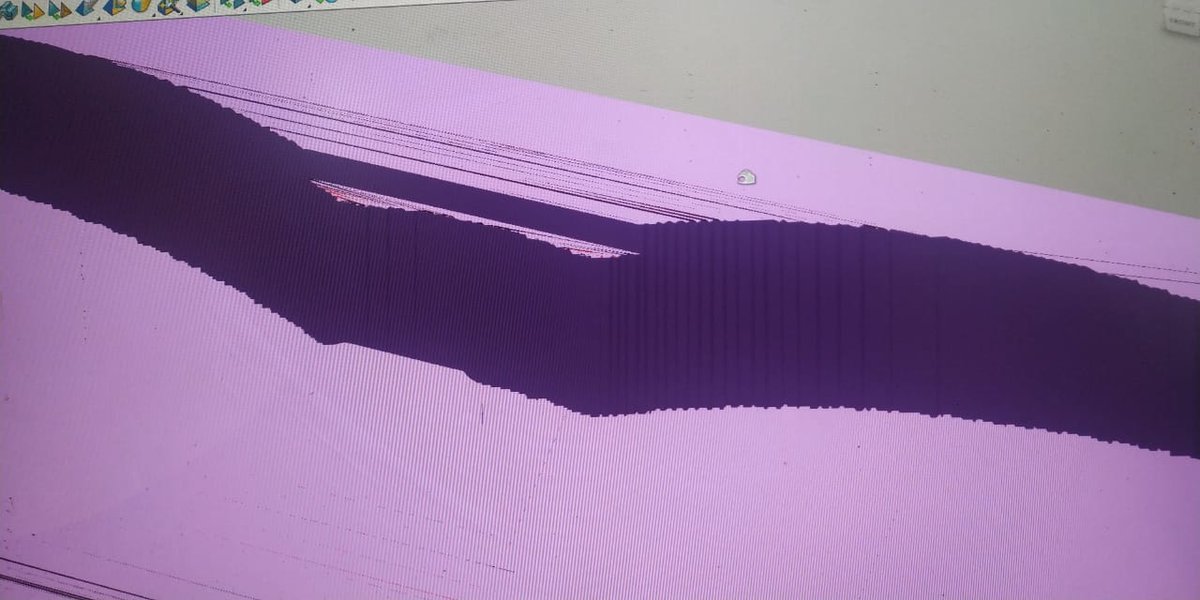

When the same file is opened for cnc cutting, the borders are showing zig zag.

What should I do to overcome this problem?



I think the curve I used for this was polyline that was changed to fit.

WhatsApp Image 2019-08-28 at 10.53.34 AM.jpeg


Share this post


Link to post
Share on other sites
Cad64

You will have better luck if you use lines and arcs. CNC machines typically don't like any sort of spline objects.
