M line w/ dimensions

Recommended Posts

RyanAtHC

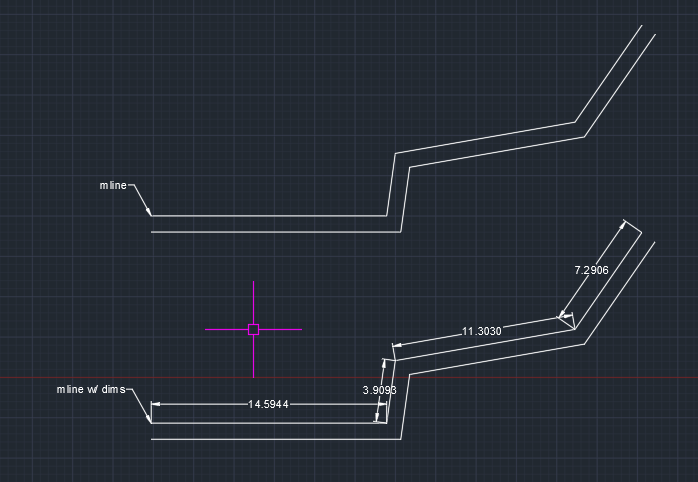

Does anyone know if there is a lisp that will create a multiline with dimensions automatically attached to end points or if that is even possible? I attached a picture (with manually added dimensions) to show what I am looking for.


Share this post


Link to post
Share on other sites
BIGAL

Just search for dimension pline, there is lots out there. have a look at www.lee-mac.com I think lee has something.



Also this attached.



converts mline to pline.lsp

Edited by BIGAL
