peterhuang913 Posted January 30, 2009 Share Posted January 30, 2009 Is there a max size to the arrowhead? I tried to put a 1' arrow on a 2' leader and it won't show up. If I adjust the leader to longer, then it shows up. Oddly, I drew the same thing yesterday and it works and it's still there, same plot. Quote Link to comment Share on other sites More sharing options...
MaxwellEdison Posted January 30, 2009 Share Posted January 30, 2009 Basically it depends on the distance from your arrowhead to the landing of the leader. I've never taken the time to figure out the ratio involed, but it appears to be around 1/3. If your arrowheads are disappearing their size is probably too large anyway, or you're trying to get the landing to close to the object. Quote Link to comment Share on other sites More sharing options...
peterhuang913 Posted January 30, 2009 Author Share Posted January 30, 2009 Is there a way pass that? Quote Link to comment Share on other sites More sharing options...
MaxwellEdison Posted January 30, 2009 Share Posted January 30, 2009 Not that I know of, and you really shouldn't want to. How big are yout arrowheads plotting and how far away is the landing? Quote Link to comment Share on other sites More sharing options...

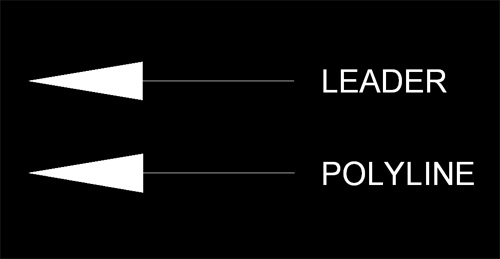

Cad64 Posted January 30, 2009 Share Posted January 30, 2009 You could create a leader with a Polyline. Then you could adjust the landing to whatever length you need. For example: Command: PLINE Specify start point: (Select starting point on screen) Current line-width is 0.0000 Specify next point or [Arc/Halfwidth/Length/Undo/Width]: W Specify starting width : 0 Specify ending width : .340 Specify next point or [Arc/Halfwidth/Length/Undo/Width]: (Select point on screen) Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: W Specify starting width : 0 Specify ending width : 0 Specify next point or [Arc/Close/Halfwidth/Length/Undo/Width]: (Select point on screen) Quote Link to comment Share on other sites More sharing options...
peterhuang913 Posted January 30, 2009 Author Share Posted January 30, 2009 Ok, that works, but I'm working with a right angle arrowhead. I suppose I can just draw it out, to imitate it, but it defeats the purpose of having an arrowhead feature. I'm using mleader to make a ray on each side of a text. Kinda like, So there's no really way around the size limitation of arrowheads? Quote Link to comment Share on other sites More sharing options...
totzky Posted January 31, 2009 Share Posted January 31, 2009 So there's no really way around the size limitation of arrowheads?Create your own arrowhead. It came from 2000i Help, I think it can be of help. Creating Arrowheads [user's Guide: AUG]Dimension line arrowheads are AutoCAD blocks. (See chapter 13, Using Blocks and External References.) AutoCAD provides 19 arrowheads that you can use, but you can also create and use your own arrowhead blocks. AutoCAD inserts the block in the arrowhead location and sets the object's X and Y scale factors to arrowhead size × overall scale. To trim the dimension line, AutoCAD inserts the rightmost block with a zero rotation angle for horizontal dimensions and rotates the leftmost block 180 degrees about its insertion point. If you use paper space scaling, AutoCAD computes the scale factor before applying it to the arrowhead size value. Quote Link to comment Share on other sites More sharing options...
