lisp to draw polyline with specifc width + layer

Recommended Posts

masterfal

Hi All,



I have a lisp routine set up where when i type the command and then choose a polyline, it will modify this polyline to have a set thickness. It doesn't work on normal lines though. I have to use a different routine to change a line into a polyline before it sets the thickness

Is it possible to set up so that the same command can work on both lines or polylines? And Is it also possible to specify a layer to put this polyline onto?

I'd like to make it so typing B1 will make a polyline with width of 50 in a layer called _beams





(defun c:b1 () (command "pedit" pause "w" "50" ""))



Share this post


Link to post
Share on other sites
BIGAL

I have a lisp that I am trying to work out the last step it allows you to do any width by type P23 ie a pline 23 wide you can type P plus any number. It makes a new pline with a width but you could edit it and do a is it a line or a pline  then pedit the entity. For any one interested see code attached problem is in color option.



What about something like this. The multi getvals can be changed so it remembers the layer and width.








(defun c:pedwid  ( / ans entis lay wid )
(while (setq ent (car (entsel "\nPick an object to make pline width:")))
(setq entis (cdr (assoc 0 (entget ent))))
(if (not AH:getvalsm)(load "Multi Getvals.lsp"))

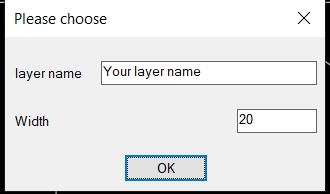

(setq ans (AH:getvalsm (list "Please choose" "layer name " 25 24 "Your layer name" "Width " 8 7 "20" )))
(setq lay (nth 0 ans))
(setq wid (atof (nth 1 ans)))
(cond
((= entis "LINE")(command "Pedit" ent "Y" "w" wid ""))
((= entis "ARC")(command "Pedit" ent "Y" "w" wid ""))
(if (= entis "LWPOLYLINE")(command "Pedit" ent "w" wid ""))
((Alert "Object chosen can not be made into a pline"))
)
(command "chprop" (entlast) "" "LA" lay "")
)
(princ)
)
(c:pedwid)

Multi GETVALS.lsp

pline arc offset.lsp

Edited by BIGAL

Share this post


Link to post
Share on other sites
masterfal

thats pretty cool. converts to polyline with thickness but doesn't seem to want to change layer? just puts it in whatever the current layer is

Share this post


Link to post
Share on other sites
BIGAL

Will double check, do you need remember layer and width ?

Share this post


Link to post
Share on other sites
masterfal

can it be set up so skips the prompt to input thickness & layer name? i only need it to do 3 different thicknesses 50, 100, 200 and all in same layer (_beams)

Was hoping to get it set up with 3 different commands that changes the line to those actual widths

B1 would be 50 thick in _beams layer

B2 would be 100 thick in _beams layer

B3 would be 200 thick in _beams layer

Share this post


Link to post
Share on other sites
BIGAL

Ok much simpler, will add to do list

Share this post


Link to post
Share on other sites
masterfal

awesome, much appreciated!!

Share this post


Link to post
Share on other sites
BIGAL

Try this



(defun c:b1 ( /) (pedwid 50.0 "_beams layer"))
(defun c:b2 ( /) (pedwid 100.0 "_beams layer"))
(defun c:b3 ( /) (pedwid 200.0 "_beams layer"))

(defun pedwid  (wid lay / entis )
(while (setq ent (car (entsel "\nPick an object to make pline width:")))
(setq entis (cdr (assoc 0 (entget ent))))
(cond
((= entis "LINE")(command "Pedit" ent "Y" "w" wid ""))
((= entis "ARC")(command "Pedit" ent "Y" "w" wid ""))
(if (= entis "LWPOLYLINE")(command "Pedit" ent "w" wid ""))
((Alert "Object chosen can not be made into a pline"))
)
(command "chprop" (entlast) "" "LA" lay "")
)
(princ)
)



Edited by BIGAL

Share this post


Link to post
Share on other sites
masterfal

thanks for having a look. when i try this it it only lets me select 1 line at a time and after choosing the line i have press enter a couple of times to end the command. anyway to get around those things?

Share this post


Link to post
Share on other sites
BIGAL

Sorry did not test, I left the exit CHPROP off  (command "chprop" (entlast) "" "LA" lay "" )

Share this post


Link to post
Share on other sites
masterfal

ahh i was so close.. i was adding the additional "" at the ends of the lines below instead of where you showed to add it

((= entis "LINE")(command "Pedit" ent "Y" "w" wid ""))
((= entis "ARC")(command "Pedit" ent "Y" "w" wid ""))
(if (= entis "LWPOLYLINE")(command "Pedit" ent "w" wid ""))

Share this post


Link to post
Share on other sites
masterfal

works great btw. thankyou!

Share this post


Link to post
Share on other sites
masterfal

ahhhh damn it. may have done this for nothing.. didn't realise thick polylines don't print out the same as a solid shade even though they look identical on screen.. is this normal?

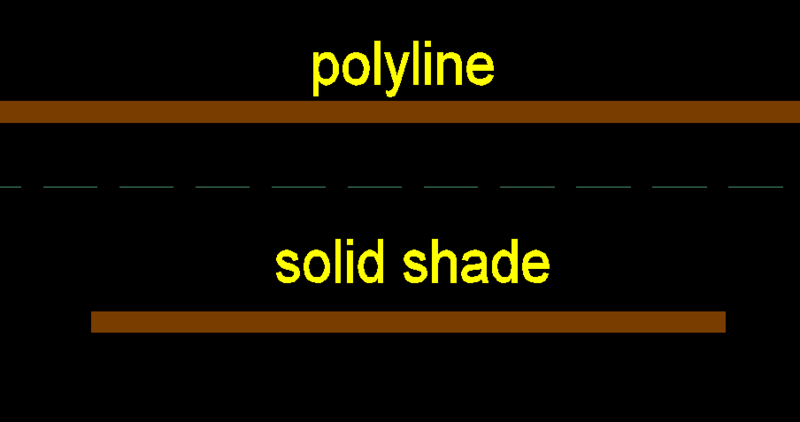

on screen:








print:


Share this post


Link to post
Share on other sites
BIGAL

Never had a problem is the pline a linetype other than continuous ? What are you plotting to ? Maybe others have seen this problem.

Share this post


Link to post
Share on other sites
Roy_043

Maybe the OP uses STB instead of CTB?

Share this post


Link to post
Share on other sites
