Loft Errors

Recommended Posts

Pritchard89

So, I've been attempting to refresh my Inventor skills for a few weeks now. All is going well for the most part, using tutorials and isometric drawing to practice.

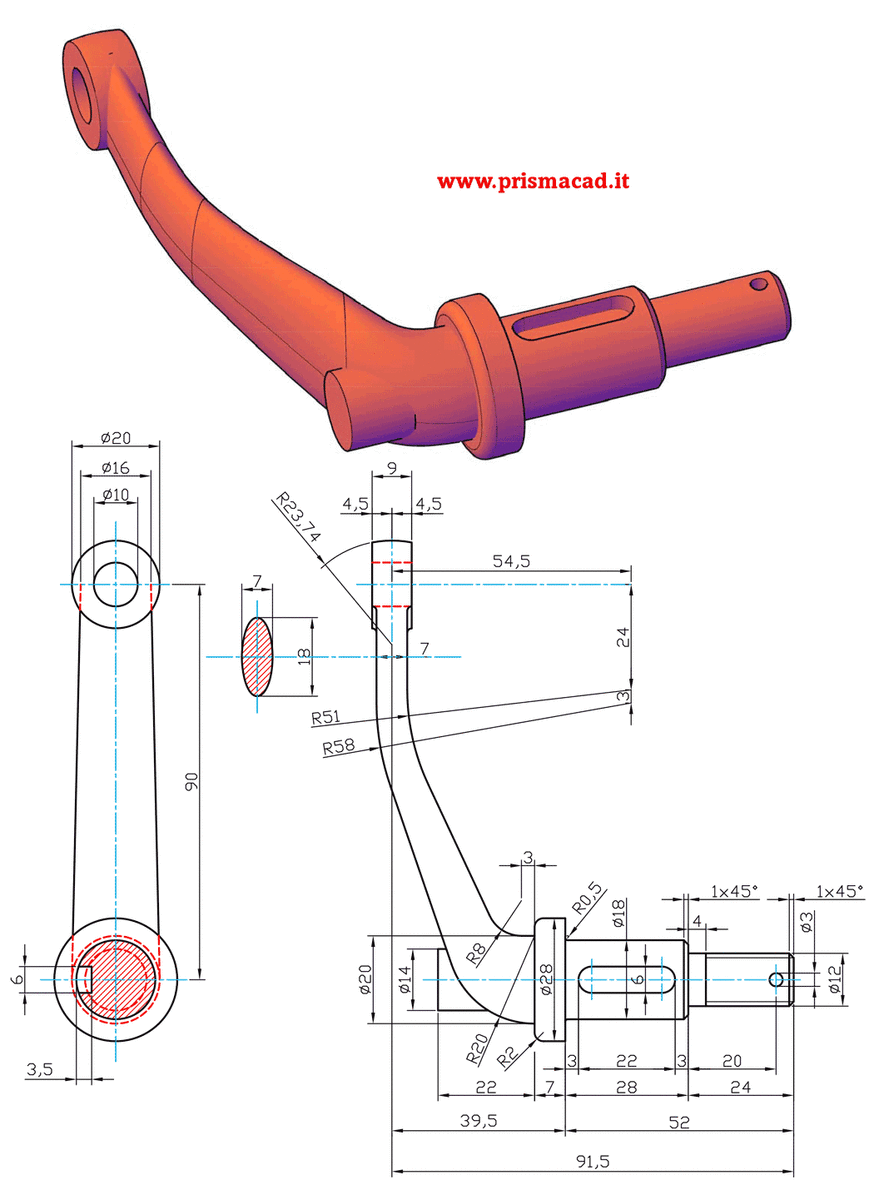

I'm having trouble currently with the loft function on one specific drawing. Attached are the drawning and my part. The loft it between parts 10, 11 and 12, we seems to work fine but will not conform to the rails of sketch 9. The error reads something along the lines of cannot conform to rails as some of the lines do not intersect the sections. I cannot for the life of me find out where this is the case? I do not want to pick up any bad practices, so any advice would be greatly appreciated.
