jntm226

Convert 2D/3D polyline to Conduit/Cable Tray AutoCAD with .NETP

Recommended Posts

jntm226

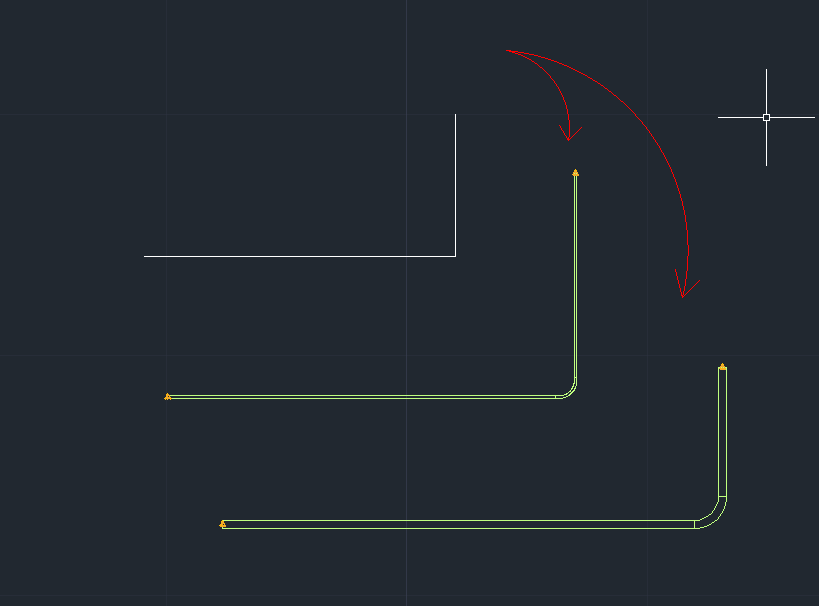

Hi guys, I am searching for help. I need to conver *lines (POLYLINE, LINE, ARC, LWPOLYLINE, SPLINE, ELLIPSE, 3DPOLYLINE, MULTILINE, RAY) to Conduit or Cable Tray in AutoCAD MEP.



I relativaly new in AutoCAD and I am not sure where start. I alredy was requesting for help in another forums but no luck.








My last hope are you guys, I hope someone can help me.Thank you very much in advance








Convert Line to Conduit Cable Tray.dwg

Share this post


Link to post
Share on other sites
BIGAL

Did you not get a recommendation to look at Tharwats website for his cable tray stuff. Just google.

Share this post


Link to post
Share on other sites
