Custom Hatch with Question Marks

Recommended Posts

chrismb1

I need a custom hatch that will fill an area with question marks. I tried manipulating an existing PAT file created for the number 2, but I can't seem to get it. Does anyone have a PAT that will reflect question marks or see the issue with below. Thanks

*HLETT2E0 MOD3,
-90,54,54,0,100,1,-99
123.6900711,54,54,83.2050323,-55.4700203,3.6055512,-356.949585
123.6900711,154,54,83.2050323,-55.4700203,3.6055512,-356.949585
180,52,57,0,100,3,-97
225,49,57,-70.7106705,-70.7106857,2.8284271,-138.592926
90,50,45.595,0,100,3,-97
90,50,105,0,100,1,-97
243.434967,54,53,-89.4427338,-44.7213364,2.236068,-221.3707275
218.6598053,105.5,93,-62.4695015,-78.08688354,4,-633.9093018
218.6598053,205.5,93,-62.4695015,-78.08688354,4,-633.9093018
218.6598053,305.5,93,-62.4695015,-78.08688354,4,-633.9093018
218.6598053,405.5,93,-62.4695015,-78.08688354,4,-633.9093018
218.6598053,505.5,93,-62.4695015,-78.08688354,4,-633.9093018

Share this post


Link to post
Share on other sites
eldon

My initial reaction is that the hatch name is too long and contains a space.



I altered the hatch name to QUERY and changed the first line to *QUERY, and got this picture.



I think there are a couple of elements that are not quite right, but being able to see it should help you to finalise it. Good luck.





Query hatch.PNG

Share this post


Link to post
Share on other sites
eldon

How did you get on with your manipulations?



I thought to have a bit of a go and came up with this definition and a picture:-



*Query,question mark
90,50,44,100,100,0.75,-1.4,2.85,-95
90,54,53,100,100,1,-99
33.6900576,50,49,55.4700052,83.2050391,3.6055516,-356.949759
33.6900576,150,49,55.4700052,83.2050391,3.6055516,-356.949759
33.6900576,250,49,55.4700052,83.2050391,3.6055516,-356.949759
63.4349489,53,51,89.4427191,44.7213596,2.2360680,-221.3707298
123.6900675,54,54,138.6750491,27.7350098,3.6055512,-356.9495763
180,52,57,100,100,3,-97
225,49,57,70.7106781,70.7106781,3,-138.4213562

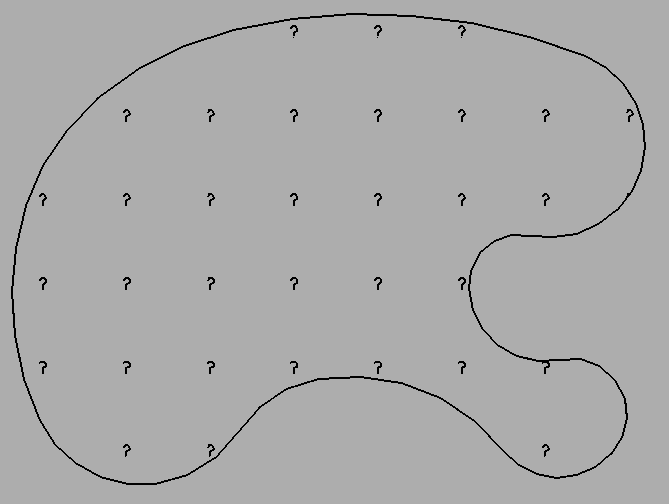

Question mark Hatch.PNG

Share this post


Link to post
Share on other sites
