How to select objects to perform 'subtract' command

Recommended Posts

detailer2012

Hello,

Is there a simple way to select 3D objects so I can perform the "subtract" command within a lisp routine?  I'm trying to write a routine that produces some basic 3D objects.  In this particular case, just a simple purlin cleat with several holes.  I don't have too much trouble in creating the 2D image (rectangular plate and circles within for holes), and I can extrude 2D image to desired thickness too.  My difficulty is trying to select extruded circles and rectangle independently to perform subtraction command.  I’ve used the crossing selection with ssget to select 2D images for extrusion but I’d prefer to use an alternate selection method to avoid potentially selecting other objects in model.  I haven't included any attempt to "subtract" objects in the routine below.

I’m open to a completely new alternative too.  I’ve tried just making 3D blocks for regularly used cleats but these don’t behave well when I "solprof" the model to produce drawings.



Thanks in advance

(defun c:PC ()

  (setq a (getreal"\nenter purlin depth 100, 150, 200 or 250mm "));Nominate purlin depth
  (setq b (getpoint "\nEnter base point of cleat"));Nominate bottom centre of cleat
  (setq r1 (polar b (dtr 0)37.5));Calculate bottom RHS of cleat (rectangle)
  (setq r2 (polar b (dtr 180)37.5));Calculate bottom LHS of cleat (rectangle)

;Open if statement to verify user input is acceptable

  (if (or(= a 100)(= a 150)(= a 200)(= a 250))

;Open cond statement to determine correct cleat geometry with respect to purlin depth entered by user
	(cond ((= a 100)(setq r3 (polar r2 (dtr 90)105))(setq r4 (polar r1 (dtr 90)105));Geometry for 100mm purlin
	      (setq c1 (polar b (dtr 90)40))(setq c2 (polar b (dtr 90)80))(rect))
          ((= a 150)(setq r3 (polar r2 (dtr 90)145))(setq r4 (polar r1 (dtr 90)145));Geometry for 150mm purlin
	      (setq c1 (polar b (dtr 90)55))(setq c2 (polar b (dtr 90)115))(rect))
  	      ((= a 200) (setq r3 (polar r2 (dtr 90)195)) (setq r4 (polar r1 (dtr 90)195));Geometry for 200mm purlin
	      (setq c1 (polar b (dtr 90)55)) (setq c2 (polar b (dtr 90)165))(rect))
	      ((setq r3 (polar r2 (dtr 90)245))(setq r4 (polar r1 (dtr 90)245));Geometry for 250mm purlin
	      (setq c1 (polar b (dtr 90)55))(setq c2 (polar b (dtr 90)215))(rect));Else condition of 'cond' statement

	 );cond

      (prompt "\nYou have chosen an invalid purlin size");Else condition of 'if' statement

  );if

   (princ)
);defun
(princ)

;==============================================
;define sub function to evaluate cleat geometry
(defun rect ()
  (command "_.rectangle" r3 r1 "");Outline of cleat plate
  (command "_.circle" c1 9 "");Outline of lower cleat hole
  (command "_.circle" c2 9 "");Outline of upper cleat hole
  (setq s1 (ssget "c" r3 r1));Window selection to select item to extrude
  (command "_.extrude" s1 "" 8 "");Extrude cleat items

  (princ)
  )

;=========================================
;degrees to radians function
(defun DTR (a)

(* PI (/ a 180.0))
);defun
;=========================================

Share this post


Link to post
Share on other sites
ronjonp

Since you only have 4 sizes, have you thought about making a dynamic block with visibility states?

Share this post


Link to post
Share on other sites
BIGAL
Posted (edited)

Redo this (defun rect ()



If you make rectang and extrude (setq ent1 (entlast))

make circle extrude  (setq ent2 (entlast))

make circle extrude  (setq ent3 (entlast))

Subtract ent1

objects ent2 ent3 ""

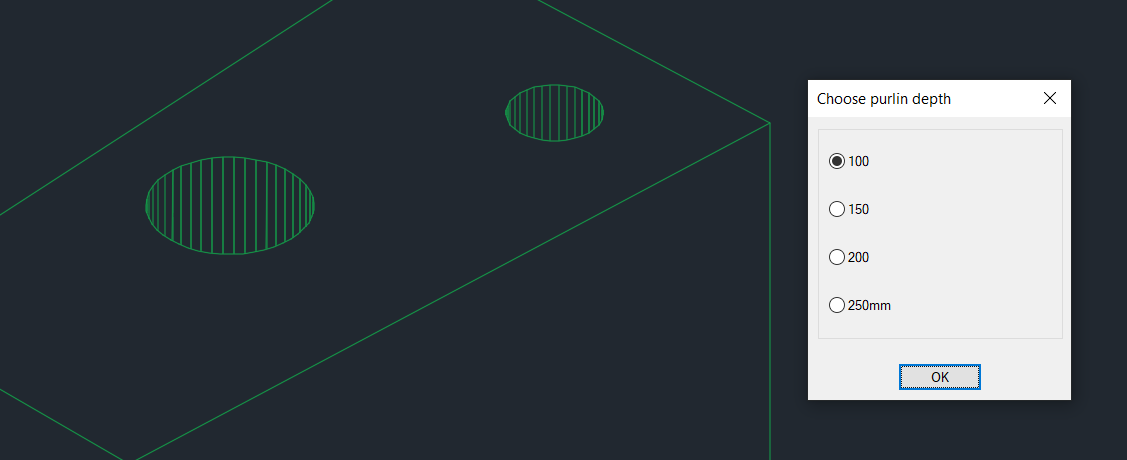

Dcl is Multi Radio Buttons.lsp (setq ans (ah:butts but "V"   '("Choose purlin depth" "100" "150" "200" "250mm "))) Multi radio buttons.lsp

Edited by BIGAL

Share this post


Link to post
Share on other sites
hanhphuc
Posted (edited)
15 hours ago, detailer2012 said:

 I haven't included any attempt to "subtract" objects in the routine below.

I’m open to a completely new alternative too



$0.05 try entmakex , then you don't need to select circle



1. LWPOLYLINE with (list r1 r2 r3 r4 r1) & closed (70 . 1)

2. CIRCLE with radius (cons 40 c1)

3. CIRCLE with radius (cons 40 c2)

4. (setq lst (list mkpoly mkcirc1 mkcirc2) )



(defun rectx ( l / s1 sx s0 e)
    (foreach x '(s1 sx s0) (set x (ssadd)))
    (foreach en	l ; (list mkpoly mkcirc1 mkcirc2)
      (ssadd en s1)
      (command "_.extrude" s1 "" 8 "")
      (ssadd (entlast) sx)
      )
    (setq e (ssname sx 0))
    (ssadd e s0)
    (ssdel e sx)
    (command "_.subtract" s0 "" sx "")
    (entlast)
    )



*note: not frequent command user,  i assume ACAD command extrude & subtract  accept pickset thus ssadd



you may try vla- functions

vla-addextrudedsolid for extrude

vla-boolean for subtract



you don't need to put (rect) in every expression in cond

eg:  (cond ((= a 100) bla bla (rect)) ((= a 150) bla bla (rect)) ( blb bla ...(rect) ))



inside your defun C:PC snippet,

remove  (rect)



use progn , entmakex after cond then (rectx lst)

(progn

(cond (..)(..) ) ; your cond without (rect)

; start entmakex snippet
;(setq mkpoly (entmakex <add code here> )
;(setq mkcirc1 (entmakex <add code here> )
;(setq mkcirc2 (entmakex <add code here> )

(setq lst (list mkpoly mkcirc1 mkcirc2 ))
(rectx lst)

)

p/s: pseudo snippet, entmakex try it yourself, reply if you hit the wall :)









Edited by hanhphuc
pseudo comment & about vla-

Share this post


Link to post
Share on other sites
detailer2012

Thanks to everyone for their reply.  Great information and plenty to go on with.   I hadn’t been aware of the DCL interface option at all, so I’m pretty keen to see what else I can use it for now too.

I’ll definitely take on board all the tips and suggestions.  They’ve opened up a bunch of ideas for other things I can now too which is cool.

Thanks again!

Share this post


Link to post
Share on other sites
BIGAL

No worries, there are a few more library dcl's by me in download and RLX has posted some cool library ones as well. Others like Lee-mac, list dcl are worth getting a copy of Lee has two versions a single,  a pick and add to new list when you want more than 1 answer.

Share this post


Link to post
Share on other sites
detailer2012

Awesome.  Thanks BigAl.  I'm at risk of spending too much time developing/personalising my software and not doing enough work now.  Hahaha!  It's all worthwhile though for sure.  It's enjoyable, and it increases productivity without a doubt.  Thanks to you and other like minded people it's possible!

Share this post


Link to post
Share on other sites
hanhphuc
Posted (edited)

FWIW



(defun opt? (% msg / $)
  (ai_sysvar '(("DYNMODE" . 3)))
  (initget 1 (vl-string-translate "/" " " %))
  (setq $ (getkword (strcat "\n" msg " [" % "] : ")))
  (ai_sysvar nil)
  $
  )

eg: %=keyword slash "/" delimited

   (setq a (atoi (opt? "100/150/200/250" "Enter purlin depth mm")))


select mouse double-click as BCAD

or down-arrow key ⬇️ to show radio button (ACAD only?)









Edited by hanhphuc
link
