command MLeader with Block in AutoCAD Map 2021

Recommended Posts

Costinbos77

Hi ,



using the next code :

; bML = name of a Block with 1 Attribute

(setq bML "CircleML"  p '(0 0 0)  h 0.2  r 1  txS "Standard")

(entMake (list '(0 . "BLOCK") (cons 2 bML) '(70 . 2) '(8 . "0") '(10 0 0 0) '(6 . "ByLayer") '(62 . 256) '(4 . " ML Circle"))  ) ; end
(entMake (list '(0 . "Circle") '(8 . "0") '(62 . 256) '(6 . "ByLayer") '(10 0 0 0) (cons 40 r) ) ) ; end of e
(entMake (list '(0 . "AttDef") '(8 . "0") '(62 . 256) '(6 . "ByLayer") '(10 0 0 0) (cons 40 h) '(1 . "") '(50 . 0) '(41 . 1) '(51 . 0) (cons 7 txS) ' (71 . 0)
'(72 . 0) '(11 0 0 0) '(280 . 0) '(3 . "ML-Circle") '(2 . "ML-CIRCLE") '(70 . 0) '(72 . 4) '(73 . 0) '(280 . 1) ) ) ; end of e Middle
(entMake '((0 . "EndBlk") (8 . "0")) ) ; end of e


(command "_.mLeader" "_H" "_O" "_C" "_B" bML "_X" p (mapcar '1+ p) "attrVal")

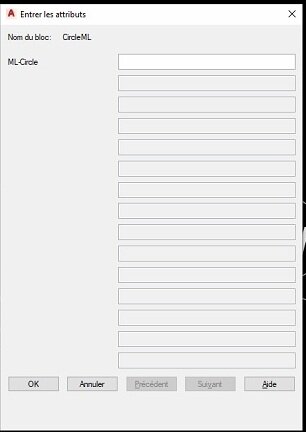

1. Why is giving me the next Atrribute Dialog in AutoCAD Map 2021 ?


This dialog window seems to appear for the insertion of any Block with Attributes .



Was working fine in any other AutoCAD versions (MAP 2011 , 2018) .

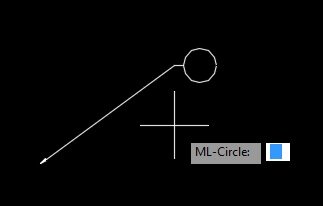

In AutoCAD 2018 , the dialog is like this :




2. Even the value of the string "attrVal" is not appearing .



3. It is a new variable that is dealing with Attribute dialog ?



Regards ,



Costin



Edited by Costinbos77

Share this post


Link to post
Share on other sites
ronjonp

Try setting ATTREQ to 0 ?

Share this post


Link to post
Share on other sites
Costinbos77
2 hours ago, ronjonp said:

Try setting ATTREQ to 0 ?



This is suppressing the dialog window , but after that I can't put any value with lisp because :

;   TextJustify = Exception occurred
;   TextLeftAttachmentType = 1
;   TextLineSpacingDistance = Exception occurred
;   TextLineSpacingFactor = Exception occurred
;   TextLineSpacingStyle = Exception occurred
;   TextRightAttachmentType = 1
;   TextRotation = Exception occurred
;   TextString = Exception occurred
;   TextStyleName = Exception occurred
;   TextTopAttachmentType = 0
;   TextWidth = Exception occurred

(setq ml (vlax-Ename->Vla-Object (entLast)) )

_$ (vla-Put-TextString ml "newVal")
; error: Automation Error. Description was not provided.

No matter if AttReq = 0 or 1 !

Edited by Costinbos77

Share this post


Link to post
Share on other sites
Costinbos77

If someone can run the next cod in AutoCAD MAP eventually 2021 and to leave a feedback, will be great .

(setq bML "CircleML"  h 0.2  r 1  txS "Standard")

(entMake (list '(0 . "BLOCK") (cons 2 bML) '(70 . 2) '(8 . "0") '(10 0 0 0) '(6 . "ByLayer") '(62 . 256) '(4 . " ML Circle"))  ) ; end
(entMake (list '(0 . "Circle") '(8 . "0") '(62 . 256) '(6 . "ByLayer") '(10 0 0 0) (cons 40 r) ) ) ; end of e
(entMake (list '(0 . "AttDef") '(8 . "0") '(62 . 256) '(6 . "ByLayer") '(10 0 0 0) (cons 40 h) '(1 . "") '(50 . 0) '(41 . 1) '(51 . 0) (cons 7 txS) ' (71 . 0)
'(72 . 0) '(11 0 0 0) '(280 . 0) '(3 . "ML-Circle") '(2 . "ML-CIRCLE") '(70 . 0) '(72 . 4) '(73 . 0) '(280 . 1) ) ) ; end of e Middle
(entMake '((0 . "EndBlk") (8 . "0")) ) ; end of e

(setq i 0)
(while  (setq i (1+ i)  ee (getPoint "\n  Get  Point  :  <  Enter  =  STOP  >  :  "))
  (command "_.mLeader" "_H" "_O" "_C" "_B" bML "_X" ee (mapcar '1+ ee) (itoa i))

) ; wh

In AutoCAD 2018 is running fine , without to ask something .



But in AutoCAD MAP 2021 is coming this dialog window with no i value .


Does that mean the insert command is different ?



Regards ,



Costin

Share this post


Link to post
Share on other sites
ronjonp
59 minutes ago, Costinbos77 said:

If someone can run the next cod in AutoCAD MAP eventually 2021 and to leave a feedback, will be great .


(setq bML "CircleML"  h 0.2  r 1  txS "Standard")

(entMake (list '(0 . "BLOCK") (cons 2 bML) '(70 . 2) '(8 . "0") '(10 0 0 0) '(6 . "ByLayer") '(62 . 256) '(4 . " ML Circle"))  ) ; end
(entMake (list '(0 . "Circle") '(8 . "0") '(62 . 256) '(6 . "ByLayer") '(10 0 0 0) (cons 40 r) ) ) ; end of e
(entMake (list '(0 . "AttDef") '(8 . "0") '(62 . 256) '(6 . "ByLayer") '(10 0 0 0) (cons 40 h) '(1 . "") '(50 . 0) '(41 . 1) '(51 . 0) (cons 7 txS) ' (71 . 0)
'(72 . 0) '(11 0 0 0) '(280 . 0) '(3 . "ML-Circle") '(2 . "ML-CIRCLE") '(70 . 0) '(72 . 4) '(73 . 0) '(280 . 1) ) ) ; end of e Middle
(entMake '((0 . "EndBlk") (8 . "0")) ) ; end of e

(setq i 0)
(while  (setq i (1+ i)  ee (getPoint "\n  Get  Point  :  <  Enter  =  STOP  >  :  "))
  (command "_.mLeader" "_H" "_O" "_C" "_B" bML "_X" ee (mapcar '1+ ee) (itoa i))

) ; wh

In AutoCAD 2018 is running fine , without to ask something .



But in AutoCAD MAP 2021 is coming this dialog window with no i value .


Does that mean the insert command is different ?



Regards ,



Costin

Same here in vanilla 2021

Share this post


Link to post
Share on other sites
Costinbos77

Thanks ronjonp  ,



that means from AutoCAD 2021 , the insert command is different .



Verry weird !!!🤢



Regards ,



Costin

Share this post


Link to post
Share on other sites
