Recommended Posts

mugshot

hello

its been years since i visit the site, and hope you guys could help me.

is there a lisp here that could create an wipeout between two object by clicking in between?

say a circle inside a rectangle, creating a wipeout by simply clicking inside the rectangle and automatically creates a wipeout on the circle...



im looking for a lisp for it to make a wipeout like sofas, chair, etc without going to trace the object.



thank you in advance and Keep safe everyone.

Share this post


Link to post
Share on other sites
BIGAL

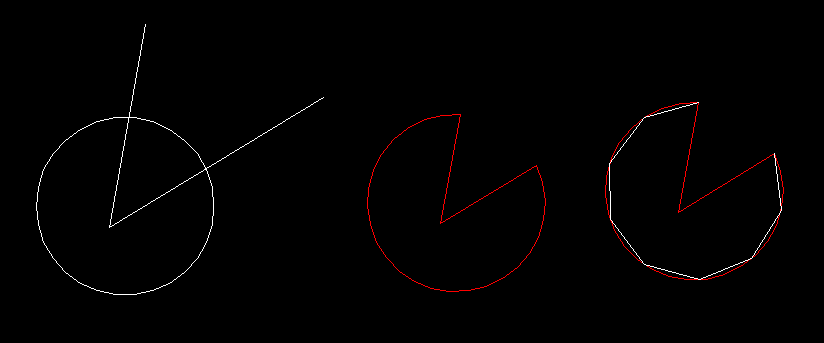

In the case of overlapping objects, if you bpoly the area then you can pull it apart and replace the arcs/bulge with short straights, some one a bit smarter than me may have something I only have the arch 2 chords part. You can pick the pline for the wipeout.






; converts an arc or circle to a series of straights
; By alan H 2012
; info@alanh.com.au

(vl-load-com)
(defun C:arc2chords ( / ss ncrd oldsnap ent endpt obj totlen arclen chrdpt num newpt ang cenpt)
(setq oldsnap (getvar "osmode"))

(if (= ncrd nil) (setq ncrd (getint "\nEnter number of chords: ")))
(setvar 'osmode 512)

(while (setq pt (getpoint "Pick Arc or Circle"))
(setq ss (ssget pt (list (cons 0 "Arc,Circle"))))
(setq obj (vlax-ename->vla-object (ssname ss 0 )))

(if (= "AcDbArc" (vla-get-objectname obj))
(progn
(setq  endpt (vlax-curve-getEndPoint obj))
(setq totlen (vla-get-ArcLength obj))
(setq arclen (/ totlen ncrd))
(setq chrdpt (vlax-curve-getStartPoint obj))
(setq num 1)
(command "_Pline" )
(while (= (getvar "cmdactive") 1 )
(command chrdpt)
(repeat ncrd
(command (vlax-curve-getPointatDist obj (* arclen num)))
(setq num (+ num 1))
)
(command endpt)
(command "")
)
)
)

(if (= "AcDbCircle" (vla-get-objectname obj))
(progn
(setq rad (vla-get-radius obj))
(setq cenpt (vlax-safearray->list (vlax-variant-value (vla-get-center obj))))
(setq totlen (* pi (* 2.0 rad)))
(setq ang  (/ (* pi 2.)  ncrd))
(setq chrdpt (polar cenpt 0.0 rad))
(setq num 1.0)
(command "_Pline" )
(while (= (getvar "cmdactive") 1 )
(command chrdpt)
(repeat ncrd
(command (polar cenpt (* num ang) rad))
(setq num (1+ num))
)
(command "c")
)
)
)
(setvar "osmode" oldsnap)
)
(princ)
)
(c:arc2chords)



Share this post


Link to post
Share on other sites
mugshot

thank you guys....

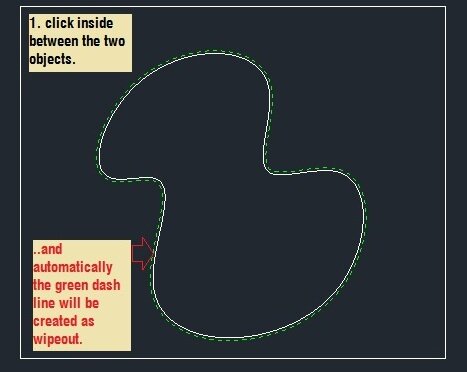

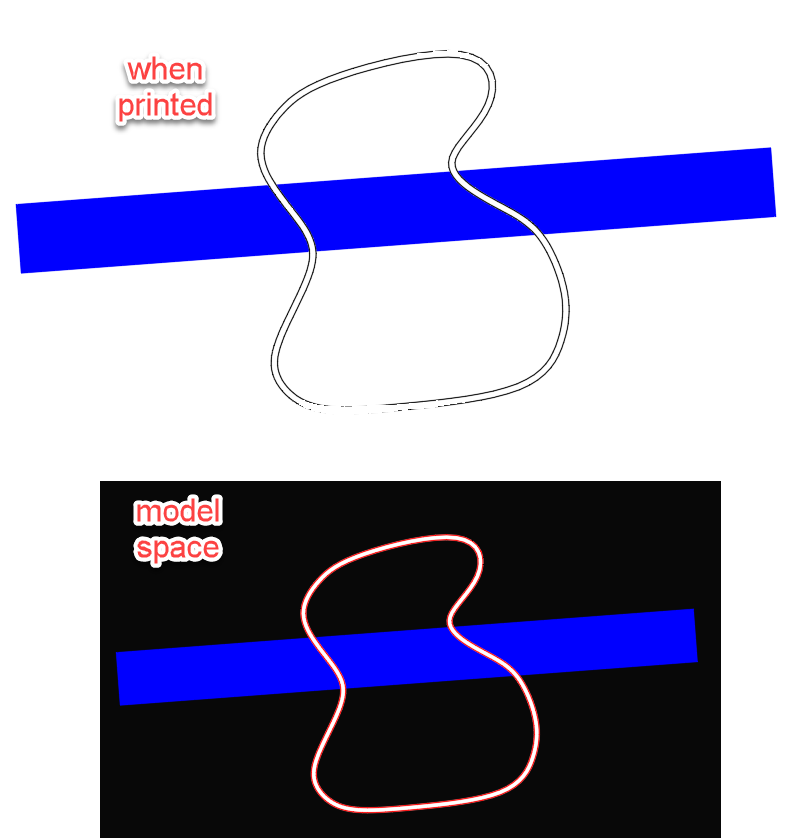

my apologies, but as per attached is what i want to achieve.



cheers.


Share this post


Link to post
Share on other sites
ronjonp

Use a hatch.

Share this post


Link to post
Share on other sites
mugshot

hatch sir? then???



Share this post


Link to post
Share on other sites
ronjonp

Then do something that mimics a wipeout ?

Share this post


Link to post
Share on other sites
ronjonp
14 hours ago, mugshot said:

thank you guys....

my apologies, but as per attached is what i want to achieve.



cheers.


Something like so:




Drawing1.dwg

Share this post


Link to post
Share on other sites
BIGAL

As per PM



If a spline explode then pedit and rejoin all the segments then do a wipeout use polyline keep outline.




Share this post


Link to post
Share on other sites
mugshot

hello...

its been awhile, i tried sort of thing, but it didnt work.



maybe my description wad blurry.

i found out that what i seeking is BOUNDARY, but instead of a boundary line, it will be automatically a converted to wipeout.



is there a lisp like that?



thanks...

cheers



Share this post


Link to post
Share on other sites
