lisp to find/highlight the offset value below 0.5m

Recommended Posts

amb2301

Hi friends,
  i have a task to find out the offset distance, which is below 0.5m offset then i need a lisp to highlight or circle that location.
please consider only the pline offsets & ignore line offsets.
could someone please help me to do this task.

Thanks in Advance.

Share this post


Link to post
Share on other sites
BIGAL

Need more info a dwg or image at least.

Share this post


Link to post
Share on other sites
amb2301
5 hours ago, BIGAL said:

Need more info a dwg or image at least.

 Thanks for looking on this thread Sir,

my dwg file size is so big, so i m just keeping the small part of it in this sample, i have marked the offset below 0.5m in green circled,

could you please have a look on it.offset_sample.dwg

Share this post


Link to post
Share on other sites
BIGAL

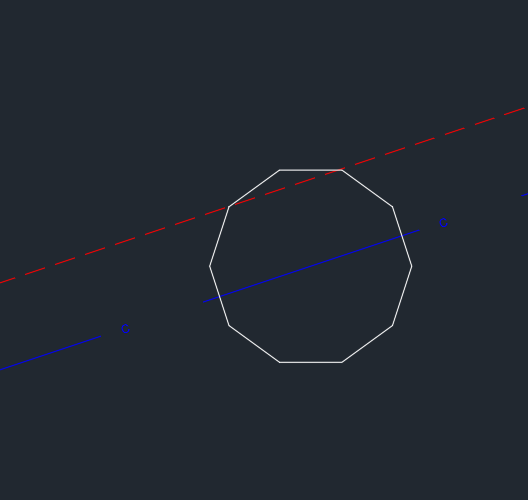

Just an idea not code if you say draw a ploygon at say middle of a pline say 0.6 radius then use that with ssget "F" it will look for something at less that 0.5.






(command "polygon" 10 inst "I" 0.6)
(setq co-ord (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) (entget (entlast)))))
(setq ss3 (ssget "F" co-ord (list (cons 0 "LWPOLYLINE"))))



Share this post


Link to post
Share on other sites
amb2301
7 hours ago, BIGAL said:

then use that with ssget "F" it will look for something at less that 0.5.

Sir sorry for the late reply, there were some issues in my computer, so i cant able to check/reply you,

could you please provide some sample, so it will be easier for me to understand.



Sir , Actually  i have 1000's of instances like this in each dwg itself, so if am manually draw 0.6m circle in each pline, i will take more time.

so i m looking for a lisp to do this task. If possible please tell me Sir.



Share this post


Link to post
Share on other sites
devitg
8 hours ago, amb2301 said:

Sir , Actually  i have 1000's of instances like this in each dwg itself, so if am manually draw 0.6m circle in each pline, i will take more time.

so i m looking for a lisp to do this task. If possible please tell me Sir.



 Would you pick as you guess it is near 0.5 m or want to check along the PLINE , at a given distance ,  and mark where it happen the OFFSET is > 0.5 ?

Share this post


Link to post
Share on other sites
amb2301
19 hours ago, devitg said:

Would you pick as you guess it is near 0.5 m or want to check along the PLINE , at a given distance ,  and mark where it happen the OFFSET is > 0.5 ?

Sir, thanks for looking on it,

Yes i want to check along wherever the pline with offset of below 0.5m.

Actually i need to do Quality checking of each drawings & mark the offset distance, which is below 0.5m.



Share this post


Link to post
Share on other sites
