Solid Square to round transisiton.

[the hat]

Can any one help me Im a trying to solid model a square to round transition.

Cant figure it out.



Is it possible. if not a surface will have to do.

[Cad64]

A picture's worth a thousand words.



I think you probably need to FILLET between the square and round, but without seeing exactly what you're trying to do, it's hard to say for sure.



Also, update your profile so we know what version you're working with.

[fahim108]

Are you trying to LOFT a square cross-section with a circular one. Just guessing...

[the hat]

At the mo Acad 2000 but i have 2004 available if it helps.



Tried fillet ant it doesnt give desired result.



Think of it as a pyramid with a round top.

[Cad64]

Can you post the drawing, or a screenshot, so we can have a look?

[kduck63]

I don't know if acad 2000 has an interference command, but I know you can do a simple subtraction with it.

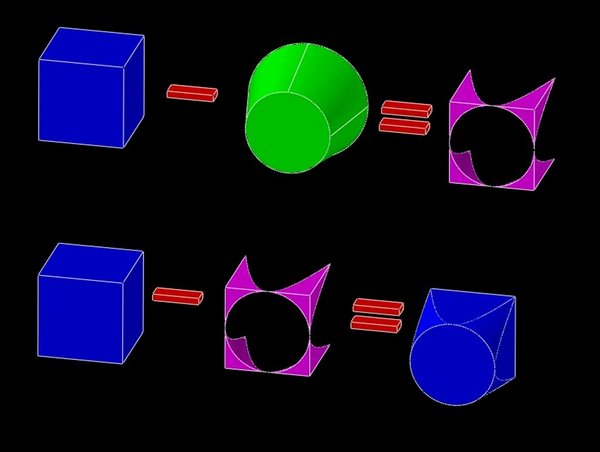

This is made with a regular cube and truncated cone.The cone has a base dia equal to the diagonal of the cubes side and a top dia equal to one side of the cube.

[pjb84]

I wonder if RULESURF would work...

[Pocket]

It would but then youd have surfaces mixed in with solids



Kduck has it

[fuccaro]

Years ago it was a lisp routine posted somewhere here...

***editing***

I am unable to find it. This is the best I can do: here is a reference to that old post just unfortunatly the link doesn't work any more :-(

http://www.cadtutor.net/forum/showthread.php?t=4684

Maybe with more patience as I have you will be able to find the source! Good luck!

[the hat]

kduck spot on thanks,



Why didnt I think of that.



Brill

[fuccaro]

just a small observation Kduck64:

If you put the cone and the cube in the right place you may INTERSECT the two solids and you have the result in one step.

[kduck63]

I don't know if that particular version of acad has the INTERSECT command, but I do know it has the ability to subtract solids.

[WagglyFawn]

It does indeed have the INTERSECT command.

[hazardman]

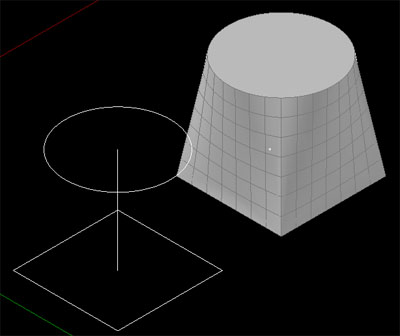

same as fahim108 i would have lofted the shape...here's a pic of the result...just note that i exploded the solid so you can see the rulled surface....

[jamesmgitau]

I have tried the loft and actually gives me a shape that does not resemcle what i want. I gain did loft with polygon (36 sides) and actually got exactly the shape i wanted. the more sides you use the better for the polygon (maximum 1024). you then can use shell command or substraction if you can have two solids the smaller ones being the internal dimensions.

[Tony Wood]

The reality is that what Autcad can produce in the intersect solid modelling command is not correct, it is a near representation but still not correct.

A true sqare to round will have a dead straight line from the corner of the square to the quadrant of the circle and back to the next square end corner.

Reality will not permit an arced or radiused edge near the circle end near the quadrant.

[Ronso]

Have you tried this?

http://www.cadtutor.net/forum/showthread.php?18924-3D-Evacuation&highlight=transition

[ReMark]

This thread dates back to 2007. If you are looking for something to do I can try to come up with something for you.

[Ronso]

Sure, come up with something.

[ReMark]

OK. How about a 3D weave pattern. It must be over/under from side to side and top to bottom. Two different colored ribbons. No sleight of hand; the ribbons must weave above and below each other. Attach a copy of the drawing when done. Will you be requiring an image?
