Raymond Carreon Posted December 15, 2020 Share Posted December 15, 2020 MicroStation: I need help in making a PDF that will allow the printer to make the line thicknesses you need or use. The problem is: I use one of the original software editions...MicroStation 95. I know your probably laughing< I know I would be. But it's what I started with it's what I stayed with. I don't do it as a living. I've tried to working with the "Pint" setting but I can't make it to work. I the newer software's also us Pins so I;m sure the tools are the same. I just never have a need to use it. The print shop in my area, would print my work to the correct lines weights based on the colors I used. They changed computers and printing matchines and they no nonger can do it using the line color method. If you think you can help, PLEASE contact me as I am at the end of my rode. Thank you; Raymond xxx-xxx-xxxx carreonarchitecture<at>gmail<dot>com Quote Link to comment Share on other sites More sharing options...
f700es Posted December 15, 2020 Share Posted December 15, 2020 Hi Ray, I edited your post to remove your phone number and edited your email as to slow down spammers. Can you post the dgn file here for us to play with? Sean Quote Link to comment Share on other sites More sharing options...
Raymond Carreon Posted December 16, 2020 Author Share Posted December 16, 2020 Hi Sean; Thank you. First time on a site like this. I am a retired CTE instructor. Hope you can open this drawing dgn file. I appreciate whatever or however you can help me. Thanks; Raymond Carreon polanski.dgn Quote Link to comment Share on other sites More sharing options...
f700es Posted December 17, 2020 Share Posted December 17, 2020 Hi Ray, I can open it with AutoCAD 2021, no issue there, but I don't know what layers you want thicker or what colors you want thicker when printing. Nice drawing btw I'm going to take a stab at it but what size paper do you want the PDF? Sean Quote Link to comment Share on other sites More sharing options...
f700es Posted December 17, 2020 Share Posted December 17, 2020 Have you ever thought about moving to a free or inexpensive DWG editor? NanoCAD might be worth a look sir. It's a free AutoCAD LT clone that's not too bad.https://nanocad.com/products/nanoCAD/ Quote Link to comment Share on other sites More sharing options...
f700es Posted December 17, 2020 Share Posted December 17, 2020 Try this.....Ray sheet 1.pdf 1 Quote Link to comment Share on other sites More sharing options...
Raymond Carreon Posted December 17, 2020 Author Share Posted December 17, 2020 Sean; What I need to be able to do, is make PDF's that printout with different line weights. i blueprint printed out have have different lines weights. I know I have to set up PEN weights but I just can make it work. Raymond Quote Link to comment Share on other sites More sharing options...
f700es Posted December 17, 2020 Share Posted December 17, 2020 Well, I can't help you in uStation 95 as I don't have it but we can help you in an AutoCAD clone. Your file had some issues but I bet that was caused by the dgn to dwg translation Did you look at the PDF I made? Sean Quote Link to comment Share on other sites More sharing options...
Dadgad Posted December 17, 2020 Share Posted December 17, 2020 I looked at the PDF, and like the original drawing, as you mentioned, it looks good to me! Quote Link to comment Share on other sites More sharing options...
Raymond Carreon Posted December 17, 2020 Author Share Posted December 17, 2020 Sean, I opened the PDF u sent me of my drawing. It's exactly what I want to do. It's a PDF and it shows the different lines weights. I'm sure the process to create a PDF that maintains it's line weight is different from AutoCad and MicroStation. Is there a MicroStation person that might be able to help? Thanks Rayomd Quote Link to comment Share on other sites More sharing options...

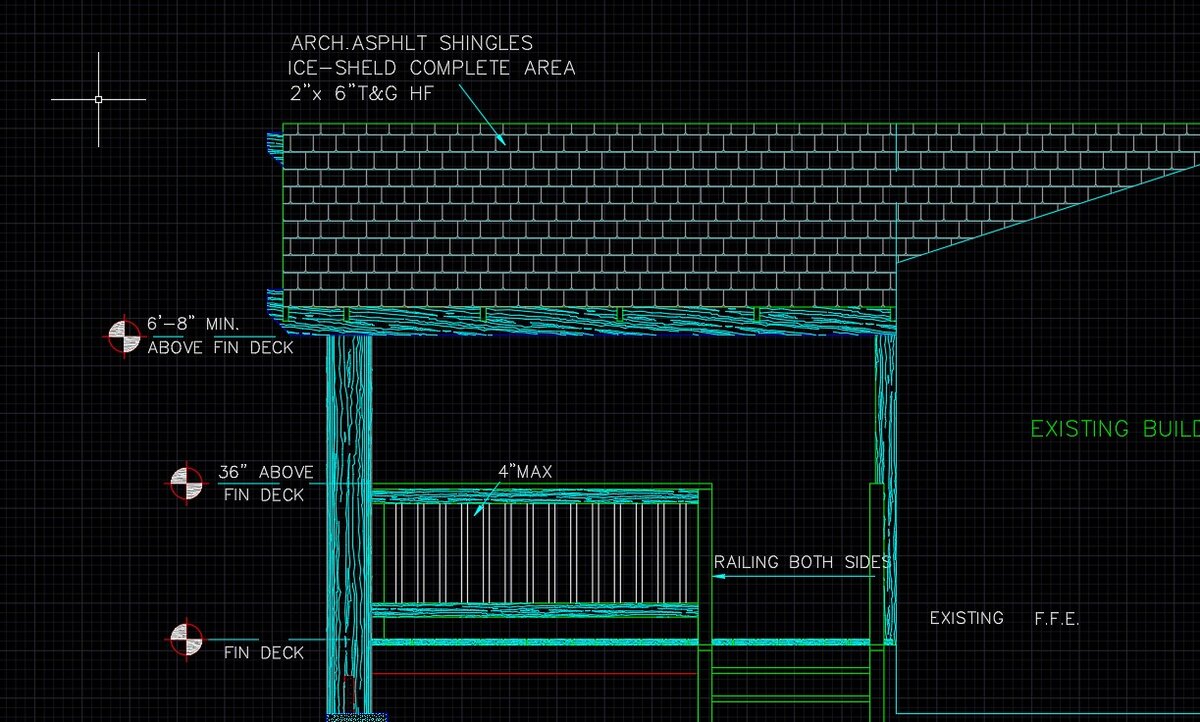

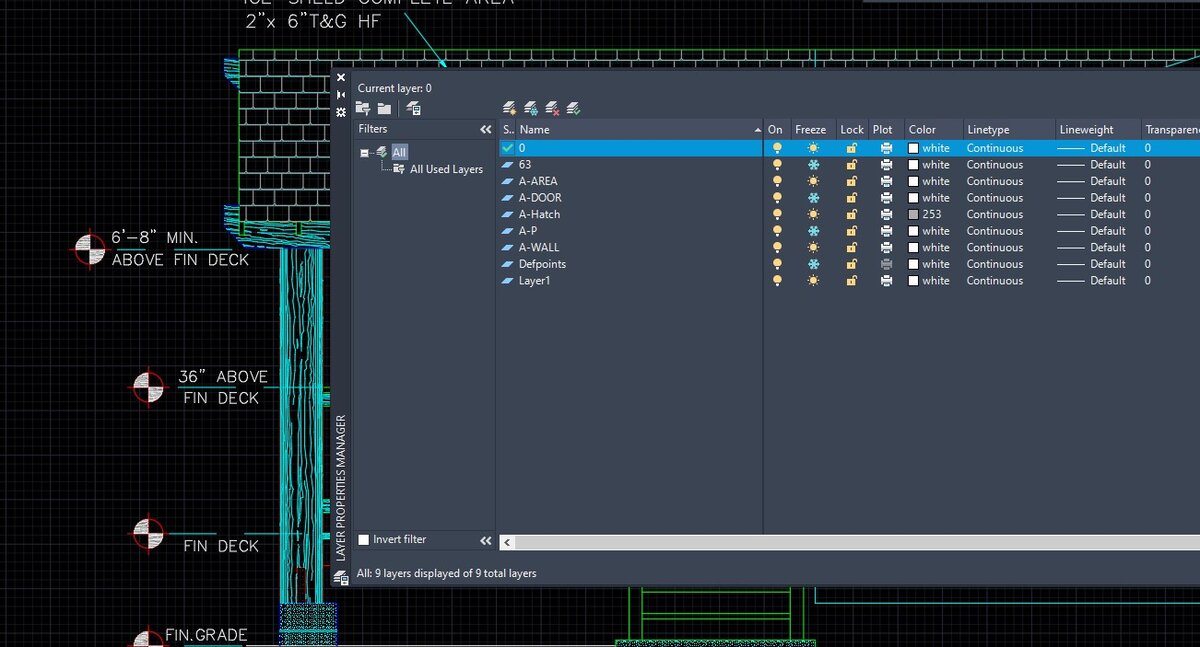

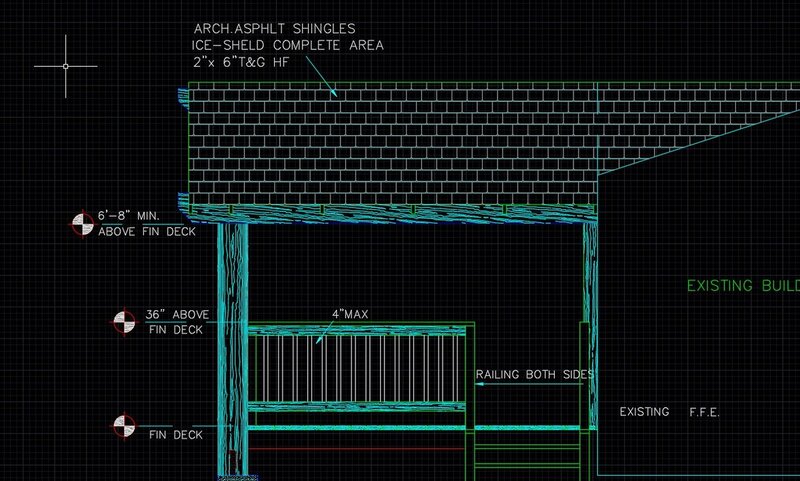

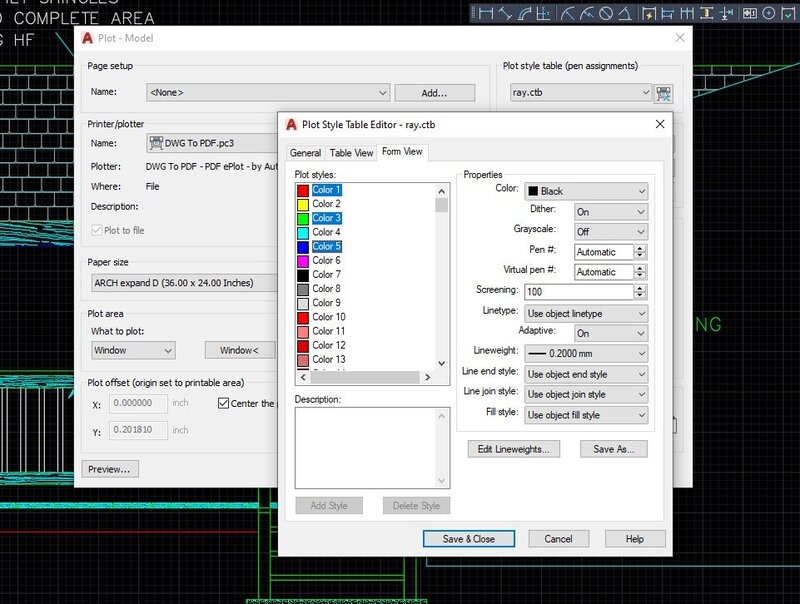

f700es Posted December 17, 2020 Share Posted December 17, 2020 Ray here is what I did in AutoCAD so maybe there is a way to duplicate in Microstation; When I opened up your drawing I saw that most of what I would consider "bold lines" were colored Blue, Green and Red. While the drawing had layers (levels in microstation?) these were all set to white so I couldn't set a width by color there. So went into my plot settings and set up a Plot Style Table to print all colors at .05mm and Red, Green and Blue to print at .2mm. I printed to a PDF this way and got the desired look that I think you where after. Do a Google search on plotting by color in Microstation 95. I would bet that there is a way to do it. I hope this helps sir. Sean Quote Link to comment Share on other sites More sharing options...
Raymond Carreon Posted December 17, 2020 Author Share Posted December 17, 2020 Thank you. I will try it. Raymond Quote Link to comment Share on other sites More sharing options...
f700es Posted December 17, 2020 Share Posted December 17, 2020 Good luck Ray, I'm sorry that I don't have the software to help further Quote Link to comment Share on other sites More sharing options...
BIGAL Posted December 17, 2020 Share Posted December 17, 2020 I'm sure the process to create a PDF that maintains it's line weight is different from AutoCad and MicroStation. Did you google printing line weights Microstation it should have help available. I found something in about 10 seconds, so should you. I have not posted page link on purpose you should look for yourself first. "It's correct, in MicroStation line weights are identified by their numbers (0 - 31) and when displayed, the weights are independent from zoom level, so they can be treated as "virtual". How the weights are displayed can be configured in User Preferences dialog. How the weights are printed is separated from how they are displayed. In fact there are more ways how to define "paper line weight". In my opinion the simpliest is to use Weight Mapping in printer configuration file" Quote Link to comment Share on other sites More sharing options...
