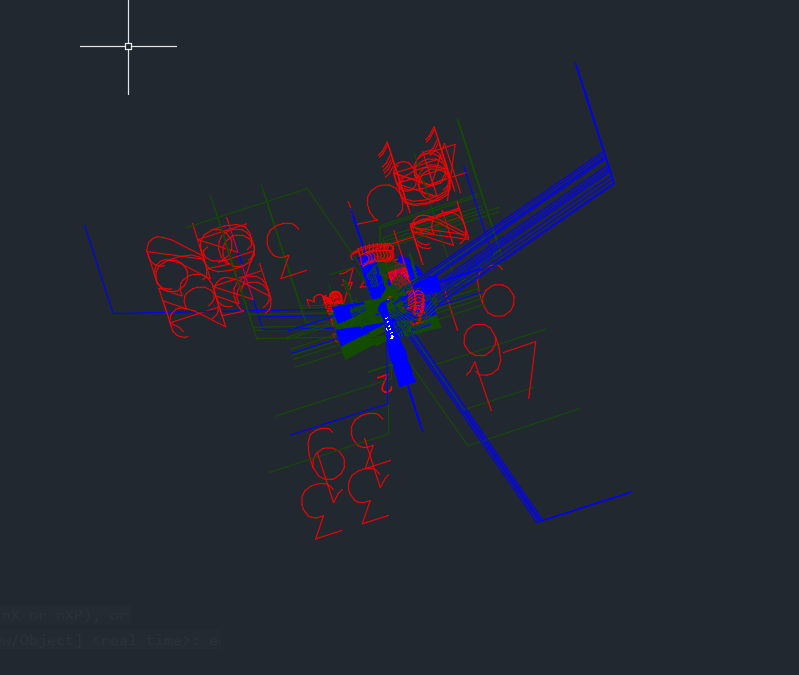

Mhussein Posted December 20, 2020 Share Posted December 20, 2020 Hi All, When I converted a drawing from mm to m using the scale command, the dimensions do not convert. See the image below. How can I also convert the dimensions to m ? Quote Link to comment Share on other sites More sharing options...
eldon Posted December 20, 2020 Share Posted December 20, 2020 You should re-format the dimension style. Go into the Fit page - Scale for dimension features, and divide the existing figure by 1000 to get all the arrows and text to reasonable size. To turn it into metres, go to the Primary Units page, and enter a Scale factor of 0.001 1 Quote Link to comment Share on other sites More sharing options...

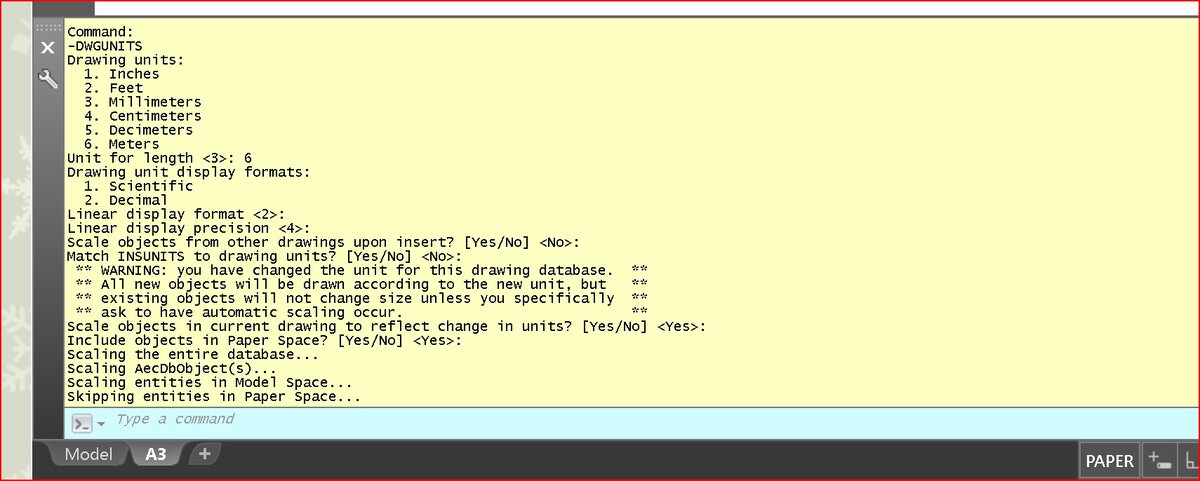

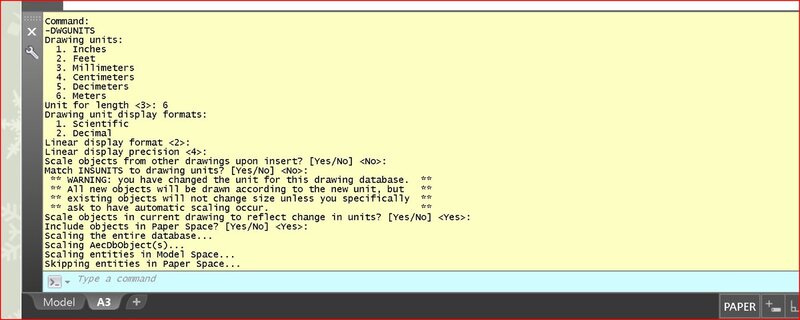

Dadgad Posted December 21, 2020 Share Posted December 21, 2020 Welcome to CADTutor Mhussein. It looks like eldon has already got you sorted out. For future reference you might want to familiarize yourself with the -dwgunits command, the hyphen is part of the command, and important. I would suggest that you increase the commandline history display to about 8 or 10 rows, practice on a copy of your drawing to be safe, go slowly and read the commandline prompts carefully. Quote Link to comment Share on other sites More sharing options...
Mhussein Posted December 24, 2020 Author Share Posted December 24, 2020 Thank you for your comments eldon and Dadgad. Quote Link to comment Share on other sites More sharing options...
