Hatch grips do not attract the point of the line

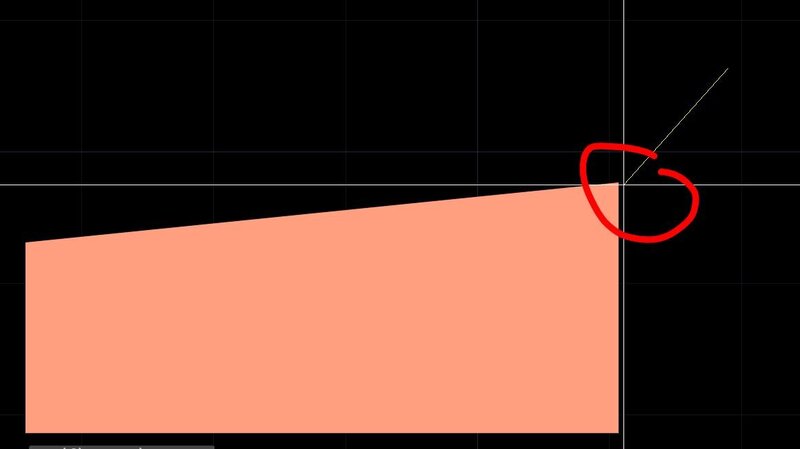

Recommended Posts

Giovannino60

1) I drew a particular shape
2) inside I drew a hatch
3) I accidentally deleted all lines of the particular shape
4) how should I proceed to perfectly draw the hatch boundaries since the hatch grips do not attract the lines?
Thank you


Edited by Giovannino60

Share this post


Link to post
Share on other sites
SLW210

Right-Click the Hatch, then select Generate Boundary. Or Hatch Edit, then select Recreate Boundary button.

  • Like 1

Share this post


Link to post
Share on other sites
steven-g

Or start typing the command 'hatchgenerateboundary' and then select the hatch object

  • Like 1

Share this post


Link to post
Share on other sites
Dadgad

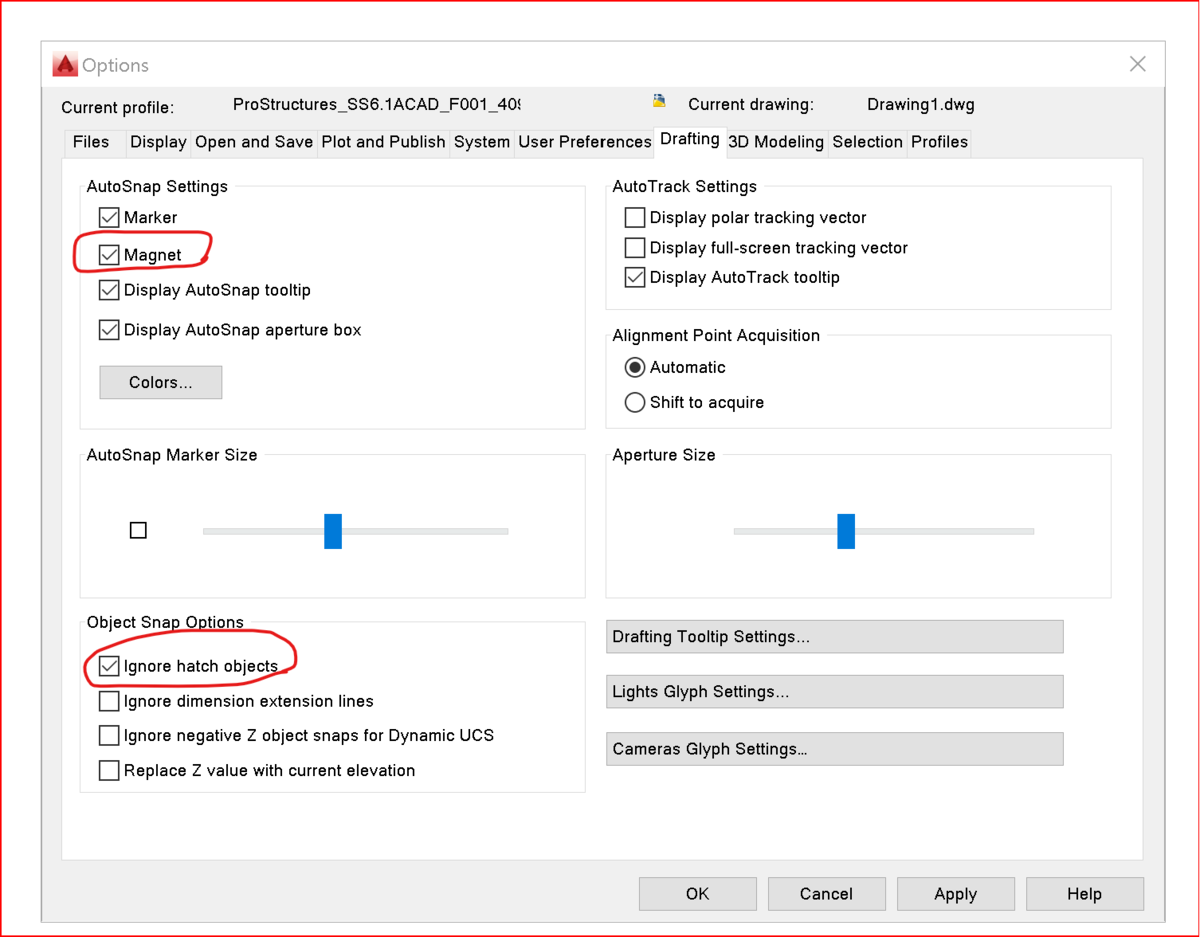

Or go into your OPTIONS and TURN ON  your MAGNET

and UNCHECK IGNORE HATCH OBJECTS on the DRAFTING tab.

Remember to click on OK after you do it.

Probably a good idea to edit your default HATCH setting to create ASSOCIATIVE HATCHES too, for the next time.

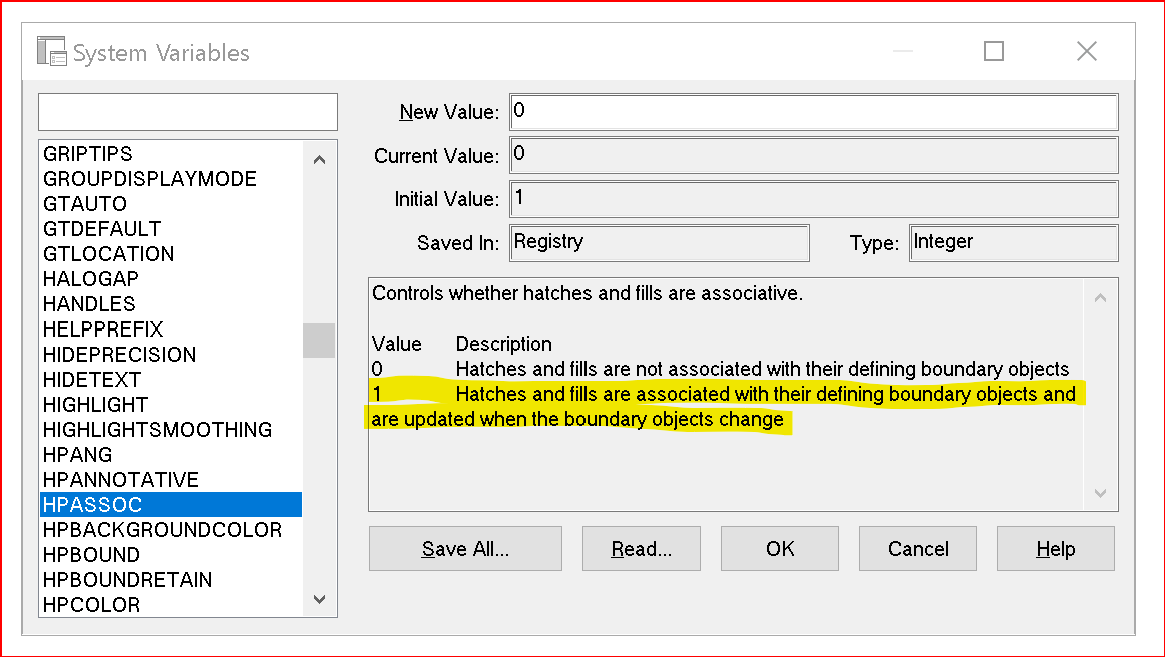

RESET your HPASSOCIATIVE system variable setting value to   1.   :beer:

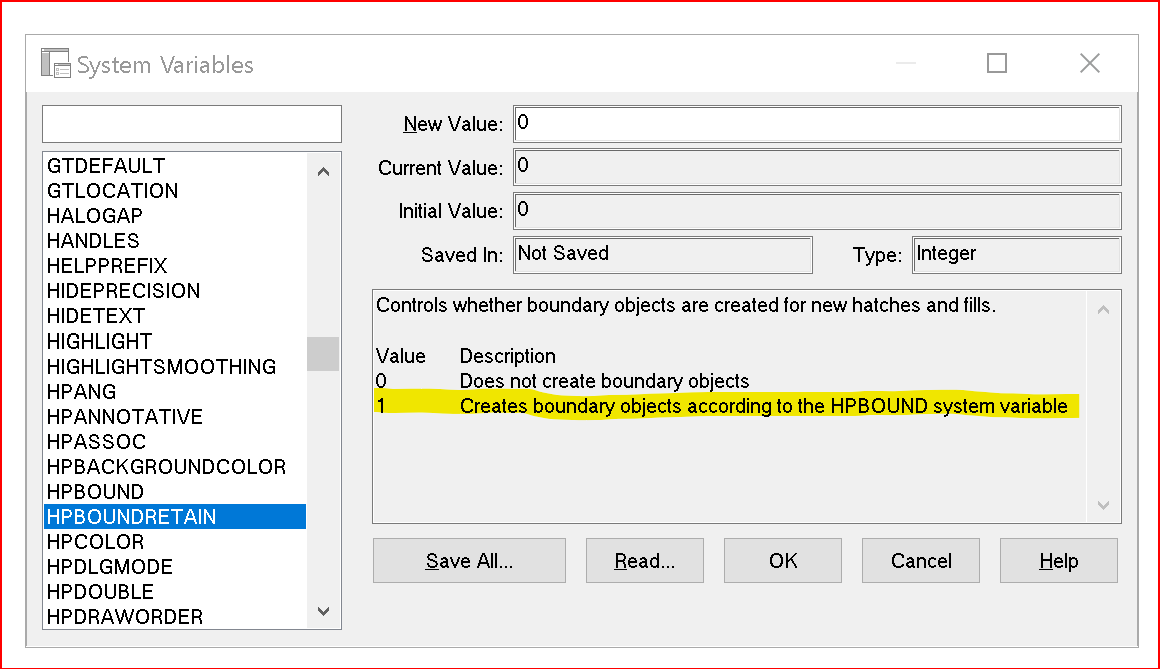

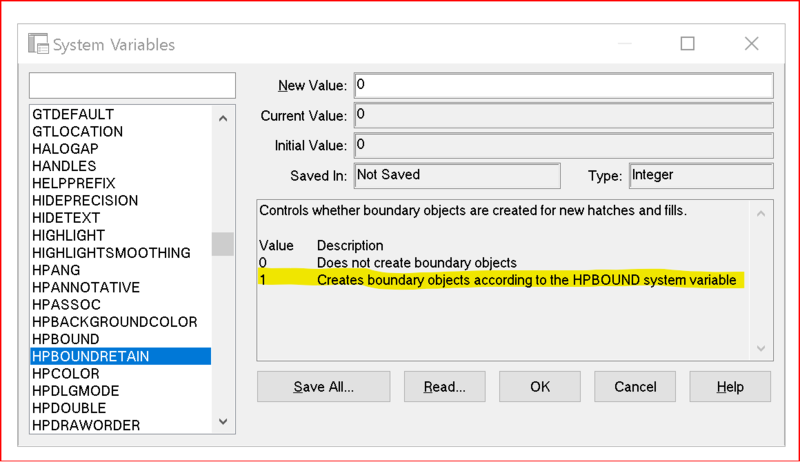

Another variable to tweak would be HPBOUNDRETAIN, you should set it to  1, not the default  0.




Edited by Dadgad
Another variable added
