JoeS09 Posted March 29, 2021 Share Posted March 29, 2021 (edited) Hello, I have traced two curves using spline, as shown in the attached. The curved lines seem to be continuous and do not appear to be able to be split into different lengths. For example, I was not happy with the curvature of the top half of left hand curve, so I want to replace it by offsetting the top half of the right curve curve, but cannot do this. I was then going to rotate the replacement curve from the top to joint up with the 33,5mm width on the left curve. The other problem is that the curve lines do not seem to intersect when crossed by a straight line. As a result I cannot seem to trim any of the curved lines or the straight line. These two problems are shown clearly on the drawings attached Hoping someone can show me where I am going wrong Spline test.pdf Spline test.dxf Edited March 29, 2021 by JoeS09 Quote Link to comment Share on other sites More sharing options...
Dadgad Posted March 29, 2021 Share Posted March 29, 2021 I am unable to open your .dxf . You may want to try grip stretching your spline with a crossing window selection. Quote Link to comment Share on other sites More sharing options...
JoeS09 Posted March 29, 2021 Author Share Posted March 29, 2021 (edited) Thanks Dadgad. I downloaded and opened OK on my AutoCAD 2018. Quote try grip stretching your spline with a crossing window selection. I'm sorry, but I don't know what that means Edited March 29, 2021 by JoeS09 Quote Link to comment Share on other sites More sharing options...

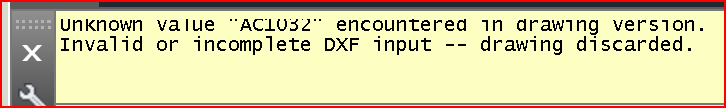

Dadgad Posted March 29, 2021 Share Posted March 29, 2021 (edited) I am using Autocad 2016, perhaps if you saved it as 2013? This is the message I get. You might try adding some more points to the spline as you create it, which makes it easier to reshape after the fact with the STRETCH command, by selecting the appropriate grips with a crossing selection window. Edited March 29, 2021 by Dadgad screenshot added Quote Link to comment Share on other sites More sharing options...
SLW210 Posted March 29, 2021 Share Posted March 29, 2021 Do you need them to be SPLINES? If not, use PEdit to convert to Plines. I can trim and offset the SPLINES just fine. Quote Link to comment Share on other sites More sharing options...
JoeS09 Posted March 29, 2021 Author Share Posted March 29, 2021 (edited) Thanks for this response, SLW210. I don't know what I did wrong, but I can now trim the lines shown on the dxf file. Sorry about that. ************************************************ PS Edit. I have gone back into the drawing, entered the command TR /Enter, and find that I cannot trim any lines. If I first select the straight line, then select Trim /Enter, then I can trim the curved lines. What is the correct process please? ******************************************* I chose splines as a way to trace a picture that I imported into AutoCAD 2018. It is the only way I know, so I am open to suggestions. I wanted the curves to be as smooth as possible as the work was going to be fed to a CNC machine, and I certainly didn't want any faceted curves which I am told by CNC guys that polylines can produce. Can you please tell me how you were able to offset the top part of the right hand curve? It is one continuous line of splines on the drawing Edited March 29, 2021 by JoeS09 Correction Quote Link to comment Share on other sites More sharing options...

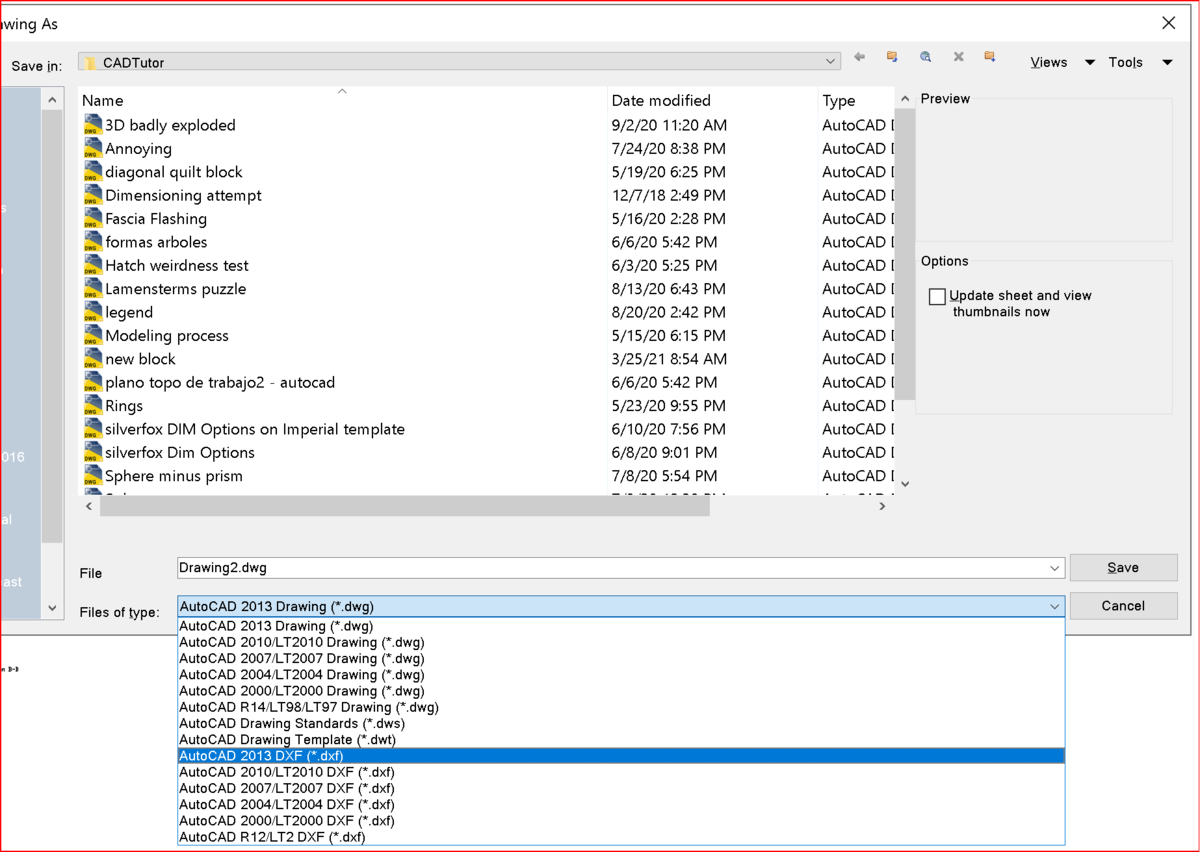

JoeS09 Posted March 29, 2021 Author Share Posted March 29, 2021 hi Dadgad, I have saved the dxf file in 2013 format, please see attached Spline test_2013.dxf Quote Link to comment Share on other sites More sharing options...
SLW210 Posted March 29, 2021 Share Posted March 29, 2021 What type of machine? All I have worked with convert Splines to lines and arcs in the end. Nothing special TR (TRIM), O (OFFSET) SLW Spline test.dwg Quote Link to comment Share on other sites More sharing options...
SLW210 Posted March 29, 2021 Share Posted March 29, 2021 9 hours ago, Dadgad said: I am using Autocad 2016, perhaps if you saved it as 2013? This is the message I get. You can use the latest DWG TrueView to open it and convert. Quote Link to comment Share on other sites More sharing options...
eldon Posted March 29, 2021 Share Posted March 29, 2021 47 minutes ago, SLW210 said: You can use the latest DWG TrueView to open it and convert. I can open a DXF with DWG TrueView, but how do you then convert a DXF? My version only will convert DWG files. Quote Link to comment Share on other sites More sharing options...
Dana W Posted March 29, 2021 Share Posted March 29, 2021 (edited) made a mistake, ignore my post. Edited March 29, 2021 by Dana W Quote Link to comment Share on other sites More sharing options...
SLW210 Posted March 29, 2021 Share Posted March 29, 2021 3 hours ago, eldon said: I can open a DXF with DWG TrueView, but how do you then convert a DXF? My version only will convert DWG files. I was referring to my .dwg, I forgot to save it down. I converted to 2000 version. SLW Spline test-2000.dwg Quote Link to comment Share on other sites More sharing options...
