How do I draw and arc length of 24 at a radious of 32.87?

[muck]

How do I draw and arc length of 24 at a radious of 32.87?



Thank you,

[BIGAL]

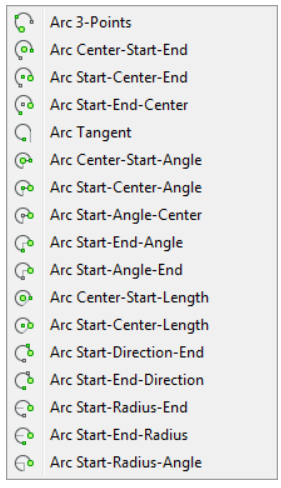

Just look at Help this is from Bricscad the option you want is there.







[paulmcz]

Draw a horizontal line 32.87 units long or longer.
Copy the line on itself.
Rotate one of the line by result of 24*360/2/pi/32.87 (= 41.83446°), with left endpoint as a base point of rotation.
Draw circle with center at left endpoint of horizontal line, radius 32.87.
Trim off larger portion of the circle by the two lines.
Erase the two lines and check the arc properties

[BIGAL]

paulmcz why when its a arc function ?

[paulmcz]

Just for fun

[eldon]

For me it would be quicker to draw the circle with radius 32.87, break the circle and then use Lengthen to get to the arc length of 24.

[Electronico]

One could draw an arc with End and Radius options. Like so:

Command: a ARC
Arc creation direction: Counter-clockwise (hold Ctrl to switch direction).
Specify start point of arc or [Center]:
Specify second point of arc or [Center/End]: e
Specify end point of arc:
Specify center point of arc or [Angle/Direction/Radius]: r Specify radius of arc: 32.87

Then use LENGTHEN command as noted above. Like so:

Command: leg
LENGTHEN
Select an object or [DElta/Percent/Total/DYnamic]: t
Specify total length or [Angle] <1.000)>: 24

Select an object to change or [Undo]:



[devitg]

My hard way to do it

;;;;;;;;*//*/*/*/*/*/*/*/*/*/*/*/*/**/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/
;; Design by Gabo CALOS DE VIT from CORDOBA ARGENTINA
;;;    Copyleft 1995-2022 by Gabriel Calos De Vit ; DEVITG@GMAIL.COM
;;

 ; Hecho por  Gabo CALOS DE VIT de CORDOBA ARGENTINA
;;;    Copyleft 1995-2022 por Gabriel Calos De Vit
;; DEVITG@GMAIL.COM
;initian
;;; inicio-defun
;;************************************************************
;;*************************************************************
;;*//*/*/*/*/*/*/*/*/*/*/*/*/**/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/*/
;;************************************************************
(defun int-vl (/
ACAD-OBJ ADOC MODEL
              )
(SETQ ACAD-OBJ (VLAX-GET-ACAD-OBJECT)) ;_ el programa ACAD
(SETQ ADOC (VLA-GET-ACTIVEDOCUMENT ACAD-OBJ)) ;_ el DWG que esta abierto-
(SETQ MODEL (VLA-GET-MODELSPACE ADOC))
(VL-LOAD-COM)
)






;;************************************************************



(DEFUN ARC-RAD-LENGHT  (/
                        ANG-MID
                        ANG1
                        ANG2
                        ARC-
                        ARC-ANG-DIM
                        ARC-ANGLE
                        ARC-CENTER
                        ARC-LENGTH
                        ARC-MID-PT
                        ARC-RAD
                        ARC-RAD-DIM
                        CONV
                        DIM-ARC-LENGTH
                        ENDPOINT
                        OSMODE
                        STARTPOINT
                        )

  (INT-VL)

  (SETQ OSMODE (GETVAR 'OSMODE))
  (SETVAR 'OSMODE 312) ;osnap to NEArest
  (SETQ ARC-CENTER (GETPOINT "\n Click at acr Center"))
 ; (SETQ ARC-CENTER '(0 0 0))
  (SETQ ARC-RAD 32.87)
  (SETQ ARC-LENGTH 24)
  (SETQ CONV (/ 180 PI)) ; 1 radian
  (SETQ ARC-ANGLE (/ ARC-LENGTH ARC-RAD))
  (SETQ ANG1 (* PI 0.5))
  (SETQ ANG2 (+ ANG1 ARC-ANGLE))
  (SETQ ANG-MID (+ ANG1 (/ (- ANG2 ANG1) 2)))
  (SETQ ARC- (VLA-ADDARC MODEL (VLAX-3D-POINT ARC-CENTER) ARC-RAD ANG1 (+ ANG1 ARC-ANGLE)))
  (SETQ STARTPOINT (VLA-GET-STARTPOINT ARC-))
  (SETQ ENDPOINT (VLA-GET-ENDPOINT ARC-))
  (SETQ ARC-MID-PT (VLAX-3D-POINT (VLAX-CURVE-GETPOINTATPARAM ARC- ANG-MID)))
  (SETQ DIM-ARC-LENGTH (VLA-ADDDIMARC MODEL (VLAX-3D-POINT ARC-CENTER) STARTPOINT ENDPOINT ARC-MID-PT))
  (SETQ ARC-RAD-DIM (VLA-ADDDIMRADIAL MODEL (VLAX-3D-POINT ARC-CENTER) ARC-MID-PT -2))
  (SETQ ARC-ANG-DIM (VLA-ADDDIM3POINTANGULAR
                      MODEL
                      (VLAX-3D-POINT ARC-CENTER)
                      STARTPOINT
                      ENDPOINT
                      (VLA-POLARPOINT (VLA-GET-UTILITY ADOC) ARC-MID-PT ANG-MID (/ ARC-RAD 5)))
        )
(VLA-PUT-TEXTPRECISION DIM-ARC-LENGTH ACDIMPRECISIONTWO)

  (VLA-PUT-TEXTPRECISION ARC-ANG-DIM ACDIMPRECISIONFOUR)

  (VLA-ZOOMEXTENTS ACAD-OBJ)
  (SETVAR 'OSMODE OSMODE)



  )








(DEFUN C:ARC-R-L  ()
  (ARC-RAD-LENGHT)
  )


;|«Visual LISP© Format Options»
(180 2 1 0 nil "end of " 100 20 2 2 nil nil T nil T)
;*** DO NOT add text below the comment! ***|;





arc by rad and arc lenght.lsp arc by rad and arc length.dwg

[paulmcz]

Easy quick lisp

(defun c:a12 (/ l r u ip)
  (setq l  24.0
	r  32.87
	ip (getpoint "\n Pick arc center point: ")
	u  (/ l r)
	)
  (entmake (list (cons 0 "ARC")
		 (cons 10 ip)
		 (cons 40 r)
		 (cons 50 0)
		 (cons 51 u)
		 ))
  (princ)
  )



Edited December 12, 2022 by paulmcz
Typo
