pbassred Posted August 5, 2007 Share Posted August 5, 2007 I want to create a 3D guitar body. a solid shape in 2D is no problem. However when you give it thickness there is another feature - a radius all the way round. How do you do that? Quote Link to comment Share on other sites More sharing options...
Pocket Posted August 6, 2007 Share Posted August 6, 2007 Your info says you have LT, which does not have 3D capabilities Both acoustic and electric cases are of similar form Complex silhouette and mostly flat front and back, this makes the job easier I would do a simple 2D drawing of the top, region and extrude it to the thickness Now, most guitars do not have a razors edge for the sides so use the fillet command to round them over slightly Additional tips: Boost your isolines for a smoother drawing Save often, older versions are ... stubborn Quote Link to comment Share on other sites More sharing options...
pbassred Posted August 7, 2007 Author Share Posted August 7, 2007 Thanks for the reply. I just updated my profile. I have 2002 now so It really is 3D. I just tried experimenting with a cube, exploded so that its individual lines. I put a radius on the edges, hoping that it might extrude right the way down. Unfortunatly the rad doesn't carry all the way along the edge so it just rounds off the corners a bit. The second problem (for later) is that not all guitars are a slab with a radius. There are more complex recesses. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted August 7, 2007 Share Posted August 7, 2007 Thanks for the reply. I just updated my profile. I have 2002 now so It really is 3D. I just tried experimenting with a cube, exploded so that its individual lines. I put a radius on the edges, hoping that it might extrude right the way down. Unfortunatly the rad doesn't carry all the way along the edge so it just rounds off the corners a bit. The second problem (for later) is that not all guitars are a slab with a radius. There are more complex recesses. No need to explode before you fillet a 3d object. You can use the edge chain option for sequential tangent edges. For the recesses use subtract once you have made and located them. Quote Link to comment Share on other sites More sharing options...
pbassred Posted August 7, 2007 Author Share Posted August 7, 2007 have a look at this. cube with rad.dwg Quote Link to comment Share on other sites More sharing options...
New2CADmike Posted August 7, 2007 Share Posted August 7, 2007 Like the green man said...don't explode your solid...you cant radius in the way you want...leave it solid and then radius the edges...now creating the shape that a guitar has on the back side,kind of rounded smooth shape...that is not easy to do,at least for me it isn't... Quote Link to comment Share on other sites More sharing options...

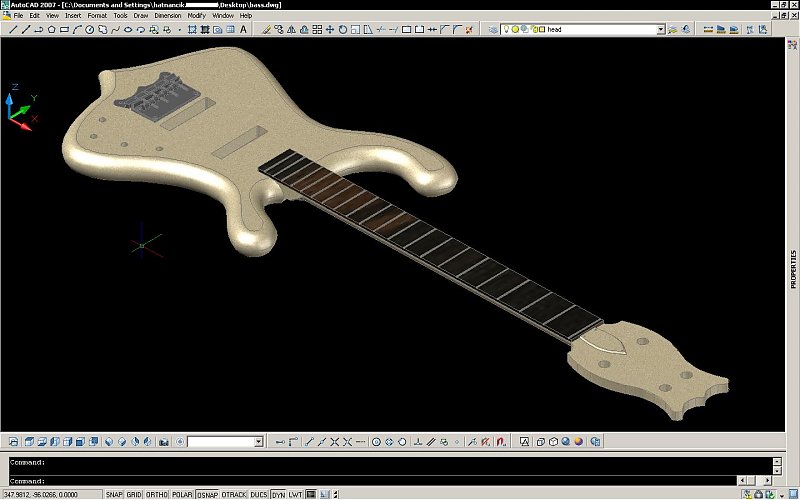

funkyman Posted November 19, 2008 Share Posted November 19, 2008 I used the fillet command to make a radius around the bass body Quote Link to comment Share on other sites More sharing options...
shift1313 Posted November 19, 2008 Share Posted November 19, 2008 i would draw the shape you want in 2d using arcs and lines(or poly line). then extrude that. if you use individual lines you will either need to use the region command or pedit>join command. once you have your block you can create other features to subtract from this. for instance most guitars dont have a purely flat face or back so you can create an arced body to subtract from your guitar. Quote Link to comment Share on other sites More sharing options...
jongor Posted June 9, 2009 Share Posted June 9, 2009 Reviving an old thread....I'm trying to do a guitar body too, but can't seen to get the Fillet command to work with the Chain option. How did you build your 3-d solid for the body before trying to fillet it? I drew the outline and extruded it. bass-body3.dwg Quote Link to comment Share on other sites More sharing options...
shift1313 Posted June 9, 2009 Share Posted June 9, 2009 the issue with your drawing is the way you created it. where is the start/end of your spline? Your solid will fillet if you enter a value of .125 or smaller for your radius. There is no need to Chain because you edge is 1 continous spline. The issue i think is where ever your start/end point is. Your best bet is to create your object with pline using lines/arc and fillet your corners to get the shape you want. Quote Link to comment Share on other sites More sharing options...

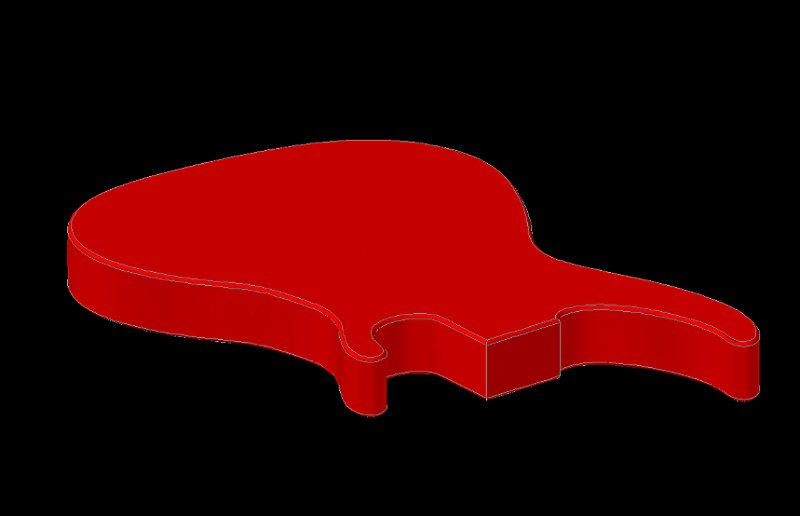

jongor Posted June 9, 2009 Share Posted June 9, 2009 Don't know....why would that matter? See attachment, that's how it should look, although it's not a continuous pline. bass-body3.dwg Quote Link to comment Share on other sites More sharing options...
fuccaro Posted June 9, 2009 Share Posted June 9, 2009 Jongor Just as a side note: for sure you have seen this thread, right? http://www.cadtutor.net/forum/showthread.php?t=9559 Quote Link to comment Share on other sites More sharing options...
funkyman Posted June 10, 2009 Share Posted June 10, 2009 1.I,ve drawed the splines of the body and join them to get closed object. 2.use the region command to create planar object. 3.extrude created region & specify the height of extrusion (in our case It's the thickness of guitar body) 4.use fillet command to create fillet around Quote Link to comment Share on other sites More sharing options...
jongor Posted June 10, 2009 Share Posted June 10, 2009 Tried this, same result, no fillet. When extruding a close object (like a region or polyline) there's no side to fillet to.... See attached dwg. 1.I,ve drawed the splines of the body and join them to get closed object.2.use the region command to create planar object. 3.extrude created region & specify the height of extrusion (in our case It's the thickness of guitar body) 4.use fillet command to create fillet around bass-body3.dwg Quote Link to comment Share on other sites More sharing options...
funkyman Posted June 10, 2009 Share Posted June 10, 2009 It's done.But i can't upload dwg file because attachments are limited to 250 kb.But i can send the dwg file by mail if you want. Quote Link to comment Share on other sites More sharing options...
jongor Posted June 10, 2009 Share Posted June 10, 2009 That's cool, but I'd like to know how to do it too. Can you explain? Email would be cool. Thanks! Quote Link to comment Share on other sites More sharing options...
funkyman Posted June 10, 2009 Share Posted June 10, 2009 ok.please give me your mail address Quote Link to comment Share on other sites More sharing options...
funkyman Posted June 10, 2009 Share Posted June 10, 2009 The way how to do it is the same as I described above but I used the fillet 0.1 mm Quote Link to comment Share on other sites More sharing options...
jongor Posted June 10, 2009 Share Posted June 10, 2009 I really don't want to post my email in an open forum like this...isn't there some way to send emails between members? Quote Link to comment Share on other sites More sharing options...
funkyman Posted June 10, 2009 Share Posted June 10, 2009 As shift 1313 said "Your solid will fillet if you enter a value of .125 or smaller for your radius" Quote Link to comment Share on other sites More sharing options...
