Need helps to create the 3D model


Gary
 Share

Recommended Posts

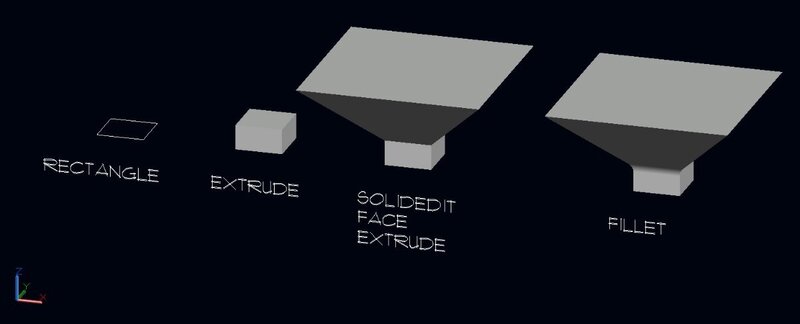

Here's another approach.



1. Start with a Rectangle

2. Extrude

3. Solidedit > Face > Extrude - Follow the command prompt to add a taper to the extrusion

4. Fillet




Link to comment
Share on other sites

So many different good ways to skin this cat, as proven by all these valid approaches.  :beer:

Personally I am rather partial to the INTERFERE or INTERSECT functionality as suggested by scj.

Just follow the command line prompts carefully, as once the INTERFERE object is determined, you will

not want to delete it.  :beard:
