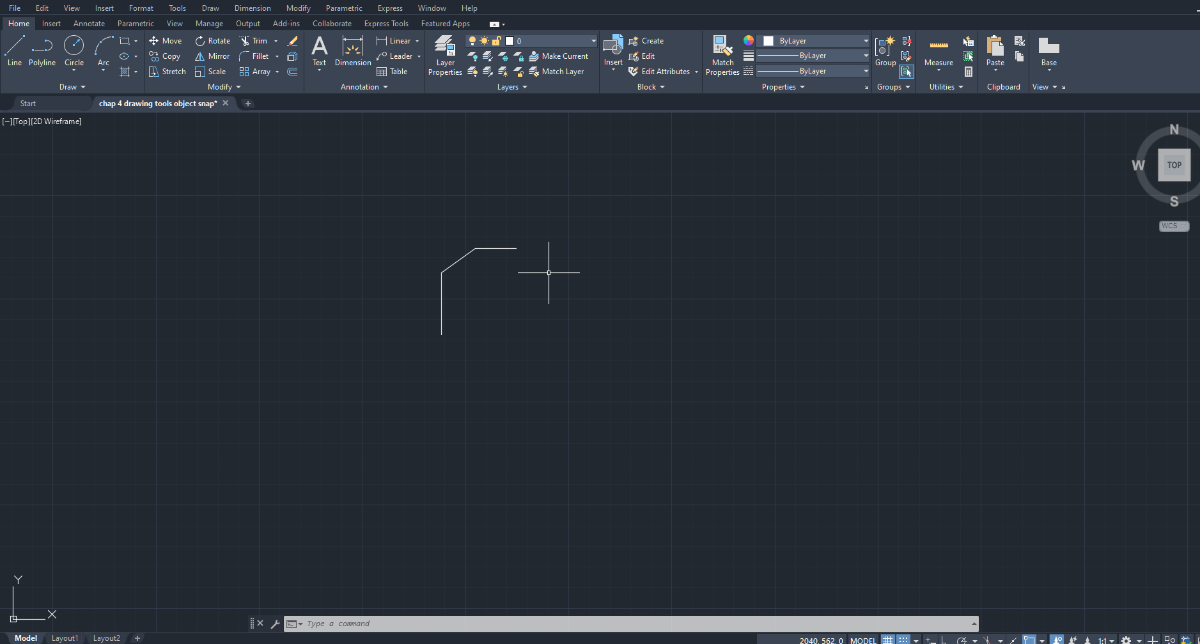

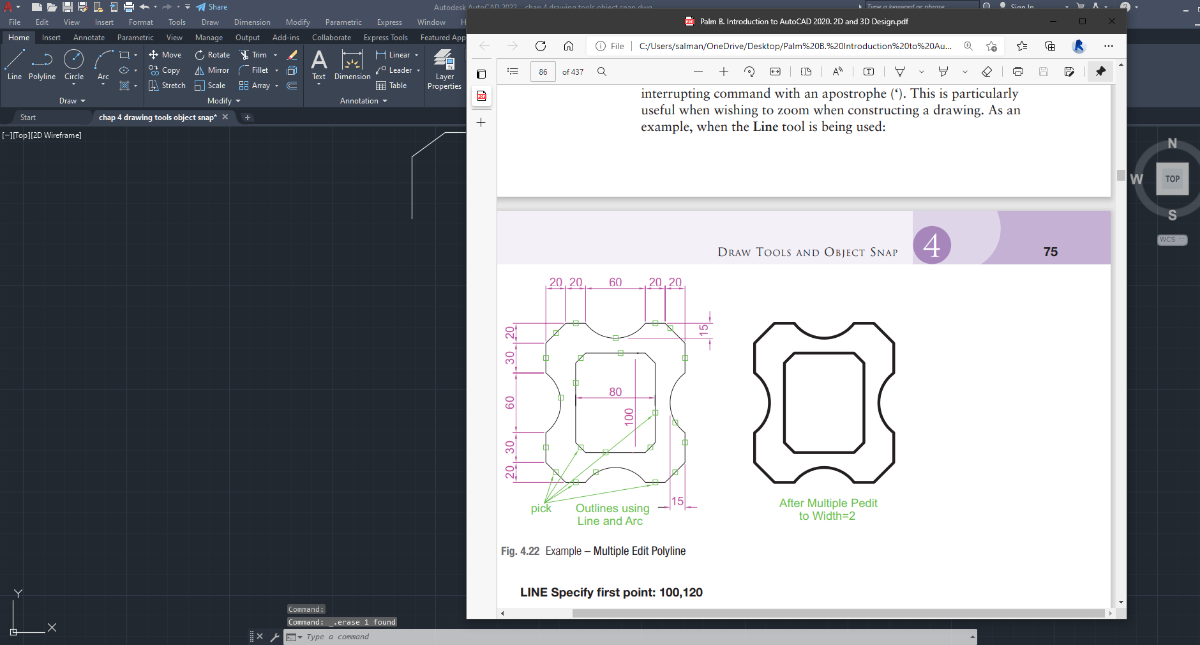

Drawing an arc at 60 photos attached

bruce lee

Recommended Posts

Unless you were given the radius of the arc I would recommend trying the 3 Point option under the ARC command.  Take a look at the attached image.  For my three points I drew, then selected the two ends of the green line at the top and the midpoint of the lower green line (offset 15 units from the top green line).  When done you can erase the two green lines.

3 Point Arc.PNG

Edited by ReMark
Link to comment
Share on other sites

Maybe a simple circle solution osnap MID, INT and Qaudrant rad1 30 rad2 15




The usual five different ways to do it a line ortho on drag enter 15.




#3 offset line 15 draw circ rad 30 osnap INT & MID

#4 ?????

Edited by BIGAL
