jim78b Posted May 27, 2022 Share Posted May 27, 2022 i have a big 3d dwg around 20mb , the flatshot command not work properly, as you see in the figure, there are a lot of missing lines!! Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 27, 2022 Share Posted May 27, 2022 What type of objects are they? Flatshot only works for 3D solids, surfaces, and meshes and projects them onto a plane parallel to the viewing plane. Quote Link to comment Share on other sites More sharing options...
ReMark Posted May 27, 2022 Share Posted May 27, 2022 Was the 3D drawing created using AutoCAD? Quote Link to comment Share on other sites More sharing options...
jim78b Posted May 27, 2022 Author Share Posted May 27, 2022 (edited) no meshes no surfaces! i don't know how the 3d solids was created. i can share this file? https://we.tl/t-a8sJpgHBS2 Edited May 27, 2022 by jim78b Quote Link to comment Share on other sites More sharing options...
ReMark Posted May 28, 2022 Share Posted May 28, 2022 Where/who did you get the drawing from? Quote Link to comment Share on other sites More sharing options...
jim78b Posted May 29, 2022 Author Share Posted May 29, 2022 Did you have try it?it come from my office ... Quote Link to comment Share on other sites More sharing options...
ReMark Posted May 29, 2022 Share Posted May 29, 2022 If it comes from your office, then I would contact the employee that created the drawing and ask them what they think. No, I did not try to open/view your drawing. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 31, 2022 Share Posted May 31, 2022 I can't do links like posted, you need to upload the drawing or a drawing that represents the objects you are trying to Flatshot. All you need to do for starters is right-click an object and select Properties and see what type of object. If the objects are not 3D Solids in Properties, then Flatshot will not work, which includes 3D Solids that are Blocks or Xreffed into the drawing. Quote Link to comment Share on other sites More sharing options...
jim78b Posted May 31, 2022 Author Share Posted May 31, 2022 I upload my drawing ..the file is too big so i used wetransfer Quote Link to comment Share on other sites More sharing options...

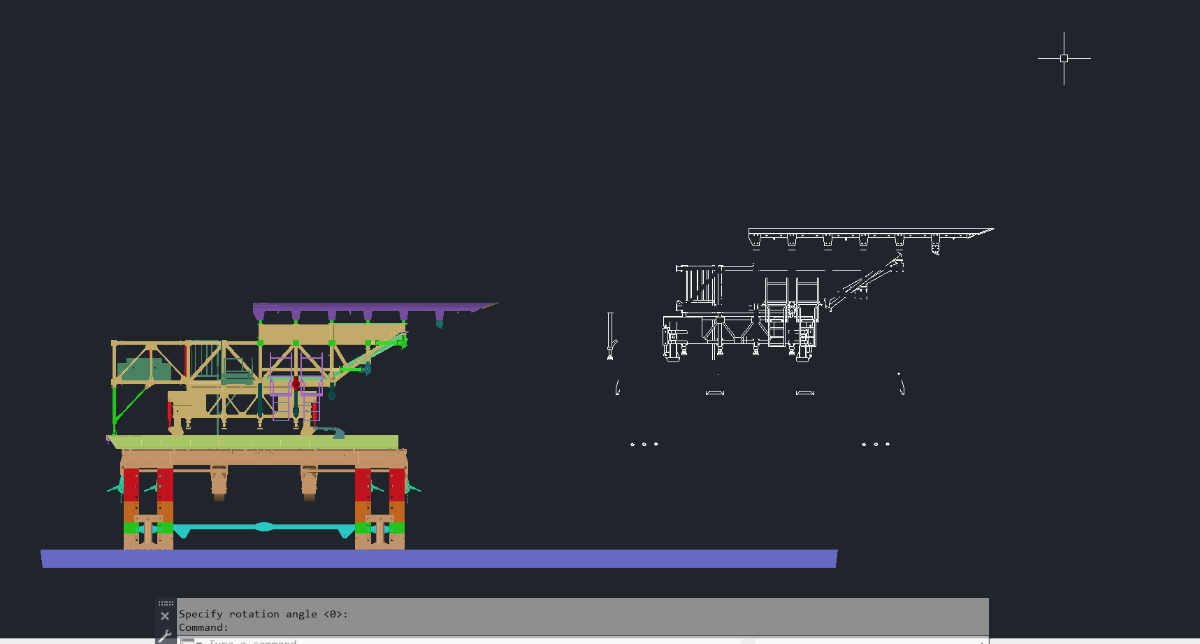

Cad64 Posted June 1, 2022 Share Posted June 1, 2022 I opened the file and exploded some of the blocks. In the image on the left, the grey parts are the blocks that I exploded. Then I ran Flatshot and got the image on the right. As I was exploding blocks I found that some blocks are inserted twice, so there are duplicates that are overlapping. The model needs to be cleaned, to remove all the duplicate overlapping blocks. As for exploding blocks, I only had to explode some of them to get Flatshot to work, so I'm not sure what the problem is. Maybe there are some bad blocks? A lot of the blocks that I exploded were mirrored. Maybe that's an issue? Maybe copy and rotate would be better than mirroring? You will have to experiment to find out what the root cause of the problem is. In the meantime, exploding the blocks seems to work. 2 Quote Link to comment Share on other sites More sharing options...
jim78b Posted June 1, 2022 Author Share Posted June 1, 2022 THANKS for tested my dwg so i need every time explode blocks right? Quote Link to comment Share on other sites More sharing options...
Cad64 Posted June 1, 2022 Share Posted June 1, 2022 20 minutes ago, jim78b said: THANKS for tested my dwg so i need every time explode blocks right? Well, as I mentioned, I only exploded some of the blocks and then Flatshot worked. So I don't know what the real problem is. All I know is that exploding some of them made Flatshot work. So yes, you can explode all the blocks if you want, and that will definitely work, but there are also many parts of the model that are not blocks, so you want to be careful about what you explode. You don't want to explode the 3D Solids. You just want to explode the blocks. Quote Link to comment Share on other sites More sharing options...
jim78b Posted June 2, 2022 Author Share Posted June 2, 2022 Thanks very much Quote Link to comment Share on other sites More sharing options...
