National CAD Standards


Recommended Posts

I need a quick course on this for a position I am applying for.

I typically don't like to cut corners specially when it comes to standards, but time is super sensitive.

Are there any articles, blogs, etc. that will provide a quick and concise understanding?


Link to comment
Share on other sites

No shortage of links to browse...




Which I guess is the PROBLEM.






This YouTube video is almost an hour long, looks like the place to start to me.




Good luck with it.   :thumbsup:


Edited by Dadgad

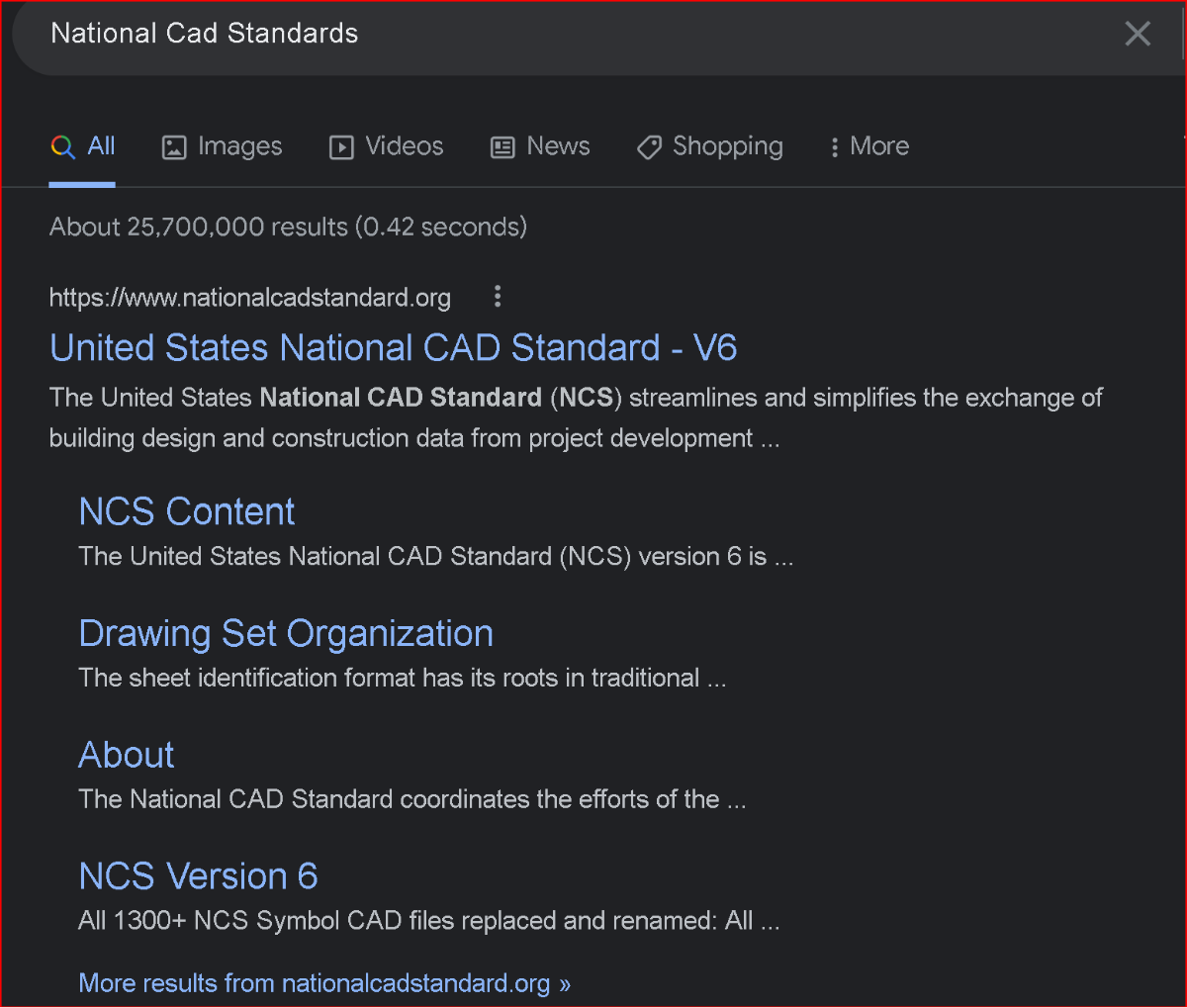

screenshots added
  • Like 1
Link to comment
Share on other sites

Most information for previous versions are available for free and Civil 3D template drawings include them.

https://www.nationalcadstandard.org/ncs5/content.php click on guidelines under AIA CAD LAYER GUIDELINES

and explore the other links like guidelines under PLOTTING GUIDELINES for lineweights.


Should be helpful as a quick course on this for the position you're applying for.
