Crossing / Broken contour lines - How to fix them?

[3dwannab]

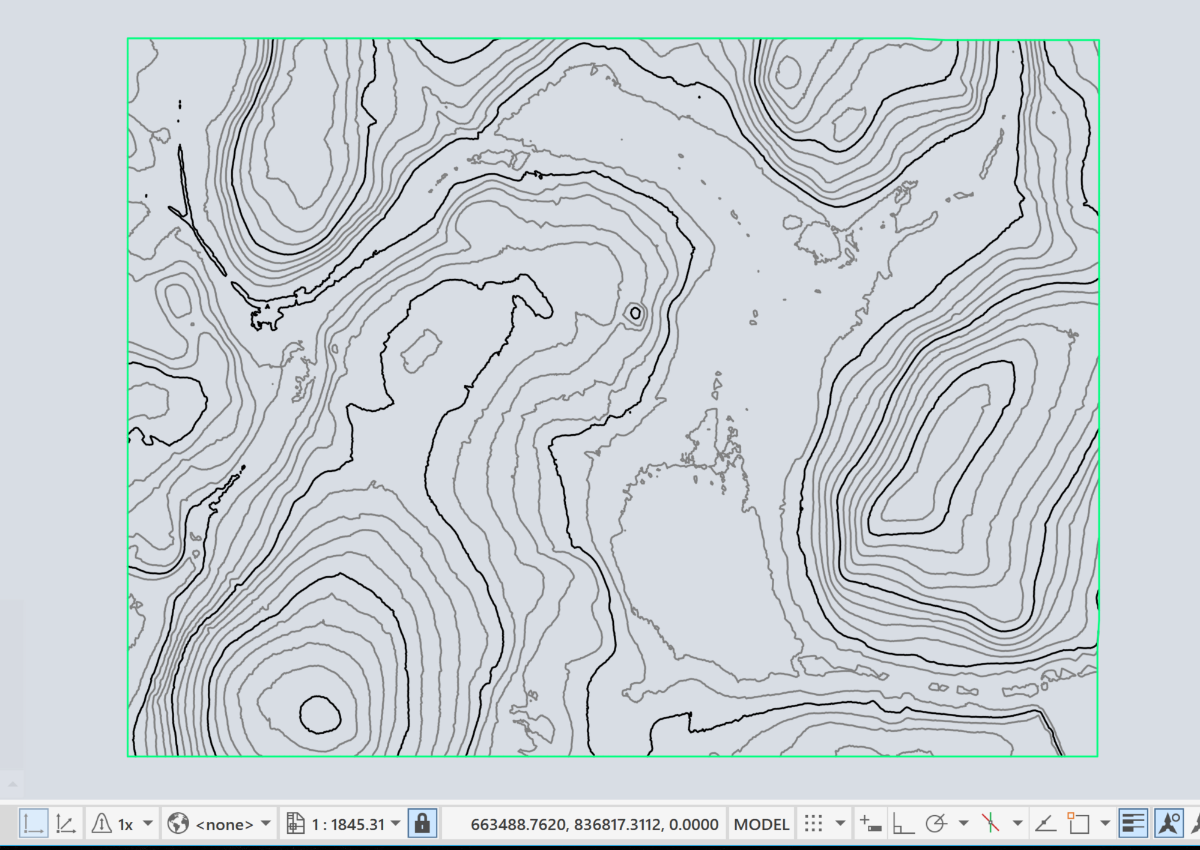

Please find attached the csv and a screenshot to illustrate my issue (The .dwg file is too large to attach). As you can see in the screenshot when I ctrl + click the contour it's not one continuous one and is broken. And there are lots of contours crossing over each other.



How can I clean this sort of thing up for the entire lidar survey?



The lidar data can be imported in the surface via Definition>Point files as XYZ_LIDAR Classification (comma delimited).



Thanks in advance.

570829464_LidarData.csv

[guran]

Command PEDIT
choose MULTIPLE
select everything
then JOIN
and enter a FUZZ distance (size of the gaps where the lines are broken)

[3dwannab]

Thanks but these contours are generated from the lidar data and aren't polylines. They are part of the surface style.

[BIGAL]

If its CIV3D can use exporttoautocad surface is one of the options to be converted so end up with plines.

[3dwannab]

Thanks BIGAL. Wouldn't that be the same as exporting the contours when I select the surface and choosing Extract from surface?



I was looking to see if there was a way fixing the surface in Civil 3d if that's possible. Seems strange to me that there doesn't seem to be a tool to fix this type of thing.

[BIGAL]

Its possibly a hang up from the fact that your data is grids so get little bow ties as 2 contours.

[3dwannab]

Thanks. I would assume this is a regular occurrence as this is the first lidar data I imported, so I was hoping for an easy fix.

[Pointdump]

I'm just not seeing anything that needs fixing. I tried 2 ways.

I put your CSV file into CloudCompare and saved as a LAS. After running the LAS file through ReCap, I created a surface in C3D.

Also added the CSV file to a suface in C3D.

How about a link to your drawing file. Use WeTransfer or DropBox, etc.
