# Draw a triangle ## Recommended Posts  Has anyone written a routine that draws a simp le right triangle, given the base and degree?

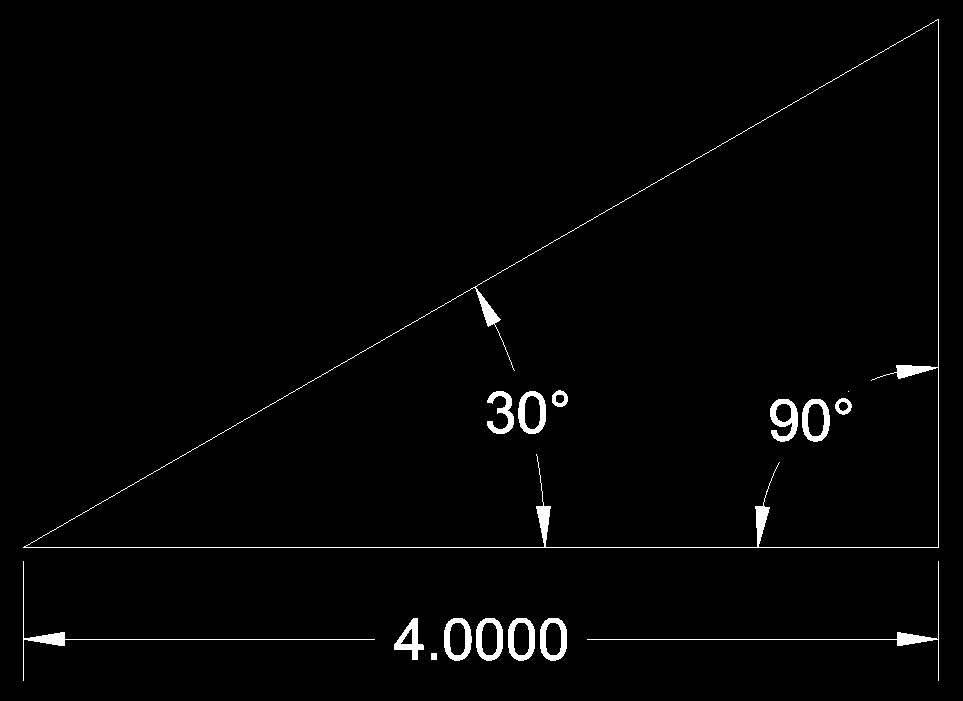

in the attached drawing, I would like to enter 4" then 30degrees and have the triangle drawn.

If possible I could then place it using the mouse? ##### Share on other sites  ```(defun c:triang ( / d a p p1 p2 )
(and
(not (initget 7))
(setq d (getdist "\nPick or specify base dimension : "))
(not (initget 7))
(setq a (getreal "\nSpecify angle on base point in decimal degrees : "))
(not (initget 1))
(setq p (getpoint "\nPick base point : "))
(setq p1 (polar p 0.0 d))
(setq p2 (inters p1 (polar p1 (* 0.5 pi) 1.0) p (polar p (cvunit a "degree" "radian") 1.0) nil))
(entmake
(list
(cons 0 "LWPOLYLINE")
(cons 100 "AcDbEntity")
(cons 100 "AcDbPolyline")
(cons 90 3)
(cons 70 (1+ (* 128 (getvar (quote plinegen)))))
(cons 38 0.0)
(cons 10 p)
(cons 10 p1)
(cons 10 p2)
(cons 210 (list 0.0 0.0 1.0))
)
)
)
(princ)
)```

• 1
##### Share on other sites  hmmm...Error: Invalid parameter.

looks like its going to do exactly what I need.

I'm not sure where it throws the error but it happens when it asks me to place the tringle?

##### Share on other sites  as an alternative using traditional trigonometry for fun to get the 3 points since it is a right angle triangle

```(defun tan (num)
(setq num (cvunit num "degree" "radian"))
(/ (sin num)(cos num))
)
(setq d (getdist "Get Distance"))
(setq a (getreal "Get Angle"))
(setq P1 (getpoint "Get insert Point"))
(setq P2 (mapcar '+ (list d 0 0) P1))
(setq P3 (mapcar '+ (list 0 (* d (tan a)) 0) P2))```

then do the entmake as above

##### Share on other sites  I like using trig instead, I can read it better, but I'm still getting an error.

```(defun tan (num)
(setq num (cvunit num "degree" "radian"))
(/ (sin num)(cos num))
)

(defun c:triang ( / d a p p1 p2 p3)
(and
(not (initget 7))
(setq d (getdist "Get Distance"))
(setq a (getreal "Get Angle"))
(setq P1 (getpoint "Get insert Point"))
(setq P2 (mapcar '+ (list d 0 0) P1))
(setq P3 (mapcar '+ (list 0 (* d (tan a)) 0) P2))
(entmake
(list
(cons 0 "LWPOLYLINE")
(cons 100 "AcDbEntity")
(cons 100 "AcDbPolyline")
(cons 90 3)
(cons 70 (1+ (* 128 (getvar (quote plinegen)))))
(cons 38 0.0)
(cons 10 p1)
(cons 10 p2)
(cons 10 p3)
(cons 210 (list 0.0 0.0 1.0))
)
)
)
(princ)
)```

That is what I have, but it throws "Error: Invalid parameter."

I must be missing something

##### Share on other sites  28 minutes ago, Abrasive said:

I like using trig instead, I can read it better, but I'm still getting an error.

```(defun tan (num)
(setq num (cvunit num "degree" "radian"))
(/ (sin num)(cos num))
)

(defun c:triang ( / d a p p1 p2 p3)
(and
(not (initget 7))
(setq d (getdist "Get Distance"))
(setq a (getreal "Get Angle"))
(setq P1 (getpoint "Get insert Point"))
(setq P2 (mapcar '+ (list d 0 0) P1))
(setq P3 (mapcar '+ (list 0 (* d (tan a)) 0) P2))
(entmake
(list
(cons 0 "LWPOLYLINE")
(cons 100 "AcDbEntity")
(cons 100 "AcDbPolyline")
(cons 90 3)
(cons 70 (1+ (* 128 (getvar (quote plinegen)))))
(cons 38 0.0)
(cons 10 p1)
(cons 10 p2)
(cons 10 p3)
(cons 210 (list 0.0 0.0 1.0))
)
)
)
(princ)
)```

That is what I have, but it throws "Error: Invalid parameter."

I must be missing something

Works here: • 1
##### Share on other sites  Works fine here as well.

Nice LISP.

• 1
